FEULING OIL PUMP CORP. Cam Kit - Race Series - Harley-Davidson '17-'24 - M8 1453

FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087

Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

HP+ kits come with HP+ lifters and RACE SERIES kits come with RACE SERIES lifters

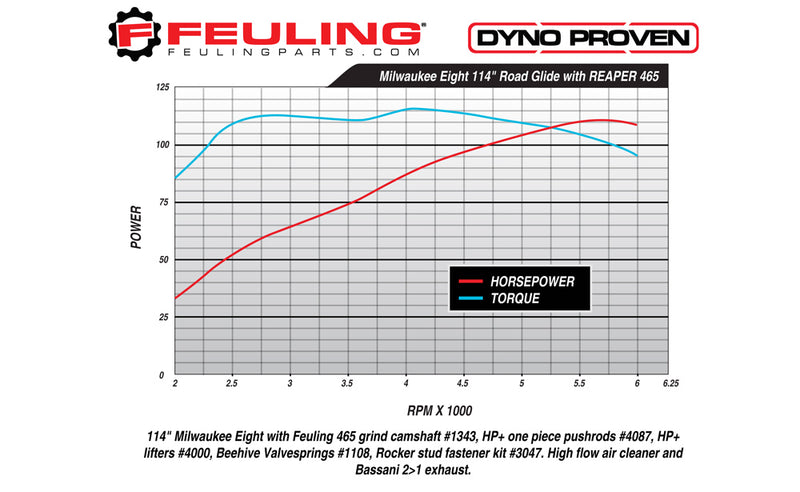

465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression.

Cam Part # 1343 RPM range 1,850 - 5,950. Grind: 465

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .445 4 BTDC 23 ABDC 207 .100 99.5
Exhaust .465 50 BBDC 6 ATDC 236 .100 112
RPM range: 1,850 - 5,950 Grind: 465 Overlap: 10

RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.

Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

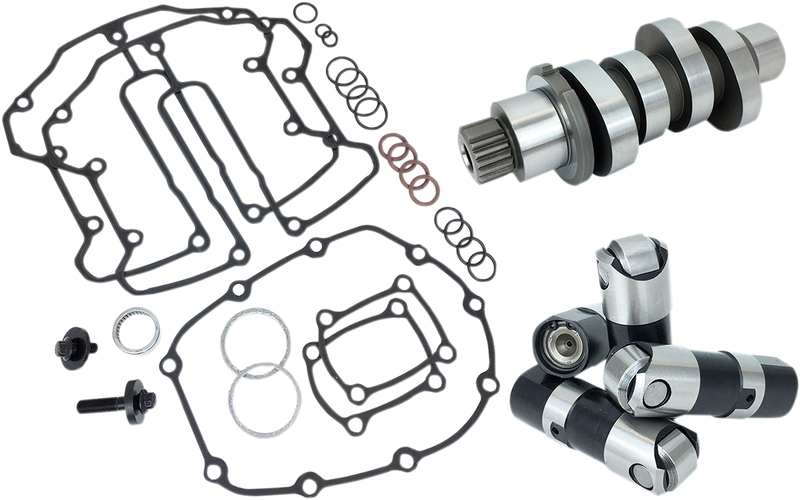

• Include camshafts, lifters and a cam installation kit that includes the cam bearing, cam/crank hardware
• Kit also includes gasket/O-ring kit that allows installation of Feuling Heavy-Duty HP+ .0165" wall one-piece pushrods or factory one-piece pushrods
• Due to the unstable nature of this 4-valve engine design with one rocker arm activating two valve springs, Feuling highly recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.


  NOTE: Includes Race Series® lifters
  NOTE: Use of performance valve springs is not required but may result in a quieter smoother running valvetrain.
  Substantial gains above 2800 rpm when compared to stock.
  RPM Range: 1850-5950.
  Overlap: 10.
