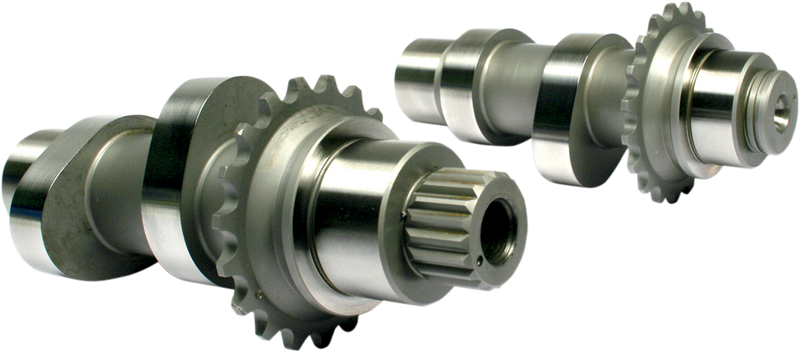

FEULING OIL PUMP CORP. Chain Drive Reaper Conversion Cam - 543 Series - Harley-Davidson '99-'06 - 1015
543 CAMS - The Freeway Flyer, a great camshaft for those who want more top end power than our 525 cam without sacrificing low end torque. Extremely smooth cam lobe layout maintains quiet valve-train and produces the smoothest cruise power band available. Excellent bolt in camshaft for stock to mild 96, 103, 106 and 107 engines and works well in 88 & 95 engines. This cam is easy starting, increases throttle response and fuel mileage. Responds well to increased compression ratio, performance exhaust and a high flow air cleaner. Performance valve springs are required on 99-04 engines and performance pushrods and lifters are recommended but not required. Feulings go to cam for 96 and 103 engines. RPM 1,900 - 6,000
UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

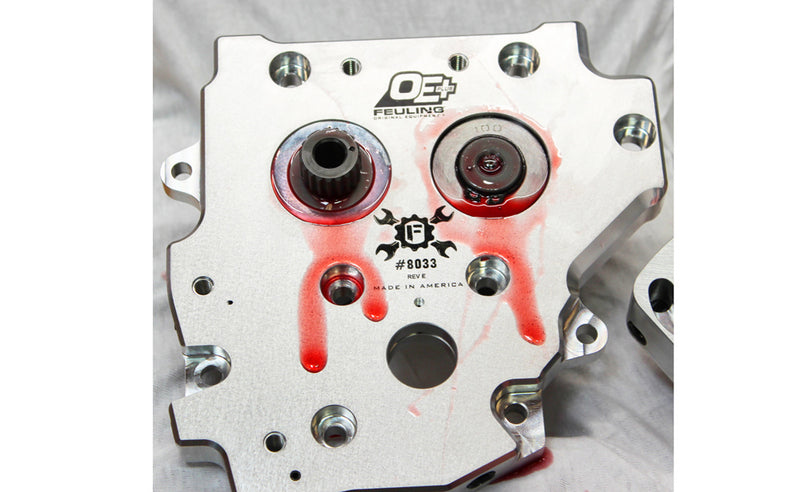

Conversion camshafts for 99-06 Twin Cam engines utilize the 99-06 inner cam journals with the 07-16 outer cam journals allowing the use of the 07-16 camplates, oil pump, hydraulic chain tensioners and chain drive system.
*Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the 07-17 camplate/oil pump
- Offers more power than the 525 cams without sacrificing low end torque
- Extremely smooth cam lobe layout maintains quiet valve train and produces the smoothest cruise power band available
- Excellent bolt-in camshaft for stock to mid 96" and 103" engines and works well in 88" and 96" engines
- Cam is easy starting, increases throttle response and fuel mileage
- Responds well to increased compression ratio, performance exhaust and a high-flow air cleaner
- 1900-6000 RPM power range
- Performance valve springs are required on '99-'04 engines and performance pushrods and lifters are recommended but not required.
NOTE: Conversion cams are a hybrid, with early '99-'06 inner cam journals and late '07-'17 style hydraulic tensioners, chains, sprockets and spacers (sold separately).
NOTE: Conversion cams are a hybrid, with early '99-'06 inner cam journals and late '07-'17 style hydraulic tensioners, chains, sprockets and spacers (sold separately).
Fitment Guide
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI | - | - |
| 2006 | Harley-Davidson | Street Glide FLHX | - | - |
| 2006 | Harley-Davidson | Street Glide EFI FLHX | - | - |
| 2006 | Harley-Davidson | Softail Heritage FLST | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe EFI FLSTNI | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2004-2005 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2004-2005 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004-2005 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2003-2006 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2001-2006 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2001-2006 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2001-2006 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2001-2006 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2001-2006 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2001-2006 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI | - | - |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2000-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 2000-2006 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 2000-2006 | Harley-Davidson | Softail Standard FXST | - | - |
| 2000-2006 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 2000-2006 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 2000-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
| 1999-2006 | Harley-Davidson | Road King FLHR | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1999-2006 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 1999-2006 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1999-2006 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 1999-2005 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1999-2005 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1999-2005 | Harley-Davidson | Low Rider FXDL | - | - |
| 1999-2005 | Harley-Davidson | Super Glide FXD | - | - |
| 1999-2002 | Harley-Davidson | Road Glide FLTR | - | - |
| 1999-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
Specs
| PRODUCT NAME | CAMSHAFT |
| TYPE | CHAIN CONVERSION |
| APPLICATION | EXHAUST / INTAKE |
| MODEL | REAPER |
| GRIND | 543 SERIES |
| INTAKE OPEN | 15° |
| INTAKE CLOSE | 43° |
| INTAKE LIFT | 0.543" |
| INTAKE DURATION | 238° |
| EXHAUST LIFT | 0.574" |
| EXHAUST DURATION | 248° |
| EXHAUST OPEN | 56° |
| EXHAUST CLOSE | 12° |
| UNITS | PAIR |
| RIDING STYLE | STREET |
