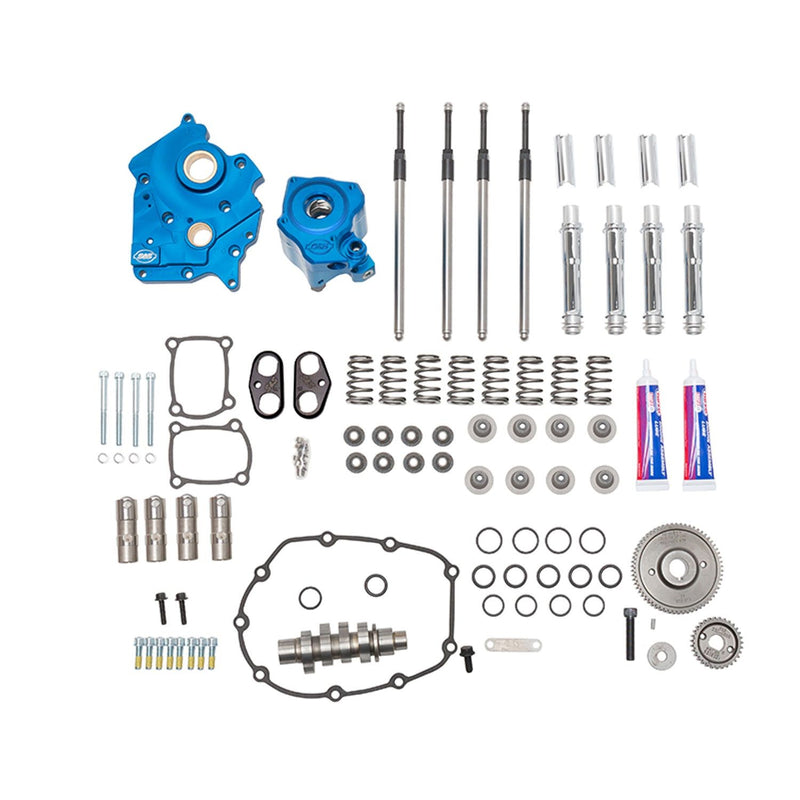

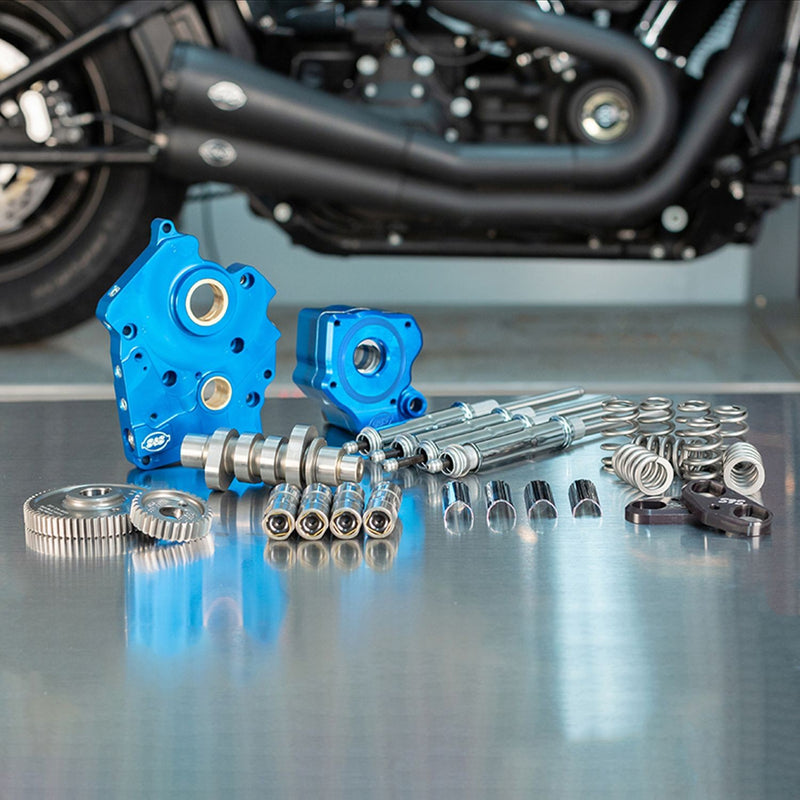

S&S CYCLE Gear Drive 540G Cam Chest kit with Chrome Pushrod Tubes for Water Cooled 2017-up M8 Models 310-1117

Oil Pump/Cam Plate

• Precision Machined from Billet Aluminum
• Blue Anodized Finish
• Passage Plugs Removeable for servicing
• Independant Scavenge Sections for Flywheel Cavity and Cam Chest
• Debris Screens in both scavenge pickups
• Magnet in Cam Chest to help to stop debris from entering oil pump
• Increased Flow Capacity on both Feed and Scavenge side
• Adjustable Pressure Relief Valve is adjustable with unit installed in engine

Pushrods

• Quickee Pushrods with brilliant show chrome pushrod tubes

Precision Tappets

• Hand assembled to exacting tolerances
• Reduced valve train noise from start up to shut down
• Close tolerances for low leak down rates
• Fast pump up and superior high rpm performance

Tappet Cuffs

• Hard Anodized Black Coating
• Billet Aluminum Construction
• Stronger than Stock Material eliminates Distortion
• Improve tappet stability in high lift and high rpm situations

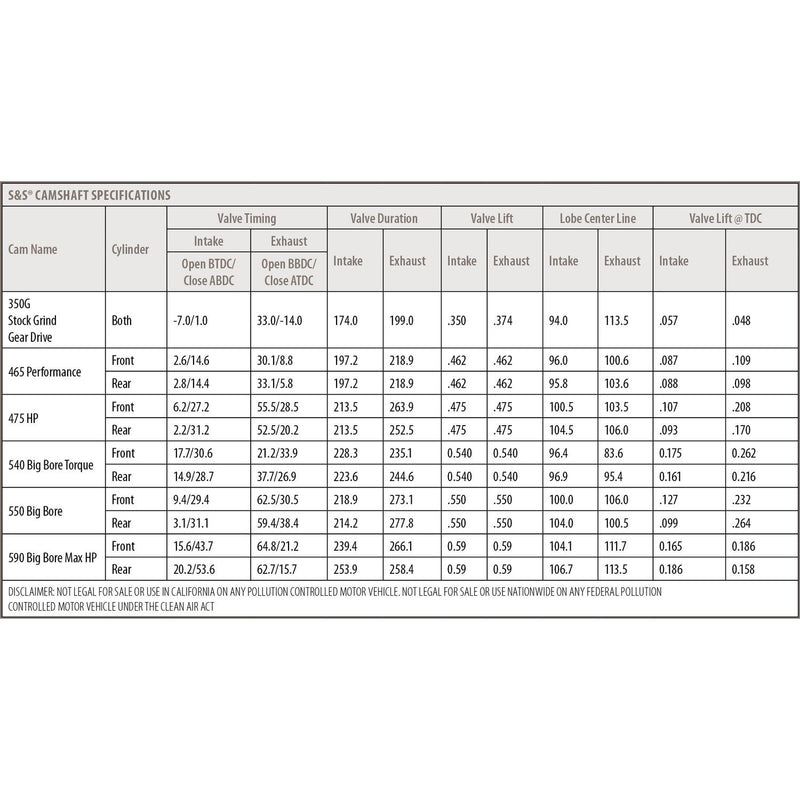

Camshaft

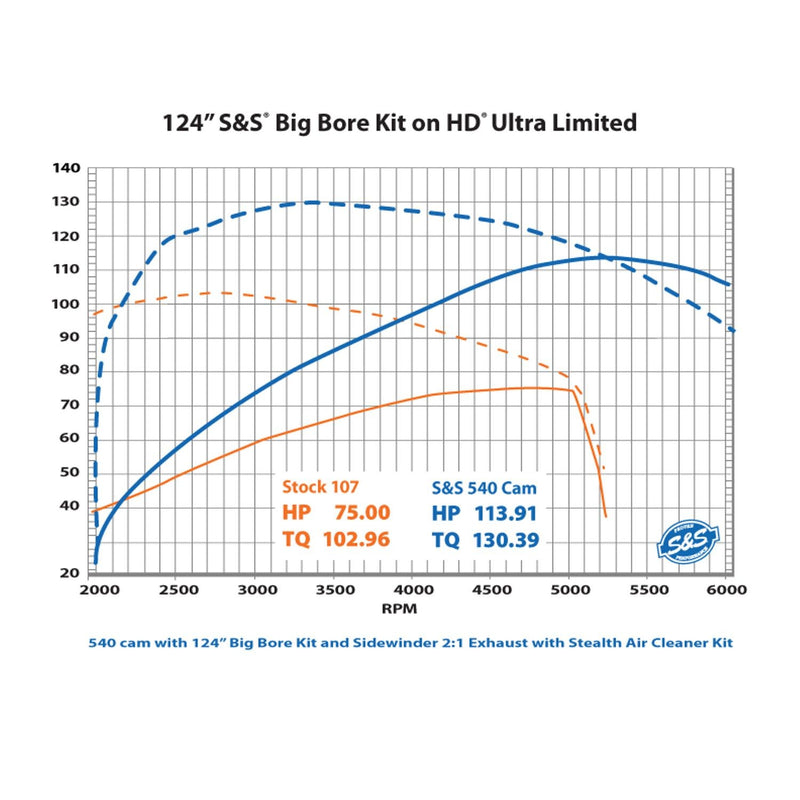

• S&S 540 Cam - Designed for acceleration torque in 124 and larger engines
• 540 cam power band further enhances massive torque output of our popular 4.25" Big Bore Kits
• Gear Drive Kits provide improved cam timing accuracy and eliminate the stock cam chain tensioner
• Gear Drive kits include outer Drive Gears
• Includes all gaskets, bearings, and hardware required for installation

Valve Springs

• High Performance Conical Single Wire Spring
• includes: Springs, Top Collars, Keepers, Valve Seal/Bottom Collar
• Works with cams up to .605 lift
• Includes all gaskets, bearings, and hardware required for installation
• MADE IN USA

  NOTE: 540 kits are for touring bikes to add torque below 6000 RPM.
