FEULING OIL PUMP CORP. Valve Springs - '02-'20 Twin Cam 1205
FREE Shipping Over $99*
- FREE Shipping on orders over $99 -Excludes Bulky Items
- All prices are in Australian Dollars
- See delivery info below
FEULING HIGH LOAD premium performance BEEHIVE valve springs handle up to 750 lift camshafts. Designed for steep ramped large lift camshafts - These Feuling valve springs are made from premium stress relieved conical ovate wire with a nitrided surface heat treatment, shot-peened surface enhancements along with a Nano Peen polish. They have an extremely high level of fatigue life and are designed to handle the highest demands of performance engines with high lift, steep ramped camshafts. Dyno proven and track tested.
FEULING BEEHIVE valve springs use a much smaller and lighter weight retainer which drastically reduces the valve weight creating a much quicker revving and smoother motion than comparable dual valve springs.
FEULING HIGH LOAD springs allow up to 750 lift cams, no rocker box clearancing required.
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
Available for 5/16 and 7mm valves
FEULING BEEHIVE valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.

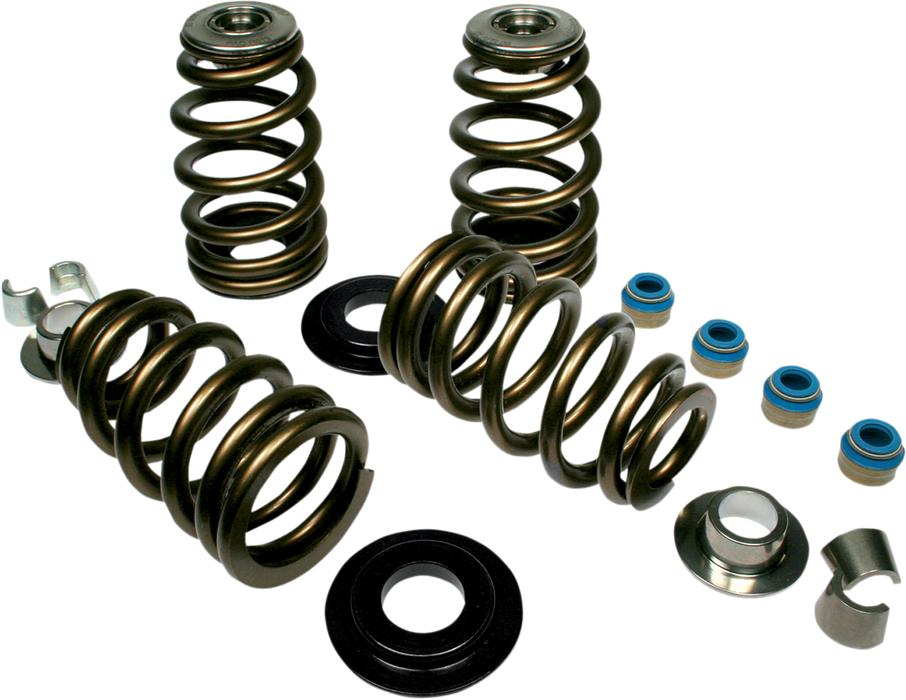

Kits include: FEULING HIGH LOAD BEEHIVE valve springs, lightweight 10 DegreeTitanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat treated chrome moly spring seats, seat shims and valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.
Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Fit up to 750 Lift Camshafts
- SEAT Lbs. / INSTALLED HEIGHT
- 217 Lbs @ 1.789 (0.574 Lift)
- 215 Lbs @ 1.800 (0.585 Lift)
- 208 Lbs.@ 1.819 (0.604 Lift)
- 200 Lbs @ 1.845 (0.630 Lift)
- 185 Lbs @ 1.900 (0.685 Lift)
- 170 Lbs @ 1.935 (0.720 Lift)
- 415 Lbs @ 1.215 OPEN HEIGHT
- Coil Bind @ 1.125
Feuling does not recommend tuning beyond stock emissions standards.
FITS:
Twin Cam 05-17, XL 04-17, XR 1200 09-17, 7 Degree, 7mm valve stem with stock triple keeper groove - 200+ Lbs Springs, Ti Retainers, Seats, Seals, Keepers, seat shims
Fitment Guide
| 2018-2020 | Harley-Davidson | Iron 1200 XLNS | - | - |
| 2018-2019 | Harley-Davidson | Forty-Eight Special XLXS | - | - |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX | - | - |
| 2015-2016 | Harley-Davidson | Road Glide Special FLTRXS | - | - |
| 2015-2016 | Harley-Davidson | Electra Glide Ultra Classic Low FLHTCUL | - | - |
| 2015-2016 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL | - | - |
| 2015-2016 | Harley-Davidson | Freewheeler FLRT | - | - |
| 2014-2017 | Harley-Davidson | SuperLow 1200 XLT | - | - |
| 2014-2016 | Harley-Davidson | Street Glide Special FLHXS | - | - |
| 2013-2017 | Harley-Davidson | Breakout FXSB | - | - |
| 2012-2017 | Harley-Davidson | Softail Slim FLS | - | - |
| 2012-2016 | Harley-Davidson | Switchback FLD | - | - |
| 2012-2016 | Harley-Davidson | Seventy-Two XLV | - | - |
| 2011-2019 | Harley-Davidson | 883 SuperLow XLL | - | - |
| 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2011-2013, 2016 | Harley-Davidson | Road Glide Ultra FLTRU | - | - |
| 2011-2013 | Harley-Davidson | Blackline FXS | - | - |
| 2010-2020 | Harley-Davidson | Forty-Eight XLX | - | - |
| 2010-2016 | Harley-Davidson | Electra Glide Ultra Limited FLHTK | - | - |
| 2010-2016 | Harley-Davidson | Fat Boy Lo FLSTFB | - | - |
| 2010-2013, 2015-2016 | Harley-Davidson | Road Glide Custom FLTRX | - | - |
| 2010-2011 | Harley-Davidson | Street Glide Trike FLHXXX | - | - |
| 2009-2020 | Harley-Davidson | Iron 883 XLN | - | - |
| 2009-2016 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF | - | - |
| 2008-2011 | Harley-Davidson | Softail Rocker C FXCWC | - | - |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB | - | - |
| 2008-2009 | Harley-Davidson | Softail Rocker FXCW | - | - |
| 2007-2016 | Harley-Davidson | Road King EFI FLHR | - | - |
| 2007-2016 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 2007-2012 | Harley-Davidson | 1200 Nightster XLN | - | - |
| 2007-2010 | Harley-Davidson | Softail Custom EFI FXSTC | - | - |
| 2007-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2007-2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2007 | Harley-Davidson | Sportster 1200 XL 50 | - | - |
| 2006-2017 | Harley-Davidson | Street Bob FXDB | - | - |
| 2006-2016 | Harley-Davidson | Street Glide EFI FLHX | - | - |
| 2006-2011 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006-2010 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | Street Glide FLHX | - | - |
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2006 | Harley-Davidson | Super Glide FXD35 | - | - |
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI | - | - |
| 2006 | Harley-Davidson | Softail Heritage FLST | - | - |
| 2005-2017 | Harley-Davidson | Softail Deluxe EFI FLSTNI | - | - |
| 2005-2017 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2005-2017 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2005-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2005-2010 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2005-2009 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2005-2009 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 2005-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2005-2007 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI | - | - |
| 2005-2007 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2005-2007 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2005-2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2005-2007 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2005-2007 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2005-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2005-2006 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2005-2006 | Harley-Davidson | Softail Standard FXST | - | - |
| 2005-2006 | Harley-Davidson | Road King FLHR | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 2005-2006 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 2005-2006 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 2005-2006 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 2005-2006 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2005-2006 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 2005-2006 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | Low Rider FXDL | - | - |
| 2005 | Harley-Davidson | Super Glide FXD | - | - |
| 2005 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 2005 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 2004-2019 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2004-2009 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2004-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 2004-2006 | Harley-Davidson | 883 Custom XLC | - | - |
| 2002-2013 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
Specs
| PRODUCT NAME | SPRING KIT |
| TYPE | VALVE |
| APPLICATION | INTAKE / EXHAUST |
| MODEL | HIGH-LOAD BEEHIVE |
| COLLAR MATERIAL | TITANIUM |
| MATERIAL | STEEL |
| STEM DIAMETER | 7.00 MM |
| SPRING LIFT | 0.750" / 0,750" |
| UNITS | KIT |
| RIDING STYLE | STREET |
