FEULING OIL PUMP CORP. Cylinder Head Breathers - Harley-Davidson '17-'24 - M8 3250

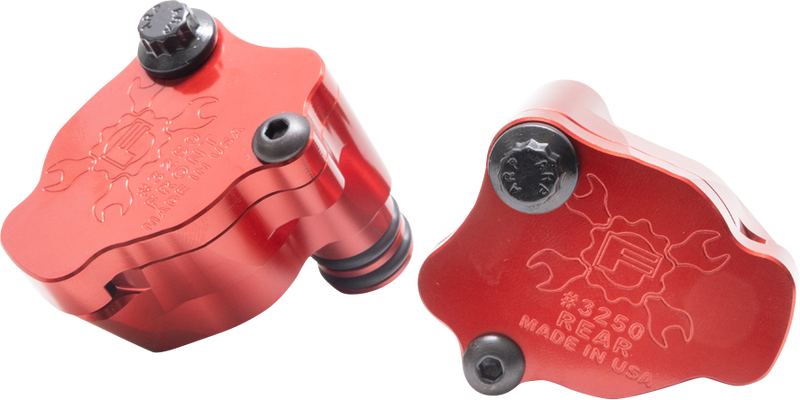

FEULING Cylinder head breathers for Milwaukee Eight engines. Machined from billet 6061 aluminum with square surfaces, promoting excellent umbrella valve sealing, longer main breather exit nipples with dual O-rings to promote better breather system sealing. Properly sized breather inlets and location for optimum engine breathing. Unique design maximizes breather volume and allows for easy serviceability. Breather bodies have multiple drain ports located on the inside floor, ports are chamfered on ID to allow easy drainage yet squared off on exits to deter filling from splash oil. Anodized Feuling red. Kits include: billet breather housings, billet covers, breather filter elements, umbrella valves and quality hardware.

FEULING breathers work, seal and you will find they hold an engine vacuum. Testing shown on a healthy engine will see 3-4 oz of oil in the sump and once the dipstick is removed another 3-4 oz will drain.

NOTE this test procedure can only be performed with a sealed engine meaning no external venting via dipstick or trans top cover.

• Breathers CAN be used with external venting via dipstick, trans cover and air cleaner.
• 1 Year warranty with option for an additional year if warranty form is filled out on website
• MADE IN THE USA
• Stock replacement for Milwaukee Eight engines Touring and Softail

  Note: Rocker Cover Gaskets purchased separately

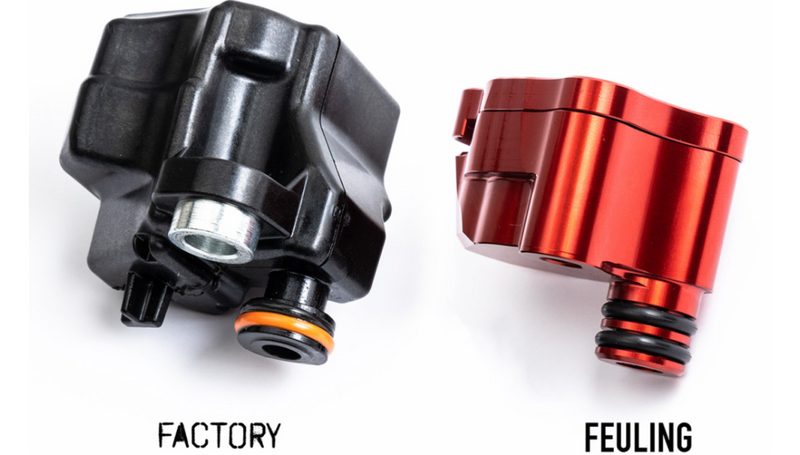

  NOTES: The Factory plastic OEM breathers can be problematic, we find the material easily distorts, especially after seeing excessive heat then the internal umbrella valve struggles to seal, causing oil carry over. Another issue found with the OEM breathers is cracked and or broken exit nipples which can be caused by heat distortion and or improper fit and poor installation.

  NOTE: Not for '23-'24 models with 121" VVT motors.

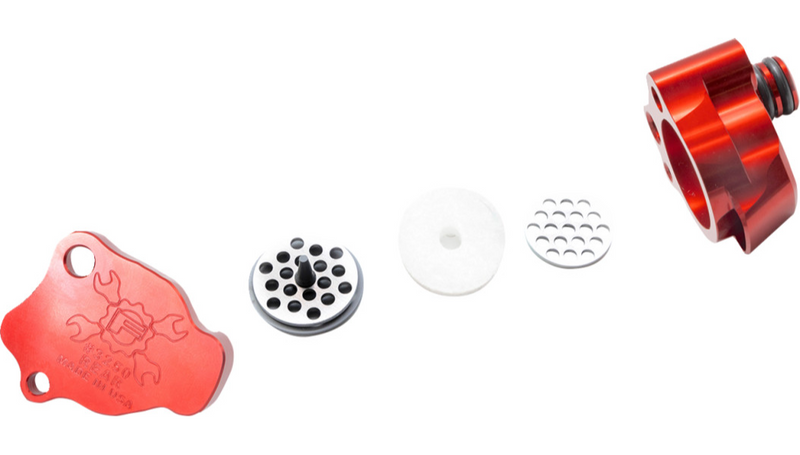

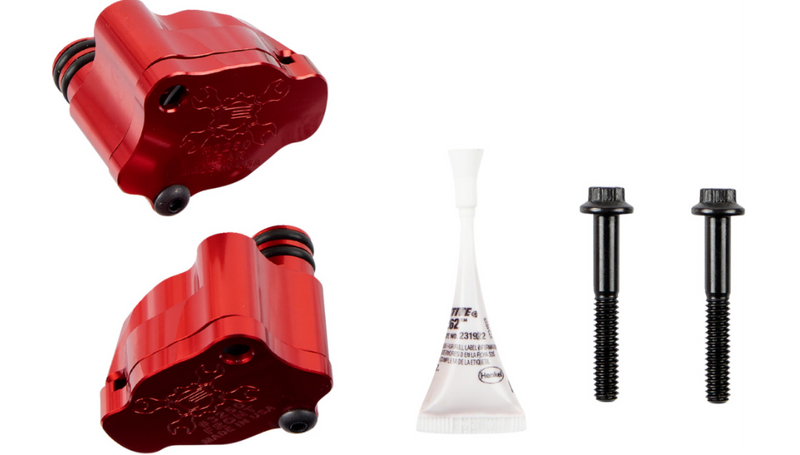

  Kit Includes:
  • Billet Breather Housings
  • Billet Covers
  • Breather Filter Elements
  • Umbrella Valves
  • Hardware

For needed gaskets see kit #2052

FITS:

Milwaukee Eight 17 - 23

Fitment Guide

Specs
