FEULING OIL PUMP CORP. Race Series Hydraulic Cam Chain Tensioner Conversion Kit - '99-'06 Twin Cam 7194
- All prices are in Australian Dollars
- Use shipping cost estimator below to get final cost delivered to your door - no additional charges.
- See delivery info below
FEULING RACE SERIES CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, Twin Cam 01-06, except 01 Touring and 06 Dyna engines, W/O cam sensor. (Delphi Ignition Systems)

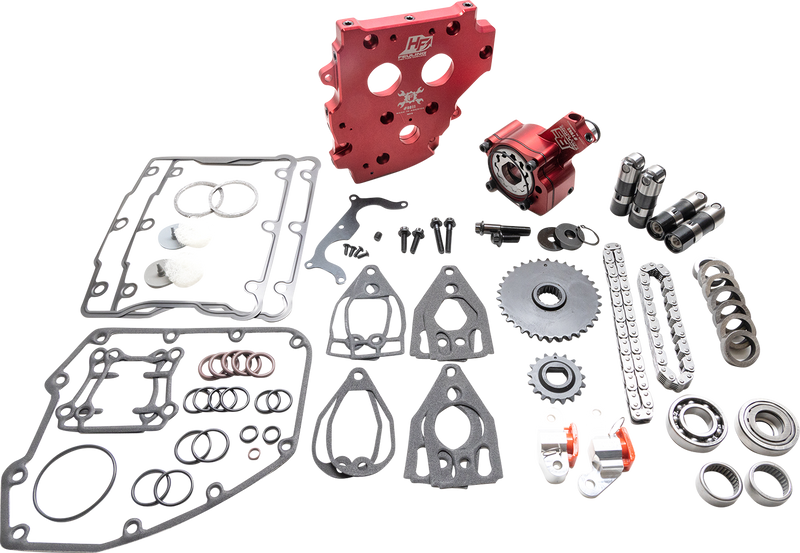

Kit includes the needed components to upgrade early 99-06 style mechanical spring tensioners cam chain drive systems to the late 07-17 hydraulic cam chain drive system using a hybrid camplate. This kit include a FEULING RACE SERIES billet oil pump, High Flow camplate, RACE SERIES full travel Lifters, FEULINGS billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, TIMKEN/FEULING bearings, needed gaskets, O-rings, ARP cam and crank hardware, Loctite and moly lube.
Note: Rocker box gasket kit included so the factory one piece pushrods can be reused
For Delphi equipped ignition system engines running the 34 tooth rear cam sprocket without the timing tab.
Kit designed to run the factory 00-06 style splined chain drive camshafts - Will NOT work on keyway camshafts or with conversion camshafts. Will NOT work on keyway camshafts or with conversion camshafts
See Feuling #3200 for replacement billet rocker box breather assemblies and or #4072 and #4073 if looking to upgrade to heavy duty one piece pushrods.
FITS:
Twin Cam 01-06, except 01 Touring and 06 Dyna engines (Delphi Ignition, no cam sensor), Kit designed for factory 00-06 style camshafts
- Kit includes the needed components to upgrade early '99-'06 style mechanical spring tensioner cam chain drive systems to the late '07-'17 hydraulic cam chain drive system
- Includes a Feuling Race Series billet oil pump, high flow camplate, Race Series full-travel lifters, Feuling’s billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, Timken®/Feuling bearings, needed gaskets, O-rings, ARP® cam, crank hardware, Loctite® and moly lube
- Made in the U.S.A
- Rocker box gasket kit included so the factory one-piece pushrods can be reused.
NOTE: Fits '01-'06 Twin Cam Delphi equipped ignition system engines without cam sensor with factory style '00-'06 splined chain drive camshafts. Will NOT work on keyway camshafts.
Fitment Guide
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI | - | - |
| 2006 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE2 | - | - |
| 2006 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE | - | - |
| 2006 | Harley-Davidson | Street Glide EFI FLHX | - | - |
| 2006 | Harley-Davidson | Street Glide FLHX | - | - |
| 2006 | Harley-Davidson | Softail Heritage FLST | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe EFI FLSTNI | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2005 | Harley-Davidson | Screamin' Eagle Electra Glide FLHTCSE2 | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE | - | - |
| 2005 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2004-2005 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004-2005 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2004 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE2 | - | - |
| 2004 | Harley-Davidson | Screamin' Eagle Electra Glide FLHTCSE | - | - |
| 2003 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE | - | - |
| 2003 | Harley-Davidson | Screamin' Eagle Road King FLHRSE-I2 | - | - |
| 2002-2006 | Harley-Davidson | Road Glide FLTR | - | - |
| 2002-2006 | Harley-Davidson | Road King FLHR | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 2002-2006 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 2002-2006 | Harley-Davidson | Road King EFI FLHR | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2002-2006 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Police FLHTP | - | - |
| 2002-2006 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 2002 | Harley-Davidson | Screamin' Eagle Road King FLHRSE-I | - | - |
| 2002 | Harley-Davidson | Wide Glide FXDWG3 | - | - |
| 2001-2006 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2001-2006 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2001-2006 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2001-2006 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2001-2006 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2001-2006 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001 | Harley-Davidson | Wide Glide FXDWG2 | - | - |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2000-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 2000-2006 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 2000-2006 | Harley-Davidson | Softail Standard FXST | - | - |
| 2000-2006 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 2000-2006 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 2000-2005 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2000-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1999-2005 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1999-2005 | Harley-Davidson | Low Rider FXDL | - | - |
| 1999-2005 | Harley-Davidson | Super Glide FXD | - | - |
| 1999-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
Specs
| PRODUCT NAME | TENSIONER CONVERSION KIT |
| TYPE | CAMSHAFT |
| MODEL | RACE SERIES® |
| UNITS | KIT |
| RIDING STYLE | STREET |
