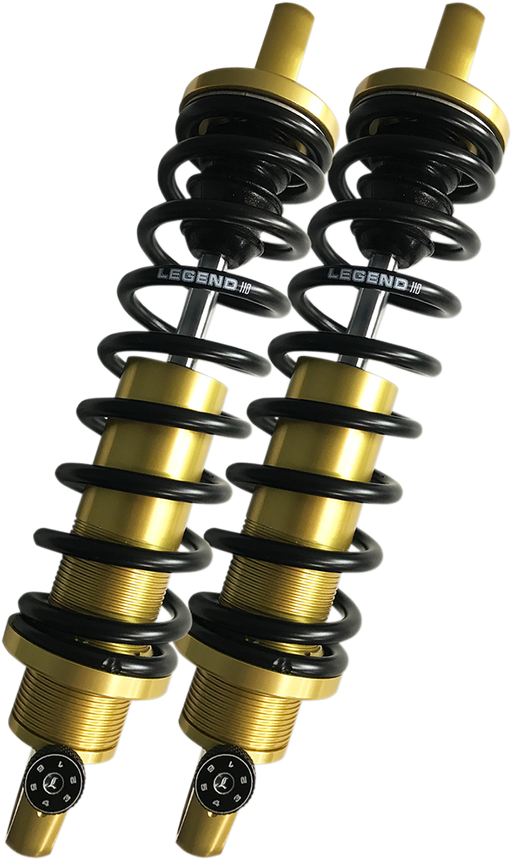

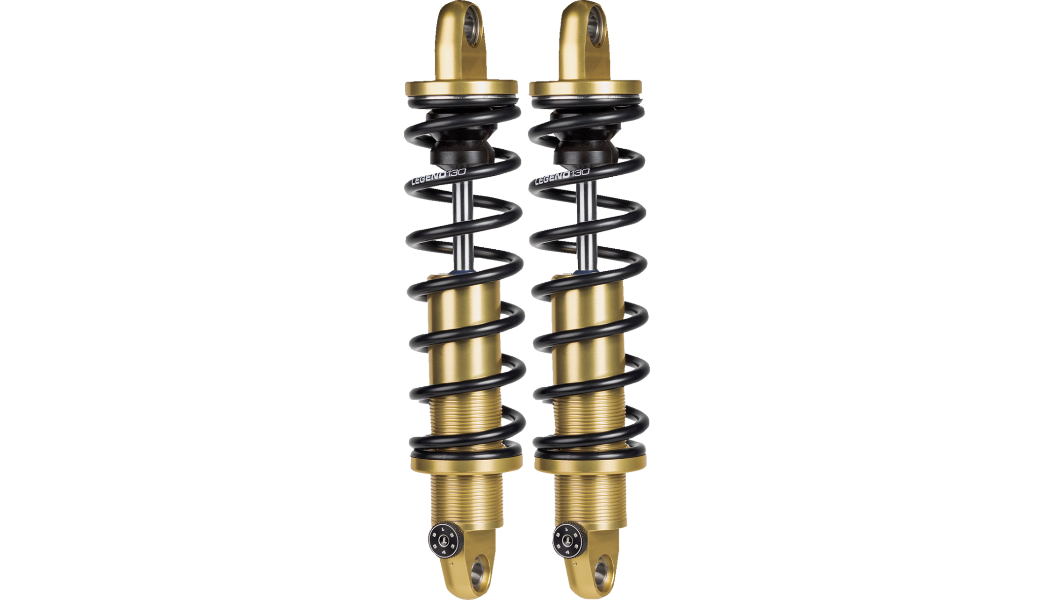

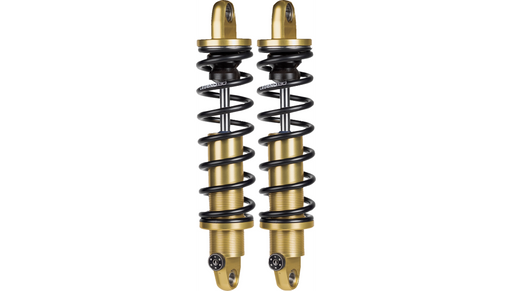

LEGEND SUSPENSION REVO-A Adjustable XL Coil Suspension - Gold - Standard - 12" - '04-'22 XL - 1310-1747
SKU 1310-1747
Original price
$0
Original price
$1,759.95
-
Original price
$1,759.95
Original price
Current price
$1,759.95
$1,759.95
-
$1,759.95
Current price
$1,759.95
FREE Shipping Over $99*
In Stock At Supplier Warehouse - 2-3 Week Delivery -
18 Naru Street Unit 1 Chinderah, New South Wales 2487
+61256712902
- FREE Shipping on orders over $99 -Excludes Bulky Items
- All prices are in Australian Dollars
- See delivery info below
- Available in Black, Gold, and Clear Type III hard coat anodize
- Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
- Adjusts by hand, no tools needed
- Available in 12", 13", and 14", standard or heavy-duty applications
- Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
- All the benefits of the REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
- Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
- Light to heavy riders can fine-tune ride preference
- Aggressive to casual riding styles can tune to desired quality or personal preference
- Made by hand in Sturgis, SD USA
- P65 WARNING: Cancer and Reproductive Harm
NOTE: Heavy Duty application is recommended for 500 lb+ rider and passenger total weight. Does not fit Sportster Super Low. Does not fit Sportster S (RH1250). Does not fit Sportster Nightster (RH975).
Fitment Guide
| 2018-2021 | Harley-Davidson | Iron 1200 XLNS | - | - |
| 2018-2019 | Harley-Davidson | Forty-Eight Special XLXS | - | - |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX | - | - |
| 2014-2017 | Harley-Davidson | SuperLow 1200 XLT | - | - |
| 2012-2016 | Harley-Davidson | Seventy-Two XLV | - | - |
| 2011-2019 | Harley-Davidson | 883 SuperLow XLL | - | - |
| 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2010-2022 | Harley-Davidson | Forty-Eight XLX | - | - |
| 2009-2022 | Harley-Davidson | Iron 883 XLN | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2007-2012 | Harley-Davidson | 1200 Nightster XLN | - | - |
| 2007-2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2007 | Harley-Davidson | Sportster 1200 XL 50 | - | - |
| 2006-2011 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006-2010 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2005-2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2005-2007 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2004-2019 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2004-2009 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2004-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 2004-2006 | Harley-Davidson | 883 Custom XLC | - | - |
Specs
| PRODUCT NAME | SHOCK ABSORBER |
| TYPE | COILOVER TWIN-TUBE |
| MODEL | REVO-A |
| DAMPING METHOD | DEFLECTIVE DISC |
| DUTY | STANDARD |
| COLOR/FINISH | GOLD / ANODIZED |
| MATERIAL | HARD ANODIZED MACHINED ALUMINUM |
| EXTENDED LENGTH | 12.00" |
| RESERVOIR LOCATION | INTERNAL |
| ADJUSTMENT TYPE | ADJUSTABLE REBOUND DAMPING |
| MOUNTING POSITION | REAR |
| UNITS | PAIR |
| RIDING STYLE | STREET |
