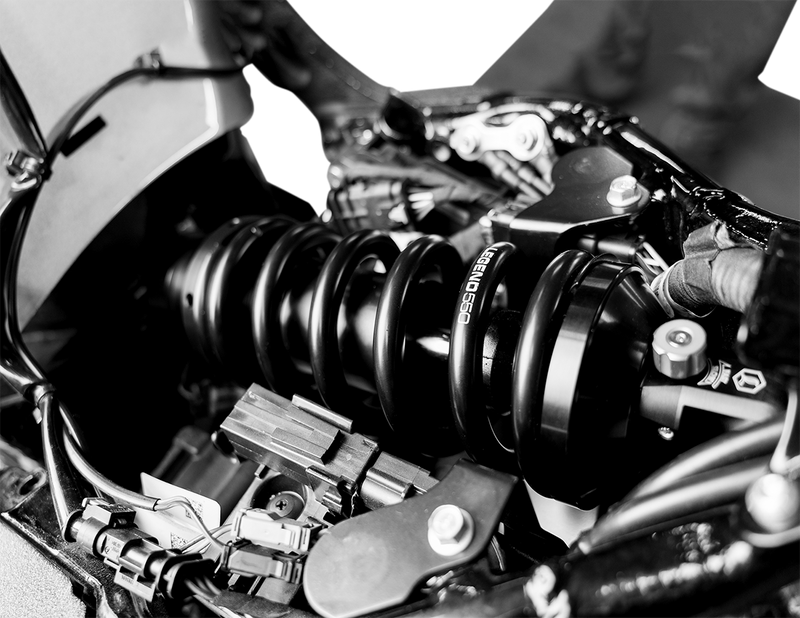

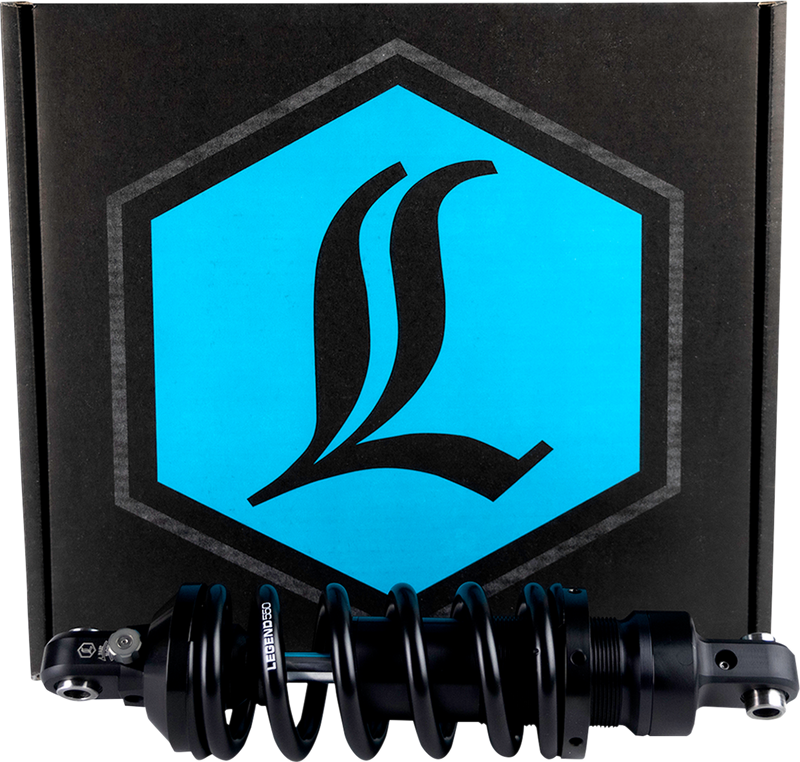

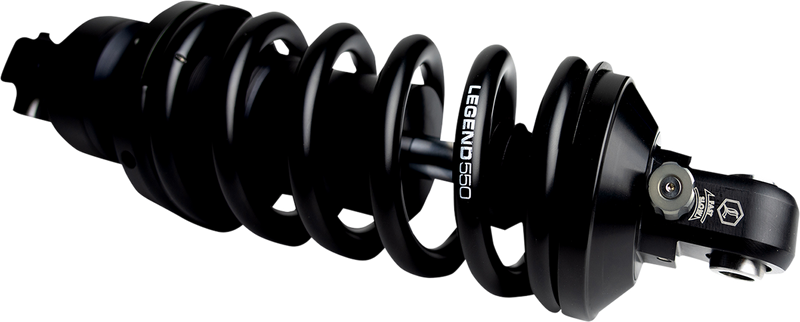

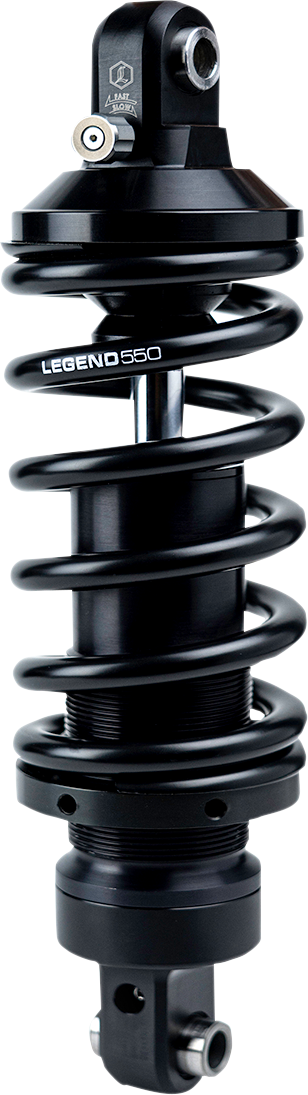

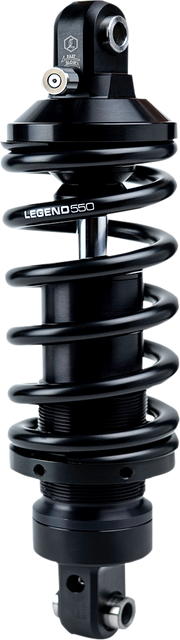

LEGEND SUSPENSION REVO-A Mono Shock - 13" - Heavy Duty - '15+ M-Eight Softail Models - 1310-2250

• Revo-A coil designed specifically for M-8 Softail models
• Available in 12.5", 13", and 13.5", standard or heavy-duty applications
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Legend's touring specific spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
• Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
• Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized, 46 mm billet aluminum mono tube design utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation that utilizes the OEM mounting hardware
• Included preload wrench makes adjusting easy
• Sold as Mono Shock (1 shock only)
• Designed for optimum performance with the Legend Axeo front suspension
• Made by hand in Sturgis, SD, USA
• P65 WARNING: Cancer and Reproductive Harm


   NOTE:
  • Heavy Duty applications recommended for 350lb+ rider and passenger total weight. Heavy-duty is suggested if the majority of your riding is 2 up with a passenger and/or gear.
  • Standard length is 13" for FLHC/FXFB Models. Standard length for other models 12.6".
