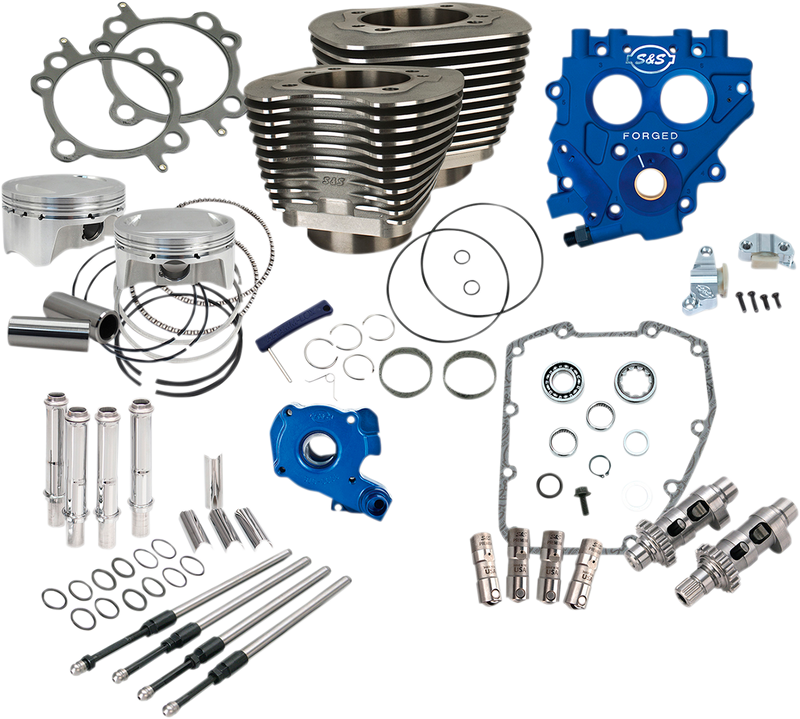

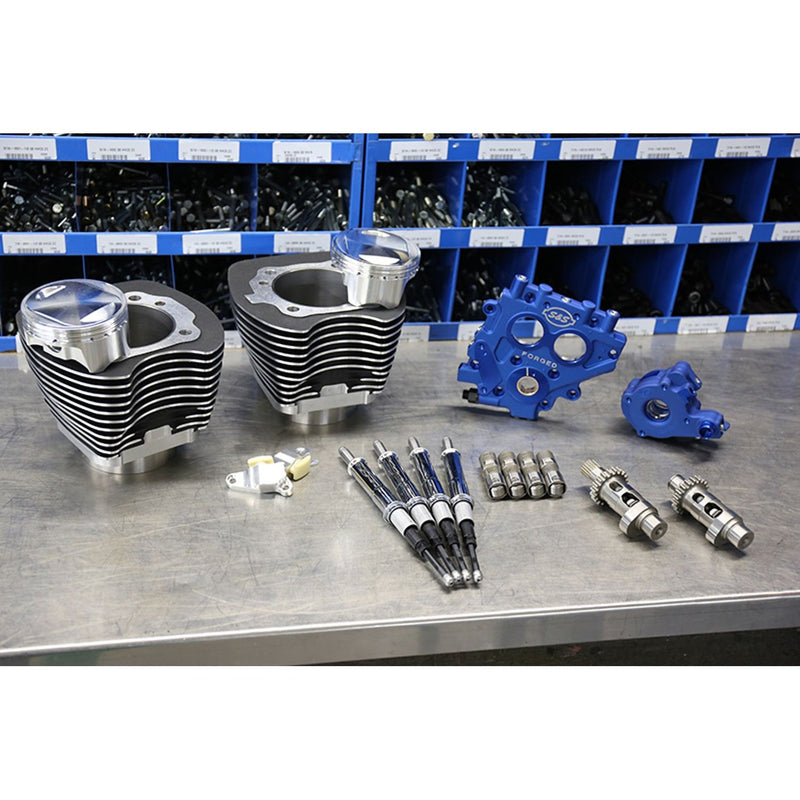

S&S CYCLE 100" Power Package for HD® Twin Cam 88® Models with 585 Easy Start® Chain Drive Cams - Wrinkle Black - 330-0664

The 100" Power Package is the ideal combination of performance and savings to transform your Twin Cam HD without breaking the bank. Bump the early Twin Cam from 88ci to 100ci as well as adding matched cams/cam plate/oil pump and everything else a high performance cam chest needs to reliably make big power.

Specifications

• 4" Bore bolt on cylinder and piston kit
• 10.5:1 Compression
• Wrinkle Black Finish
• S&S 585 Easy Start Chain Drive Cams
• TC3 Oil Pump
• TC3 Cam Plate
• S&S cam chain tensioners
• Quickee Adjustable Pushrods with Tubes
• S&S Precision Tappets

Features & Benefits

• Low friction Ductile Cast Iron liner
• 10.5:1 Compression
• Bolts in. No machining, balancing, or splitting the crankcases
• Upgrade TC88 to 100 cu inches
• Cylinders fit to pistons- No machining required
• All parts required to upgrade to gear drive cam or hydraulic tensioners in one easy to order part number
• Engineered package to deliver the best bolt in performance
• Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates

NOTES

• Not for '06 Dyna.
• Not compatible with S&S 79 cc Super Stock® heads.
• Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
• '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately) 900-0593
