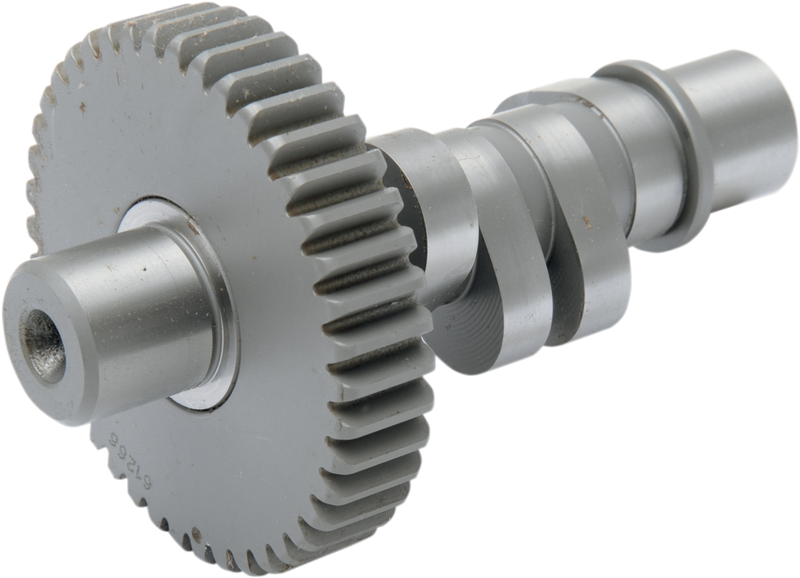

ANDREWS 7 Grind Camshaft - Harley-Davidson '78-'84 - 212539
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- You will get more mid-range and top-end power for your street or drag bike
- These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6000 rpm with stock valve springs
7 Grind Cam
- Upgraded version of #6 Grind Cam
- Great street cam for 84/88 inch strokers: maximum torque available from 2200 to 6500
NOTE: On late 77 and later engines, the pitch diameter and the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in sets only. Late 77 and later gear sets are identified by a circular grove machined in the outer face of the cam gear.
Intake Specs:
Open: 29 degrees
Close: 53 degrees
Duration at .053: 262 degrees
Valve lift: .510 in.
Pan: .535 in.
Exhaust Specs:
Open: 56 degrees
Close: 27 degrees
Duration at .053: 266 degrees
Valve Lift: .510 in.
Pan: .535 in.
Fitment Guide
| 1984 | Harley-Davidson | FLHX Electra Glide Special | - | - |
| 1983-1984 | Harley-Davidson | FXSB Low Rider - Belt | - | - |
| 1983 | Harley-Davidson | FLHTC Electra Glide Classic | - | - |
| 1983 | Harley-Davidson | FXDG Disc Glide | - | - |
| 1983 | Harley-Davidson | FXRT Sport Glide | - | - |
| 1983 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1982-1983 | Harley-Davidson | FXR Super Glide II | - | - |
| 1982-1983 | Harley-Davidson | Super Glide II FXRS | - | - |
| 1981-1983 | Harley-Davidson | FLTC Tour Glide Classic | - | - |
| 1981-1982 | Harley-Davidson | Electra Glide Classic FLH | - | - |
| 1981 | Harley-Davidson | FXEF Fat Bob | - | - |
| 1981 | Harley-Davidson | Electra Glide Heritage FLH | - | - |
| 1980-1984 | Harley-Davidson | FXWG Wide Glide | - | - |
| 1980-1983 | Harley-Davidson | FLT Tour Glide | - | - |
| 1980-1982 | Harley-Davidson | FXB Sturgis | - | - |
| 1980-1982 | Harley-Davidson | FLHS Electra Glide Sport | - | - |
| 1980 | Harley-Davidson | Tour Glide Classic FLTC | - | - |
| 1980 | Harley-Davidson | 1200 Electra Glide FLH | - | - |
| 1979-1980 | Harley-Davidson | 1200 Fat Bob FXEF | - | - |
| 1979-1980 | Harley-Davidson | 1200 Super Glide FXE | - | - |
| 1979-1980 | Harley-Davidson | Super Glide 80 FXE | - | - |
| 1979-1980 | Harley-Davidson | Fat Bob FXEF | - | - |
| 1979 | Harley-Davidson | Low Rider FXS | - | - |
| 1979 | Harley-Davidson | Electra Glide FLH | - | - |
| 1979 | Harley-Davidson | 1200 Low Rider FXS | - | - |
| 1978-1980 | Harley-Davidson | Electra Glide FL | - | - |
| 1978, 1981-1984 | Harley-Davidson | FXE Super Glide | - | - |
| 1978, 1980-1984 | Harley-Davidson | FLH Electra Glide | - | - |
| 1978, 1980-1982 | Harley-Davidson | FXS Low Rider | - | - |
| 1978 | Harley-Davidson | FX Super Glide | - | - |
Specs
| Product Name | Cam |
| Type | Gear |
| Application | Intake / Exhaust |
| Grind | 7 Series |
| Intake Lift | Shovel: 0.510" Pan: 0.535" |
| Intake Lift at TDC | Shovel: 0.206" Pan: 0.217" |
| Exhaust Lift | Shovel: 0.510" Pan: 0.535" |
| Exhaust Lift at TDC | Shovel: 0.186" Pan: 0.196" |
| Units | Each |
| Riding Style | Street |
