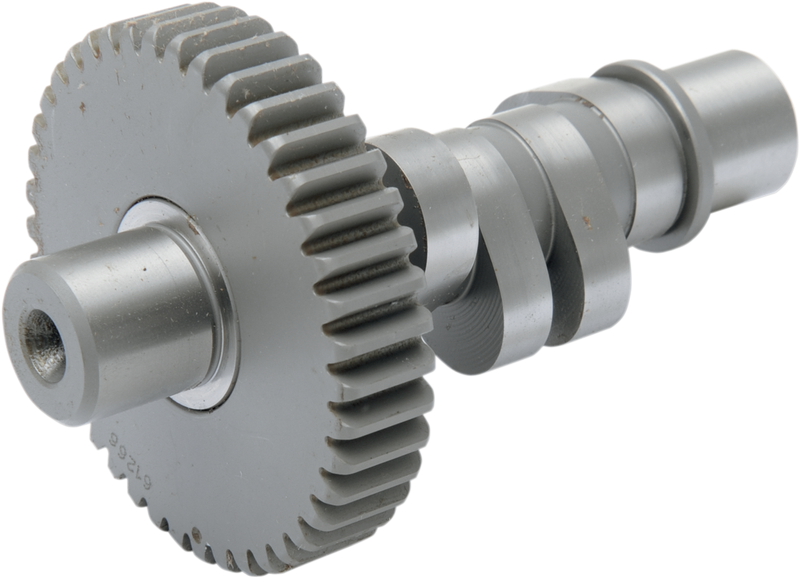

ANDREWS A2 Grind Cam - Harley-Davidson FL '48-'69 - 212260
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- You will get more mid-range and top-end power for your street or drag bike
- These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6000 rpm with stock valve springs
A2 Grind Cam
- Shovel-bolt in (except 80-81) no head work
- More mid-range and hi-end power
NOTE: On late 77 and later engines, the pitch diameter and the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in sets only. Late 77 and later gear sets are identified by a circular grove machined in the outer face of the cam gear.
Intake Specs:
Open: 19 degrees
Close: 43 degrees
Duration at .053: 242 degrees
Valve lift: .450 in.
Pan: .470 in.
Exhaust Specs:
Open: 50 degrees
Close: 18 degrees
Duration at .053: 248 degrees
Valve Lift: .450 in.
Pan: .470 in.
Fitment Guide
| 1965-1969 | Harley-Davidson | Electra Glide FL | - | - |
| 1965-1969 | Harley-Davidson | 1200 Electra Glide FLH | - | - |
| 1958-1964 | Harley-Davidson | Duo Glide FL | - | - |
| 1958-1964 | Harley-Davidson | FLH Duo-Glide | - | - |
| 1953-1957 | Harley-Davidson | Hydra Glide EL | - | - |
| 1949-1952 | Harley-Davidson | EL | - | - |
| 1949-1951, 1953-1957 | Harley-Davidson | Hydra Glide FL | - | - |
| 1948 | Harley-Davidson | FL | - | - |
Specs
| Product Name | Cam |
| Type | Gear |
| Application | Exhaust / Intake |
| Grind | A2 |
| Intake Lift | Shovel: 0.450" Pan: 0.470" |
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
| Exhaust Lift | Shovel: 0.450" Pan: 0.470" |
| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
| Units | Each |
| Riding Style | Street |
