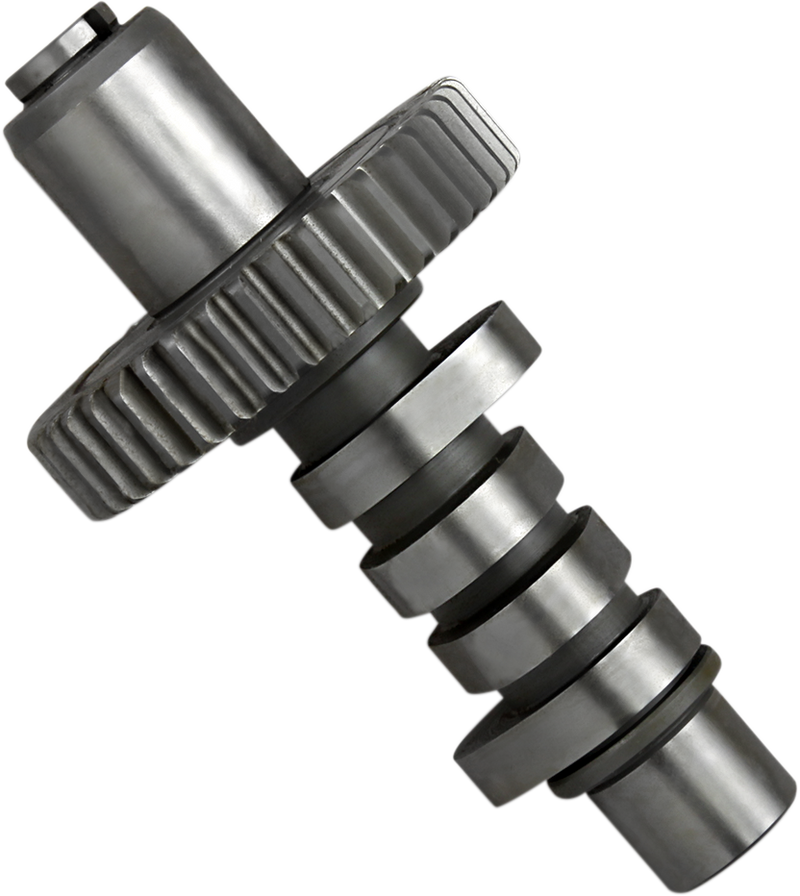

ANDREWS Cam - AB Grind - Shovelhead - Harley-Davidson '78-'84 - 212335
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- You'll get more mid-range and top-end power for your street or drag bike
- These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs.
AB GRIND CAMS
- Bolt-in street cams have an A intake plus a long duration exhaust for cooler running and high-end power
- Suitable for hydraulic lifters
INTAKE:
- Opens: 21 degrees
- Closes: 50 degrees
- Duration @ .053: 244 degrees
- Valve Lift Shovel: .450
- Pan: .470
EXHAUST:
- Opens: 43 degrees
- Closes: 26 degrees
- Duration @ .053: 256 degrees
- Valve Lift Shovel: .450
- Pan: .470
NOTE:
- On late 77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in sets only. Late 77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Included Items:
(1) Camshaft
Fitment Guide
| 1984 | Harley-Davidson | FLHX Electra Glide Special | - | - |
| 1983-1984 | Harley-Davidson | FXSB Low Rider - Belt | - | - |
| 1983 | Harley-Davidson | FXDG Disc Glide | - | - |
| 1983 | Harley-Davidson | FXRT Sport Glide | - | - |
| 1983 | Harley-Davidson | FLHTC Electra Glide Classic | - | - |
| 1983 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1982-1984 | Harley-Davidson | FXWG Wide Glide | - | - |
| 1982-1983 | Harley-Davidson | FLTC Tour Glide Classic | - | - |
| 1982-1983 | Harley-Davidson | FXR Super Glide II | - | - |
| 1982-1983 | Harley-Davidson | FLT Tour Glide | - | - |
| 1982-1983 | Harley-Davidson | Super Glide II FXRS | - | - |
| 1982 | Harley-Davidson | Electra Glide Classic FLH | - | - |
| 1982 | Harley-Davidson | FLHS Electra Glide Sport | - | - |
| 1982 | Harley-Davidson | FXB Sturgis | - | - |
| 1979 | Harley-Davidson | 1200 Fat Bob FXEF | - | - |
| 1979 | Harley-Davidson | Fat Bob FXEF | - | - |
| 1979 | Harley-Davidson | Super Glide 80 FXE | - | - |
| 1979 | Harley-Davidson | Electra Glide FLH | - | - |
| 1979 | Harley-Davidson | 1200 Low Rider FXS | - | - |
| 1979 | Harley-Davidson | Low Rider FXS | - | - |
| 1979 | Harley-Davidson | 1200 Super Glide FXE | - | - |
| 1978-1979 | Harley-Davidson | 1200 Electra Glide FLH | - | - |
| 1978-1979 | Harley-Davidson | Electra Glide FL | - | - |
| 1978, 1982-1984 | Harley-Davidson | FXE Super Glide | - | - |
| 1978, 1982-1984 | Harley-Davidson | FLH Electra Glide | - | - |
| 1978, 1982 | Harley-Davidson | FXS Low Rider | - | - |
| 1978 | Harley-Davidson | FX Super Glide | - | - |
Specs
| Product Name | Cam |
| Type | Gear |
| Application | Intake / Exhaust |
| Grind | AB |
| Intake Lift | 0.450" |
| Intake Open | 21° |
| Intake Close | 50° |
| Intake Duration | 244° |
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
| Exhaust Lift | 0.450" |
| Exhaust Open | 43° |
| Exhaust Close | 26° |
| Exhaust Duration | 256° |
| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
| Units | Each |
| Riding Style | Street |
