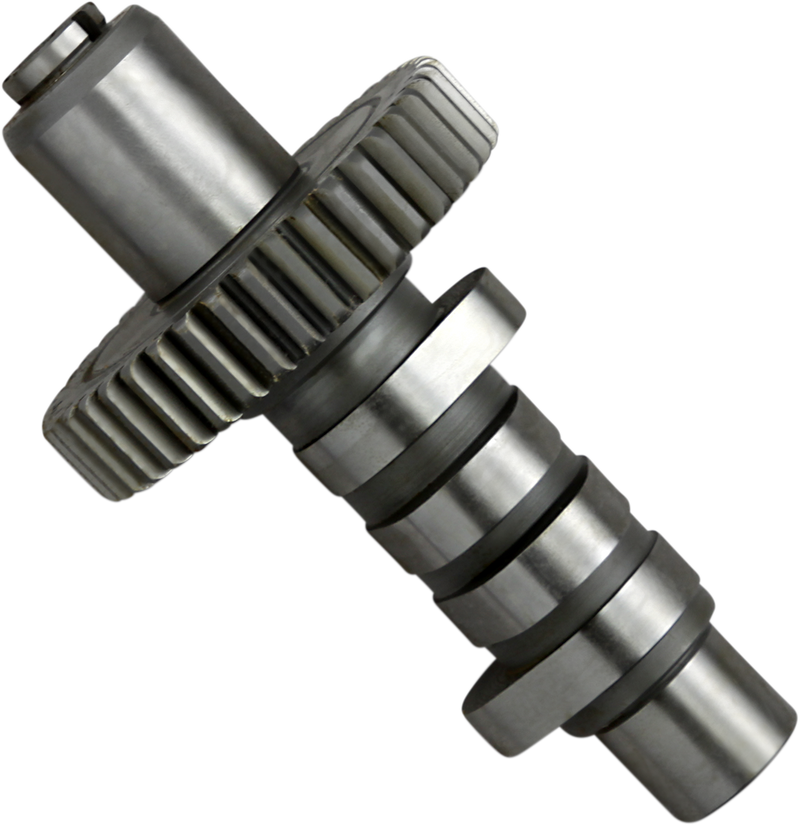

ANDREWS Cam - EV38 Grind - Evolution Big Twin - Harley-Davidson '84-'00 - 291138

by ANDREWS
SKU DS-199446
Original price $475.95 - Original price $475.95
Original price
$475.95
$475.95 - $475.95
Current price $475.95

🚚 Estimated Delivery: 12 Oct - 19 Oct

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

  • More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
  • Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
  • Made in the USA
  • Must check coil bind, valve to valve clearance, and valve to piston clearance.
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

    Note: Longer exhaust cam lowers oil temperature.
    Great mid-range and high-end power.
    Lower lift exhaust for easy installation.
    Bolt-in for lighter bikes (FXLR, etc.)
Specs
Product Name Cam
Type Gear
Application Intake / Exhaust
Grind EV38
Intake Lift 0.495"
Intake Open 21°
Intake Close 37°
Intake Duration 238°
Intake Lift at TDC 0.190"
Exhaust Lift 0.500"
Exhaust Open 52°
Exhaust Close 20°
Exhaust Duration 252°
Exhaust Lift at TDC 0.182"
Units Each
Riding Style Street
