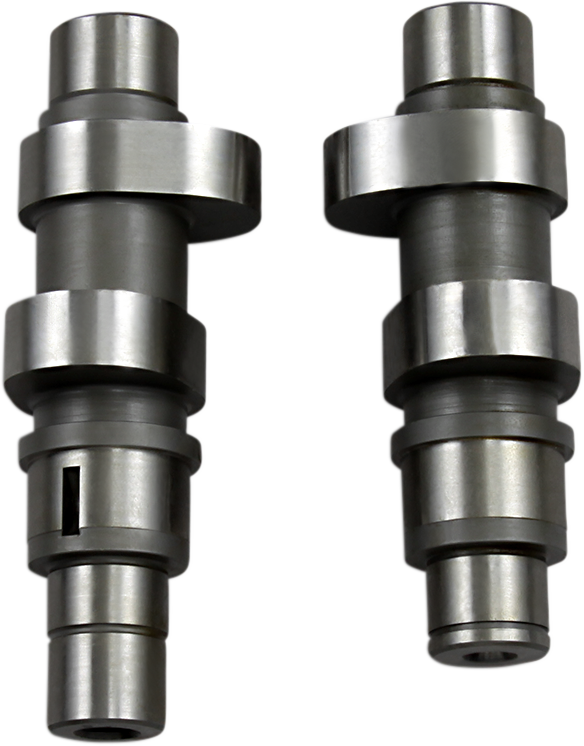

ANDREWS Cam Set - 59G - Gear Drive - Twin Cam 288159G

ANDREWS Cam Set - 59G - Gear Drive - Twin Cam - Harley-Davidson '99-'06 - 288159G

by ANDREWS
SKU DS199251
Sold out
$876.95 - $876.95
$876.95
$876.95 - $876.95
$876.95

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
  • Manufactured with the help of a computer with cam design capabilities
  • Made from alloy steel billets and heat-treated processes are utilized
  • Made in the USA
  • Four-gear set required for installation.
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.

    NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.

    Note: For 95"+ motors with 10:1 compression ratio or higher
    Maximum torque and horsepower at middle to upper 2400-6200 rpm range.
    Coil bind must be checked but can use stock tappets.
    Requires the knowledge of an expert engine builder for proper setup and installation.
    Not for '06 Dyna.

Specs
Product Name Cam Set
Type Gear Drive
Application Exhaust / Intake
Grind 59 Series
Intake Lift 0.590"
Intake Open 29°
Intake Close 57°
Intake Duration 266°
Intake Lift at TDC 0.238"
Intake Lobe Centerline 104°
Exhaust Lift 0.590"
Exhaust Open 63°
Exhaust Close 27°
Exhaust Duration 270°
Exhaust Lift at TDC 0.218"
Exhaust Lobe Centerline 108°
Units Pair
Riding Style Street

Fitment Guide
