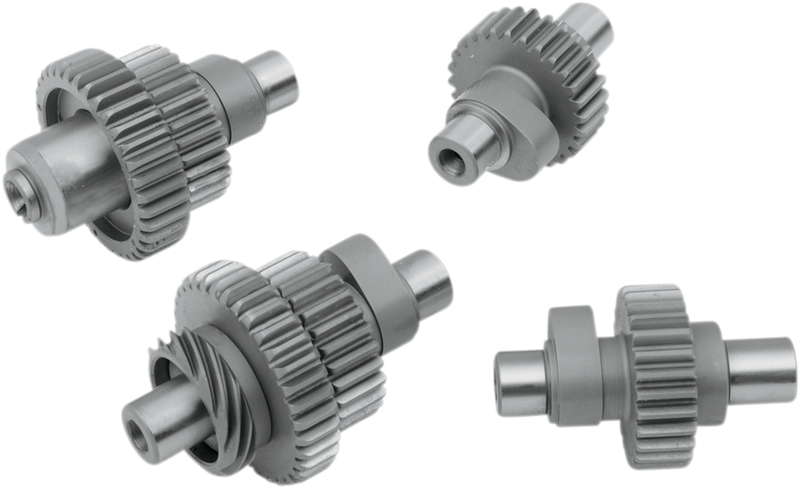

ANDREWS Cams - PB+ - Harley-Davidson XL '84-'85 - 214055
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Bolt-in four-cam set
- More horsepower and torque
- Stock springs OK to 7000 rpm, requires no headwork
- Made in the U.S.A.
Notes: Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Fitment Guide
| 1984-1985 | Harley-Davidson | XLH1000 | - |
Notes: 1984
Fits Late 1984. |
| 1984-1985 | Harley-Davidson | XLX 1000 | - |
Notes: 1984
Fits Late 1984. |
| 1984-1985 | Harley-Davidson | XLS Roadster | - |
Notes: 1984
Fits Late 1984. |
| 1984 | Harley-Davidson | XR1000 | - |
Notes: 1984
Fits Late 1984. |
Specs
| Product Name | Cam Kit |
| Application | Intake / Exhaust |
| Grind | PB+ |
| Intake Lift | 0.400" |
| Intake Open | 34° |
| Intake Close | 40° |
| Intake Duration | 254° |
| Intake Lift at TDC | 0.208" |
| Intake Lobe Centerline | 93° |
| Exhaust Lift | 0.410" |
| Exhaust Open | 43° |
| Exhaust Close | 31° |
| Exhaust Duration | 254° |
| Exhaust Lift at TDC | 0.208" |
| Exhaust Lobe Centerline | 96° |
| Units | Set |
| Riding Style | Street |
