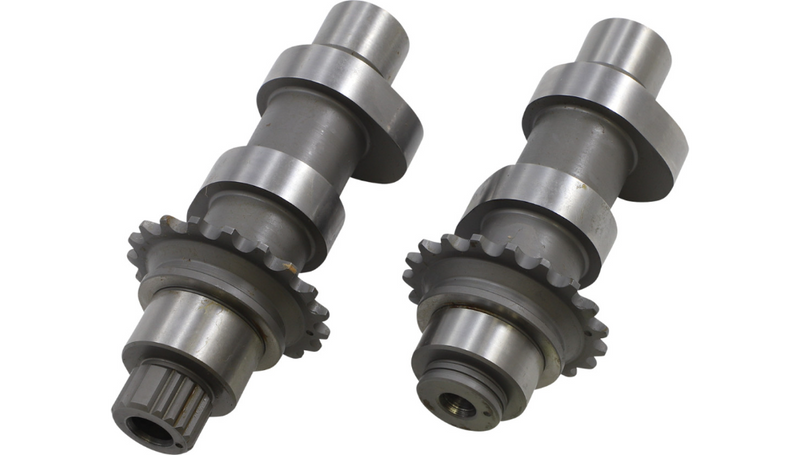

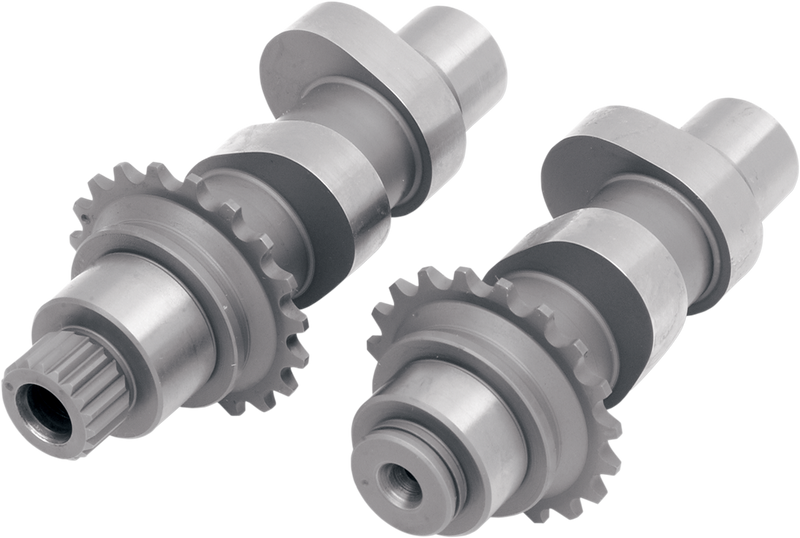

ANDREWS Conversion Camshaft - Harley-Davidson '99-'06 - 216812

by ANDREWS
SKU 0925-0139
Sold out
Original price $784.95 - Original price $784.95
Original price
$784.95
$784.95 - $784.95
Current price $784.95

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

  • Allows you to upgrade your 99-06 Twin Cam (except 06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
  • Cam grinds listed are designed to be used with stock lifters
  • They require the installation of a 2007 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters
  • These parts are not included and must be purchased separately
  • A list of required components is supplied with each set of cams
  • Performance should be similar to earlier bikes with the same cam grinds.


NOTE: 99-06 Twin Cam motors (except 06 Dyna Glide) cannot use the 2007 cams, as the bearing journal on the earlier motors is .875 in. in diameter and the 2007 cams are 1.000 in. in diameter. The "N" series of cams feature the .875 in. bearing journal, yet still accept the new style cam support plate.
NOTE: 99-01 model motors must use the Andrews rear cam sprocket PART #140050. 2002-2006 models must use the stock rear cam sprocket, OEM # 25728-06.
NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

FOR 99-06 TWIN CAM (EXCEPT 06 DYNA GLIDE)
12N GRIND CAMS

  • Bolt-in cams with the same output as the stock cams
  • Slight power increase when compared to stock
  • No retuning of the stock system is necessary
  • Can be used with stock valve springs and tappets
Specs
Product Name Cam Kit
Type Chain Conversion
Application Exhaust / Intake
Model N Series
Grind 12 Series
Intake Lift 0.489"
Intake Open 2°
Intake Close 34°
Intake Duration 216°
Intake Lift at TDC 0.091"
Intake Lobe Centerline 106°
Exhaust Lift 0.489"
Exhaust Open 40°
Exhaust Close 2°
Exhaust Duration 222°
Exhaust Lift at TDC 0.095"
Exhaust Lobe Centerline 109°
Units Pair
Riding Style Street
