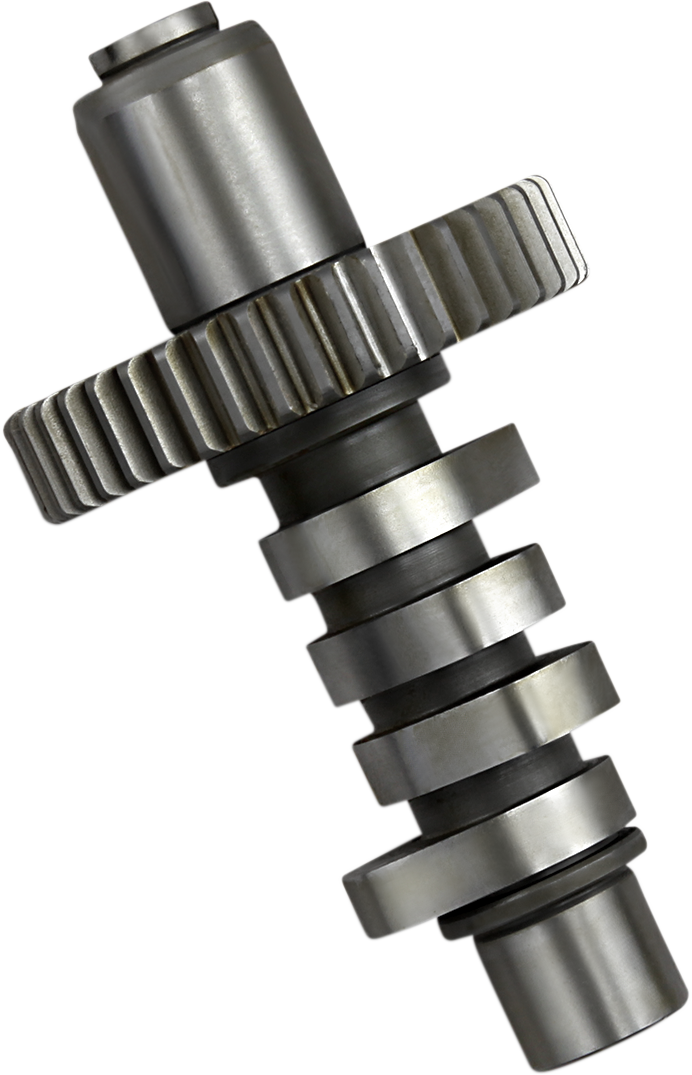

ANDREWS Low-Compression Cam - #1 Grind - Shovelhead 212140

ANDREWS Low-Compression Cam - #1 Grind - Shovelhead - Harley-Davidson '70-'77 - 212140

by ANDREWS
SKU DS-199282
$536.95 - $536.95
$536.95
$536.95 - $536.95
$536.95
  • Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
  • Designed for hydraulics, but could be run with solids
  • Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
  • Made in the USA

    Notes: On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

    Note: For '70 - Early '77 Shovelhead.

Fitment Guide
1977 Harley-Davidson FXS Low Rider -
Notes: 1977
Fits Early 1977.
1974-1977 Harley-Davidson FXE Super Glide -
Notes: 1977
Fits Early 1977.
1971-1977 Harley-Davidson FX Super Glide -
Notes: 1977
Fits Early 1977.
1970-1977 Harley-Davidson FLH Electra Glide -
Notes: 1977
Fits Early 1977.
1970-1977 Harley-Davidson Electra Glide FL -
Notes: 1977
Fits Early 1977.
Specs
Product Name Cam
Application Intake / Exhaust
Grind #1
Intake Lift Shovel: 0.427" Pan: 0.450"
Intake Open 16°
Intake Close 36°
Intake Duration 232°
Intake Lift at TDC 0.136"
Exhaust Lift Shovel: 0.427" Pan: 0.450"
Exhaust Open 36°
Exhaust Close 16°
Exhaust Duration 232°
Exhaust Lift at TDC 0.136"
Units Each
Riding Style Street
