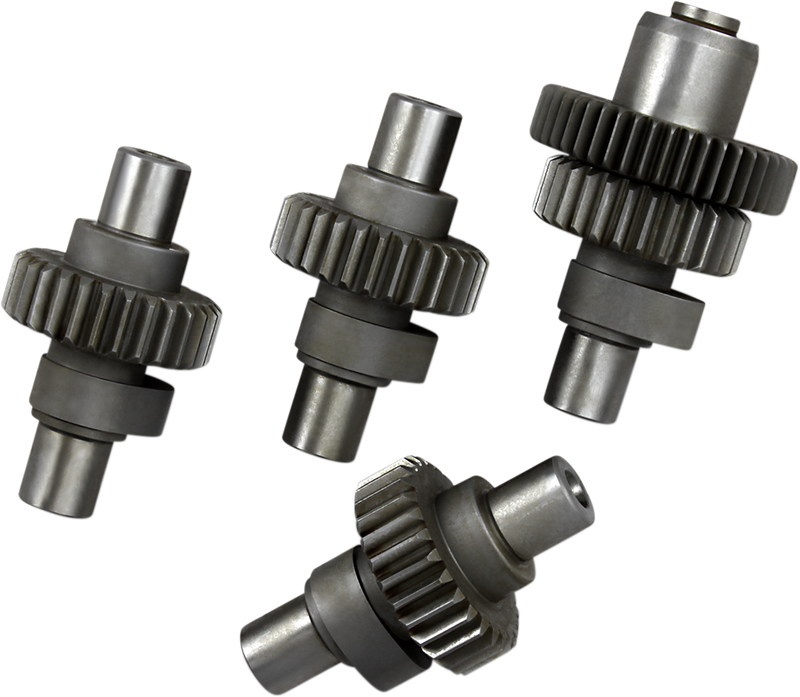

ANDREWS N4 Grind Cam - Harley-Davidson/Buell XL - 298150
Upgrade your Evolution Sportster or Buell engine with the proven performance of the N4 Grind Cam set from Andrews. These high-performance cams are engineered to deliver a serious boost in power, operating effectively within a 2500 to 6000 rpm range. Designed for both stock and modified applications, they utilize stock base circle sizes which conveniently allows you to retain your stock pushrods. They are also made to be used with the stock hydraulic lifters and valve springs for a more straightforward installation. For a reliable power gain from a legendary name in motorcycle performance, install a set of Andrews N4 cams in your bike.
Andrews Products was founded in the spring of 1972 and for 30+ years has specialized in making camshafts and transmission gears for the performance motorcycle market.
- Performance cams designed by Andrews for XL 883, and 1200 Evolution 00-03 and Buell 00-02 models
- Cams run up to 6000 rpm with stock hydraulic lifters; for this reason, it is recommended that solids NOT be installed
- N4 is for stock or modified applications, have a slightly higher idle speed, can be used w/ stock hydraulic lifters and springs, and have 2500 - 6000 rpm range
- Stock base circle sizes so stock pushrods can be used
Fitment Guide
| 2018-2020 | Harley-Davidson | XL1200NS Iron 1200 | - | - |
| 2018-2019 | Harley-Davidson | XL1200XS Forty-Eight Special | - | - |
| 2016-2020 | Harley-Davidson | XL1200CX Roadster | - | - |
| 2014-2017 | Harley-Davidson | XL1200T SuperLow 1200T | - | - |
| 2012-2016 | Harley-Davidson | XL1200V Seventy-Two | - | - |
| 2011-2019 | Harley-Davidson | XL883L SuperLow | - | - |
| 2011-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2010-2020 | Harley-Davidson | XL1200X Forty-Eight | - | - |
| 2010-2012 | Harley-Davidson | XR1200X | - | - |
| 2010 | Harley-Davidson | XR1200 | - | - |
| 2009-2020 | Harley-Davidson | XL883N Iron 883 | - | - |
| 2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2009 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2007-2012 | Harley-Davidson | XL1200N Sportster 1200 Nightster | - | - |
| 2007 | Harley-Davidson | XL50 50th Anniversary Sportster | - | - |
| 2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2006-2011 | Harley-Davidson | XL1200L Sportster 1200 Low | - | - |
| 2006 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2005-2010 | Harley-Davidson | XL883L Sportster 883 Low | - | - |
| 2004-2009 | Harley-Davidson | XL1200R Sportster 1200 Roadster | - | - |
| 2004-2008 | Harley-Davidson | XL883 Sportster | - | - |
| 2002-2006 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | XL883R Sportster 883 Roadster | - | - |
| 2002-2003, 2005-2006 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2002-2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger | - | - |
| 2000-2019 | Harley-Davidson | XL1200C Sportster 1200 Custom | - | - |
| 2000-2009 | Harley-Davidson | XL883C Sportster 883 Custom | - | - |
| 2000-2006 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 2000-2003 | Harley-Davidson | XL1200S Sportster 1200 Sport | - | - |
| 2000-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 2000-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 2000-2002 | Buell | X1 Lightning | - | - |
| 2000-2002 | Buell | S3 Thunderbolt | - | - |
| 2000-2002 | Buell | M2 Cyclone | - | - |
| 2000-2001 | Harley-Davidson | XLH883 | - | - |
| 2000 | Buell | S3T Thunderbolt | - | - |
Specs
| Product Name | Cam Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Grind | N4 |
| Intake Lift | 0.490" |
| Intake Open | 30° |
| Intake Close | 46° |
| Intake Duration | 256° |
| Intake Lift at TDC | 0.216" |
| Intake Lobe Centerline | 98° |
| Exhaust Lift | 0.490" |
| Exhaust Open | 52° |
| Exhaust Close | 24° |
| Exhaust Duration | 256° |
| Exhaust Lift at TDC | 0.189" |
| Exhaust Lobe Centerline | 104° |
| Units | 4 Pack |
| Riding Style | Street |
