ARLEN NESS 15-SPOKE INVERTED SERIES AIR CLEANER, CHROME - '08-'16 FLT / '16-'17 FLST & FXDLS (FBW) - 18-990
by ARLEN NESS
SKU 18-990
Original price
$831.95
-
Original price
$831.95
Original price
$831.95
$831.95
-
$831.95
Current price
$831.95
🚚 Estimated Delivery: 23 Oct - 30 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

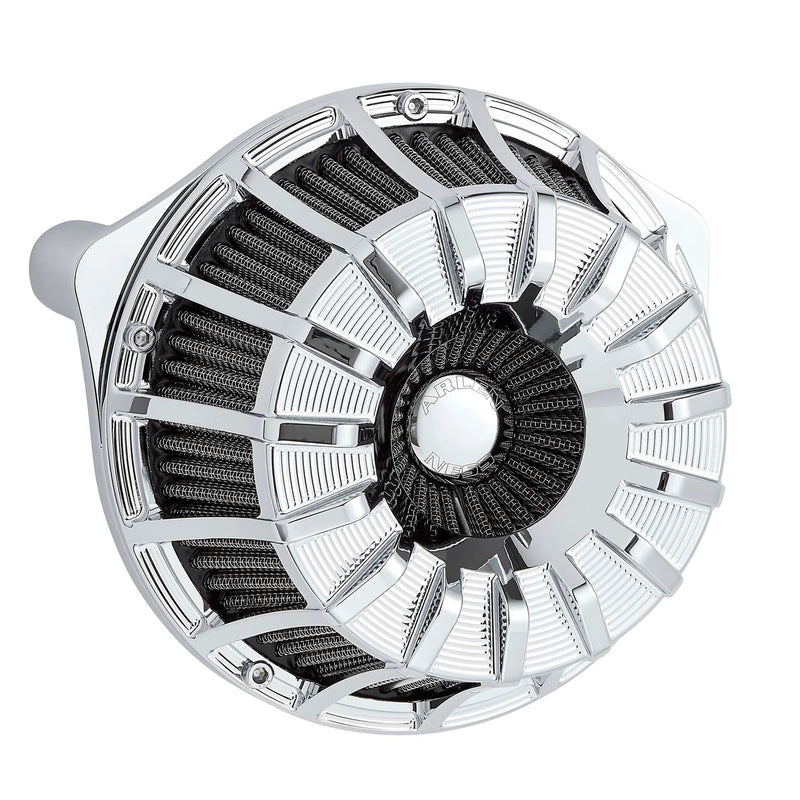

The Inverted air cleaners forged billet design maximizes airflow by pulling in air from all directions including the face of the air cleaner. Each performance air filter features an inverted pleated top and is handmade from black synthetic filter element wrapped in a stainless steel mesh
- 15-Spoke design
- Inspired by factory wheels found on HD Road Glide & Street Glide "Special" models
- Patented backing plate technology (US Patent: US 10,851,741 B1)
- High performance synthetic air filter
- CNC machined from forged billet aluminum
- Patent-Pending oil catch / reservoir
- Increases horsepower, torque & mileage
- Chrome finish

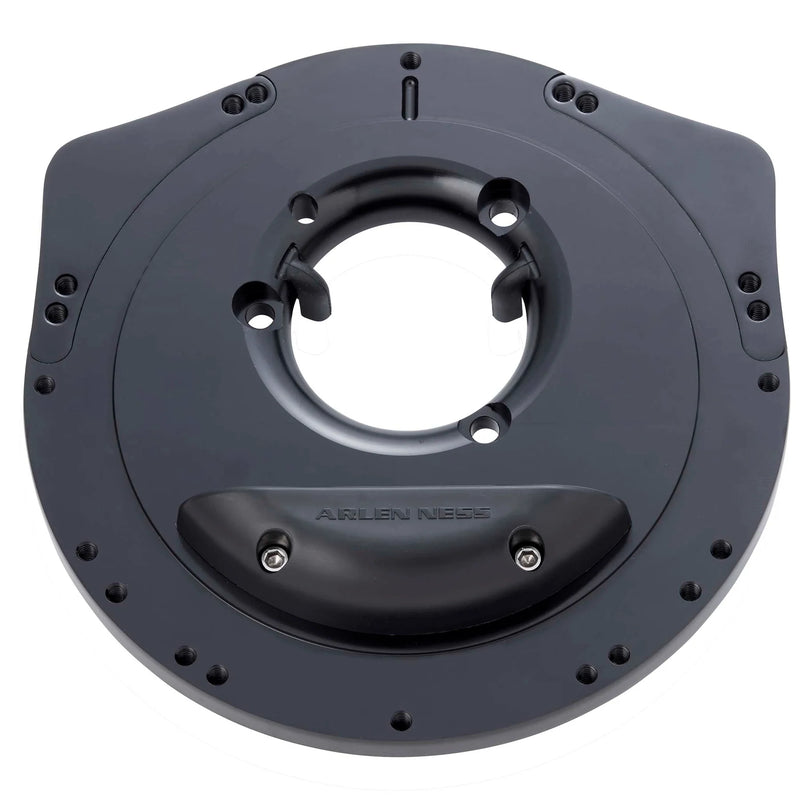

FORGED BILLET ALUMINUM BACKING PLATE:
- CNC machined from forged billet aluminum
- Features Patent-Pending next generation hidden breather technology. Each hidden breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes. This eliminates the need for any external hoses or hardware for a virtually closed loop system
- Radius air inlet for unobstructed airflow
- Specially designed breather bolts are hidden under billet covers for a clean look
- Patent-Pending Oil Catch / Reservoir. To ensure no oil saturates the filter and restricts your airflow, the integrated oil catch collects any excess engine oil before it reaches the air filter. Bolt-on design allows oil catch to be serviced when you service the filter element
INVERTED PERFORMANCE AIR FILTER:
- Each Inverted Series filter is handmade in the U.S.A.
- Features an inverted pleated top and full perimeter pleated sides to pull in air from every direction
- Made from black Synthetic filter element that is wrapped in Stainless Steel mesh
- Water resistant
- Re-usable / washable filter, does not require oil
FORGED BILLET ALUMINUM AIR FILTER HOUSINGS:
- CNC machined from a single piece of forged billet aluminum
- Features an inverted face that acts like a velocity stack by pulling in air into the top of the performance air filter
- CNC machined style features run from the face of the intake to the backing plate for eye-catching style at every angle
*FITMENT*
08-16 TOURING / 16-17 SOFTAIL (FBW)
- 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
- 2016-2017 Softails
- 2016-2017 Dyna FXDLS
- 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
- *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)
Specs
| PRODUCT NAME | AIR CLEANER |
| MODEL | INVERTED SERIES |
| DESIGN | 15-SPOKE |
| COLOR/FINISH | CHROME |
| BASE COLOR | SILVER |
| FINISH | CHROME |
| FILTER MEDIA MATERIAL | SYNTHETIC |
| MATERIAL | ALUMINUM / STAINLESS STEEL |
| FEATURES | WATER RESISTANT |
| UNITS | KIT |
| RIDING STYLE | STREET |
