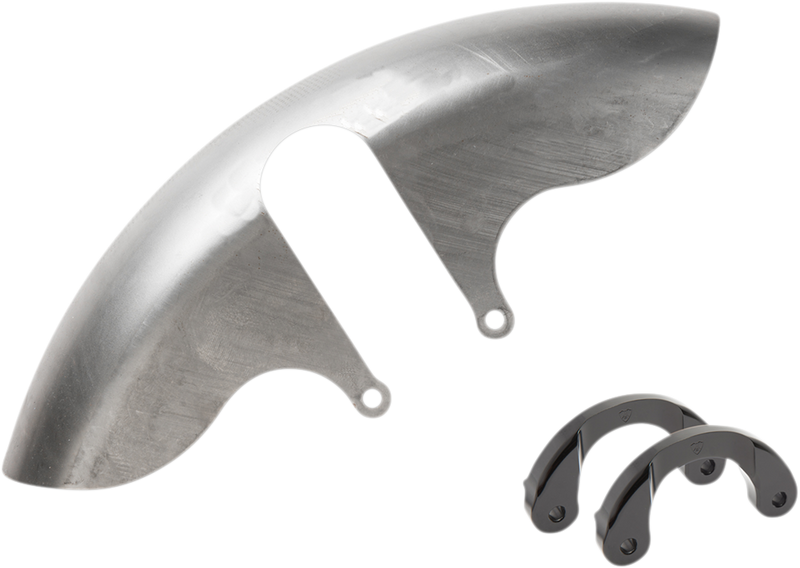

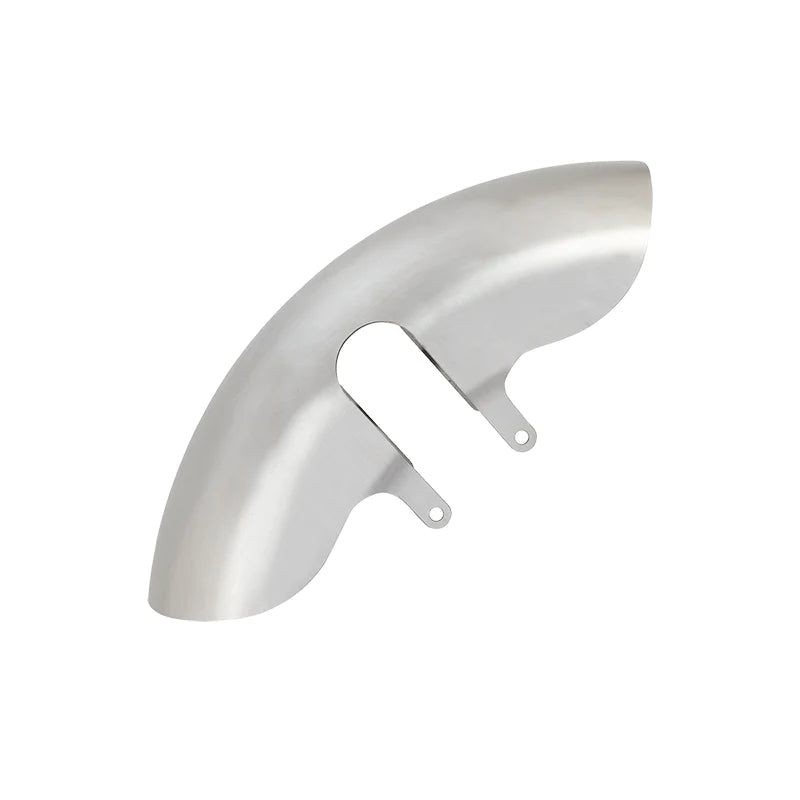

ARLEN NESS PRO SHORT FAT FRONT FENDERS, 18" FLT - '86-'13 FLT - 06-705
ARLEN NESS PRO SHORT FAT FRONT FENDERS, 18" FLT - '86-'13 FLT - 06-705
ARLEN NESS PRO SHORT FAT FRONT FENDERS, 18" FLT - '86-'13 FLT - 06-705

ARLEN NESS PRO SHORT FAT FRONT FENDERS, 18" FLT - '86-'13 FLT - 06-705

by ARLEN NESS
SKU 06-705
$712.95 - $712.95
$712.95
$712.95 - $712.95
$712.95

🚚 Estimated Delivery: 23 Oct - 30 Oct

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
  • Pro Short front fenders for wide tire Baggers feature a performance inspired design with a short overall length
  • Each steel fender features a direct bolt-on design, specially notched sides and smooth flowing body lines for contoured curves seen from every angle
  • Offers a smoother ride & protects the front wheel from potholes
  • 8" Wide, designed to fit 18" x 5.5" front wheels w/ 180mm tires
  • Made from a single sheet of premium quality steel, stamped & laser cut to perfection
  • Allows clearance for up to 14" oversized brake rotors
  • Pair with Arlen Ness Smooth style fork boots for complete direct bolt-on installation
  • Fitment: 99-13 FLT/FLHT & 14-up FLHT/FLHX/FLHR/FLTRX, with 180mm wide front tires

 *Note: 14-up FLT applications include radius body lines on side of fender, 99-13 does not for proper clearance. *Check fender fit & clearance prior to painting

NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.

FEATURES:

  • Wide / Fat style front fenders made from one piece of high quality Steel, stamped and laser cut for a perfect fit
  • Designed for 18" x 5.5" front wheels with 180mm tires
  • Complete Direct Bolt-On Design for simple installation, no fabrication required
  • Notched fender sides for an enhanced look with proper clearances
  • New design features radius bodylines for smooth flowing look
  • Will work with factory or aftermarket fork legs and front suspension internals
  • Accepts up to 14" brake rotors (factory or oversized)

DIRECT BOLT-ON DESIGN FOR EASY INSTALLATION

  • Measure Twice Cut Once, countless engineering hours resulted in the easiest installation of any wide tire kit available
  • Direct bolt-on design, no custom fabrication required for 14-up FLT
  • Each fender can be easily installed in no more than a few hours

SMOOTH FORK BOOTS FOR WIDE / FAT FRONT ENDS:

  • Smooth fork boots feature a sculpted CNC machined billet design
  • Specially notched inside surfaces give a clean & finished look while giving ample clearance for wide tire kits
  • Allows for a complete direct bolt-on design for 18” x 5.5” wide / fat front wheels on 14-up FLT models
  • Will work with Arlen Ness & other aftermarket wide front fender designs



*FITMENT*

HARLEY-DAVIDSON® FLT TOURING MODELS (BAGGERS): 1999-2013 & 2014-UP

*Includes: Road Glide, Street Glide & Road King model lineups



Specs
PRODUCT NAME FENDER
STYLE PRO SHORT FAT
MOUNTING POSITION FRONT
FINISH RAW
COLOR/FINISH UNFINISHED
MATERIAL STEEL
STRAIGHT LINE LENGTH 19.00"
CONTOUR LENGTH 21.00"
FENDER WIDTH 8.00"
OUTSIDE MOUNTING WIDTH 8.00"
INSIDE MOUNTING WIDTH 7.875"
HEIGHT 7.125"
FOR WHEEL SIZE 18.00"
UNITS EACH
RIDING STYLE STREET
