ARLEN NESS SPEED 5 FORGED WHEELS, BLACK - 18"x5.50" - RIM ONLY - 71-516
🚚 Estimated Delivery: 14 Jul - 21 Jul

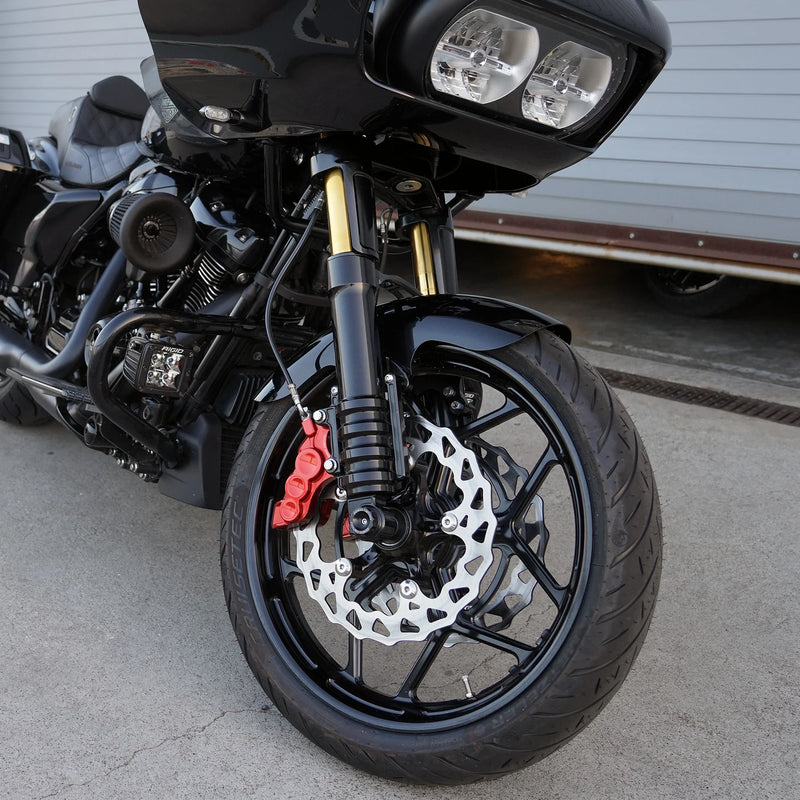

The Speed 5 wheel design is a lightweight performance inspired wheel with a high strength to weight ratio. It's triangulated 5-spoke design features a center ring connecting each spoke, each ring is strategically located for optimum strength & to be visually hidden by the rotor when installed on the motorcycle
- High level CNC machined detail
- Race inspired design
- Precision CNC Machined from Radial Forged 6061-T6 Aluminum
- Structurally Tested to Meet or Exceed DOT, JAS and TUV International Load Ratings
- Accepts Ness Cartridge Type Hub Design
- Superior Radial and Lateral Runout Accuracy
- Black anodize finish
- Accepts all standard HD hub mount rotors, Ness rotor adapters with Jagged® or spoke mount style rotors are recommended. Accepts any 5-bolt HD style brake rotor
- Available Sizes: 21" x 3.5" / 18" x 5.5" / 19" x 3.25
- Black Anodize finish
*Choose your rim size (rim sold separate from hub) and then your correct hub application. These are rims only, hub must also be purchased for a complete assembly

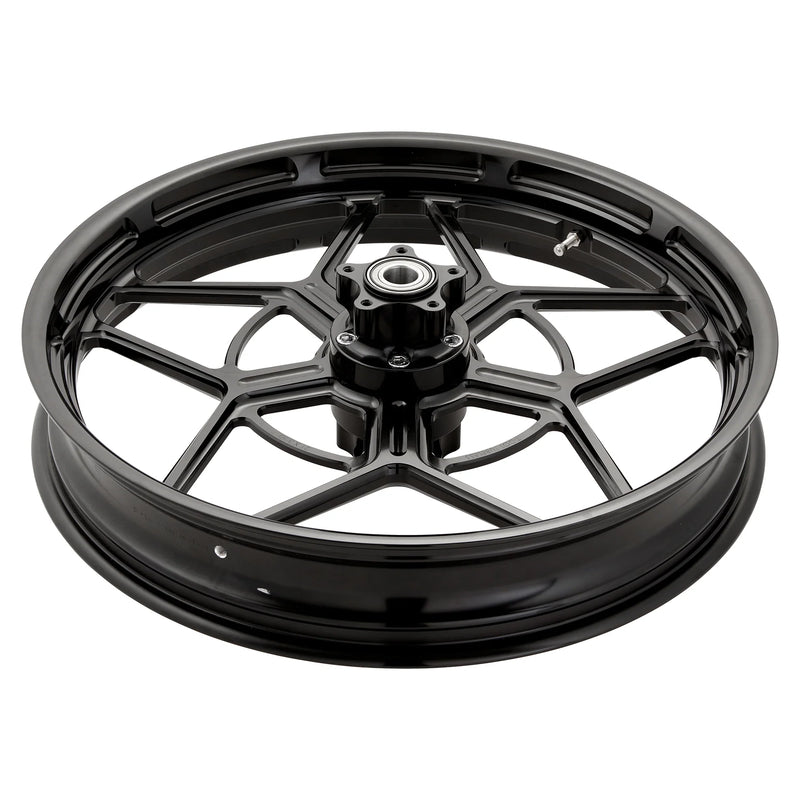

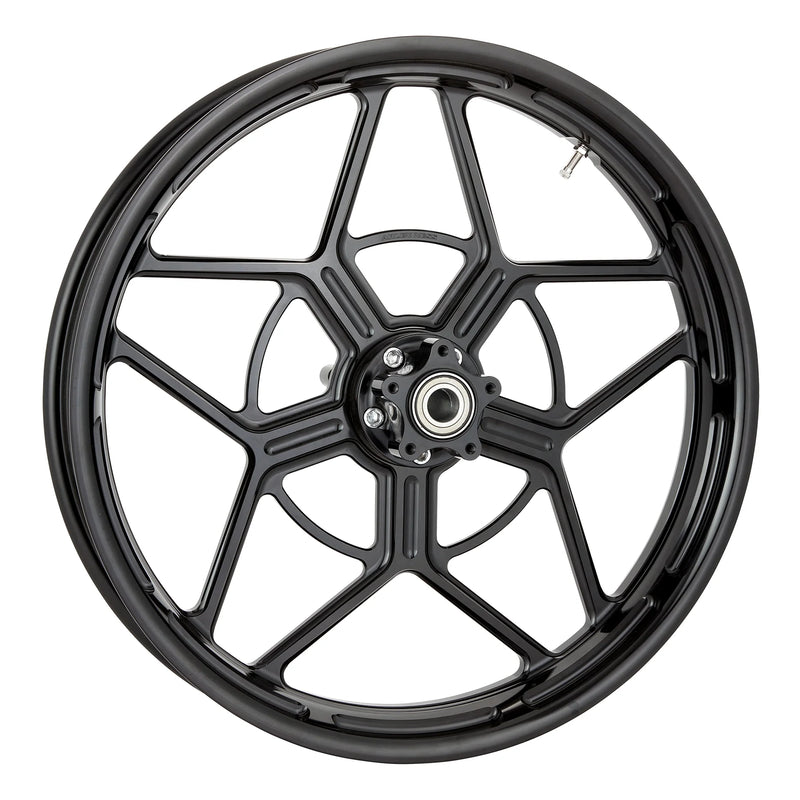

FORGED BILLET ALUMINUM WHEEL:
- 5 spoke "Speed 5" design is engineered to be a lightweight race style wheel
- CNC machined from radial forged 6061-T6 aluminum
- Arlen Ness proprietary wheel forgings
- Detailed CNC machining from the edge of the rim to the center of the wheel hub
- Accepts Arlen Ness cartridge type hubs
- Structurally tested to meet or exceed DOT, JAS and TUV international load ratings
- Smooth rolled rim lip with CNC machined details
CARTRIDGE TYPE HUB DESIGN:
- Features both wheel bearings pre-set in one hub for optimum radial and lateral runout accuracy
- Constructed from 6061-T6 aluminum
- CNC machined sculpted design for a detailed look and reduced weight
- Hub kits mount to Arlen Ness forged rims in minutes allowing for excellent flexibility for custom build/applications
- Compatible with ABS & Non-ABS models
- Proprietary fully sealed wheel bearings w/ ABS rings
WHEEL SIZES & COMPONENTS:
- Front Wheel Sizes: 18" x 5.5" / 21" x 3.5" / 19"
- Rear Wheel Sizes: 18" x 5.5"
- Accepts Arlen Ness FLT factory rotors adapters which utilize factory or aftermarket spoke mounted rotor discs, or any 5-bolt HD style brake rotor
*FITMENT*

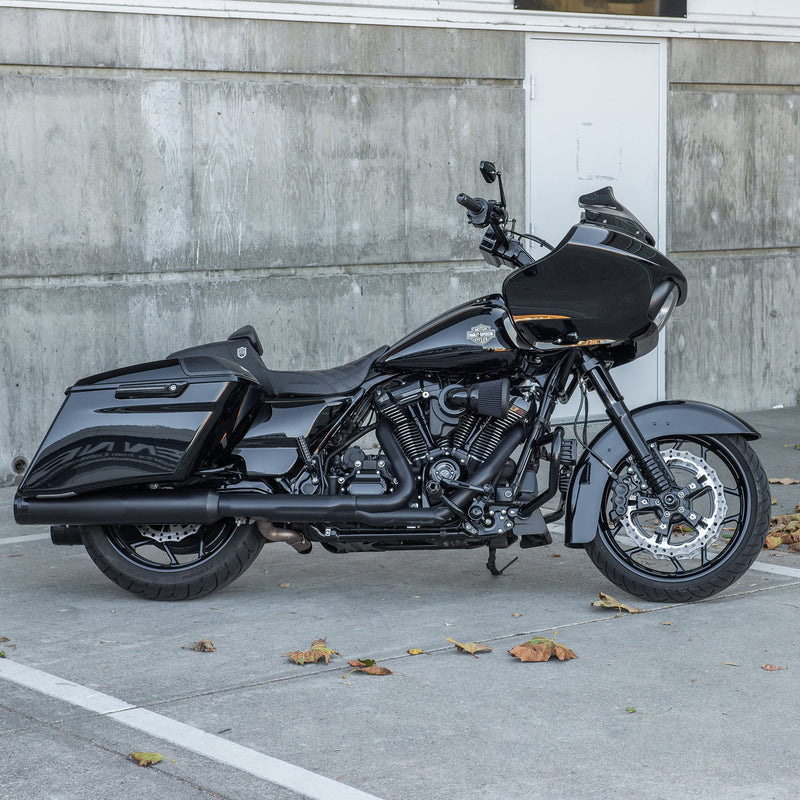

Harley-Davidson & Indian Motorcycle Models
Specs
| PRODUCT NAME | RIM |
| TYPE | 5-SPOKE |
| STYLE | SPEED-5 |
| BASE COLOR | BLACK |
| FINISH | ANODIZED |
| COLOR/FINISH | BLACK / ANODIZED |
| MATERIAL | 6061-T6 ALUMINUM |
| RIM DIAMETER | 18" |
| RIM WIDTH | 5.50" |
| WHEEL SIZE | 18" X 5.50" |
| UNITS | EACH |
| RIDING STYLE | STREET |
