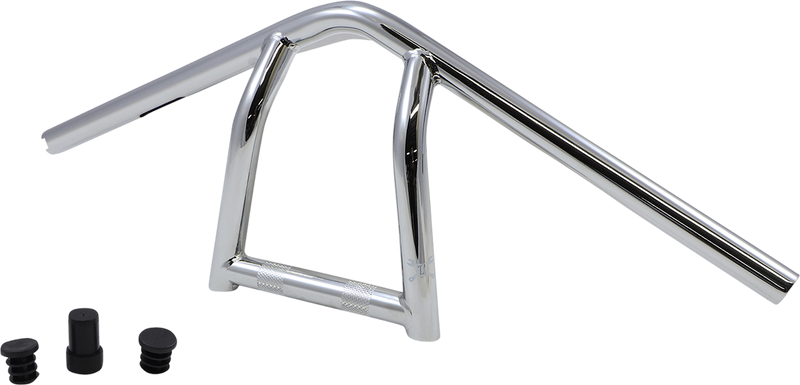

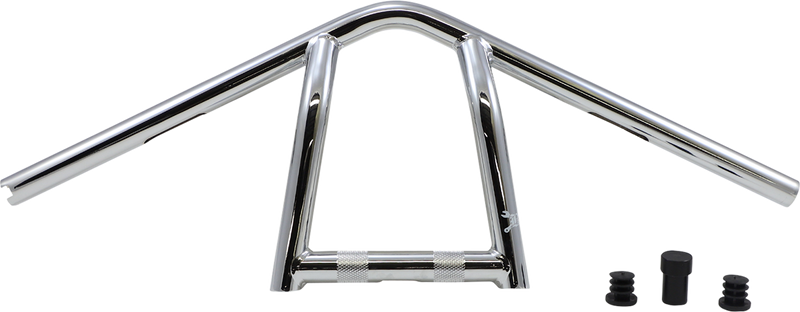

BURLY BRAND Handlebar - Jim - 9" - Chrome - '83-'22 XL - B12-6040C
- All prices are in Australian Dollars
- Use shipping cost estimator below to get final cost delivered to your door - no additional charges.
- See delivery info below
The Jim is bent as a narrow clamp mount handlebar for splitting lanes and taking names. At 26” wide this is by far the skinniest bar we offer. Made with 1-inch steel tubing featuring slots for internal wiring and crowned for throttle by wire applications. Welded and mandrel bent for precision fit. Available in 9” and 11” heights with Black Powder Coat or Chrome finishes. #RIPJIMHOGG
- Lane splitting design
- 26” wide x 2.5” pullback x 5.5” center width
- Available in 9” and 11” heights
- Slotted for internal wiring
- Black Powder Coat or Chrome
- Will work with stock controls on Sportster models
Specs
| PRODUCT NAME | HANDLEBAR |
| COLOR/FINISH | CHROME |
| BASE COLOR | SILVER |
| FINISH | CHROME |
| FEATURES | NOTCHED FOR THROTTLE-BY-WIRE / SLOTTED |
| TYPE/BEND | JIM / LANE-SPLITTER |
| WIDTH | 26" |
| CENTER WIDTH | 5-1/2" |
| PULLBACK/SWEEP | 2-1/2" |
| HEIGHT | 9" |
| HANDLEBAR DIAMETER | 1" |
| CONTROLS DIAMETER | 1" |
| CLAMPING DIAMETER | 1" |
| CLAMPING WIDTH | 3-1/2" |
| MATERIAL | STEEL |
| UNITS | EACH |
| RIDING STYLE | STREET |
