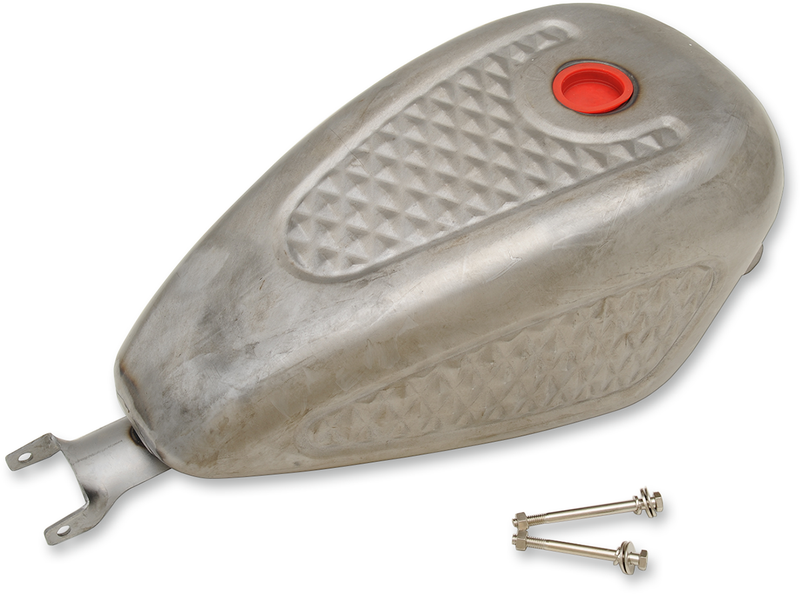

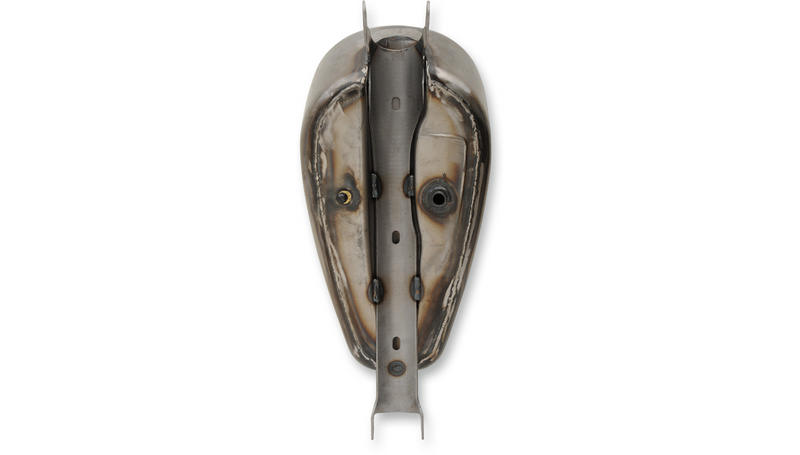

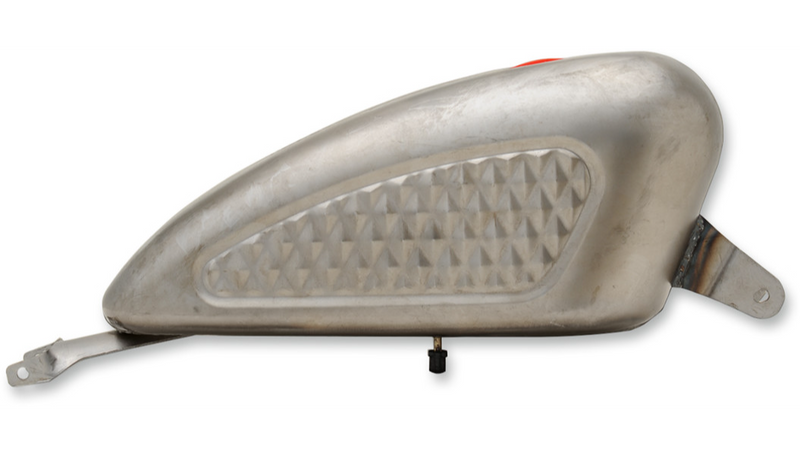

DRAG SPECIALTIES Diamond Style Gas Tank - 3 Gallons - XL '04-'06 - 63584D
🚚 Estimated Delivery: 15 Jul - 22 Jul
- Heavy gauge steel with reinforced seams
- Come complete with extra-strong mounting tabs, and mounting hardware
- Petcocks sold separately
NOTE: Not for 883C/1200C models with stock gauge mount.
Uses 22 mm petcock (sold separately).
All tanks are shipped unpainted. All gas tanks should be fitted, pressure-tested and sealed BEFORE being painted to eliminate potential problems.
Fitment Guide
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2006 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2005-2006 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2004-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 2004-2006 | Harley-Davidson | 883 Custom XLC | - | - |
Specs
| PRODUCT NAME | GAS TANK |
| TYPE | LARGE CAPACITY |
| STYLE | DIAMOND |
| APPLICATION | CARBURETED |
| COLOR/FINISH | RAW |
| FINISH | NATURAL |
| MATERIAL | STEEL |
| TANK CAPACITY | 3 U.S. GAL. / 11.4 LITER |
| NUMBER OF CAPS | SINGLE |
| CAP STYLE | VENTED |
| FUEL TANK OUTLET SIZE | 22 MM |
| FUEL TANK OUTLET SIDE | LEFT |
| MOUNTING STYLE | BOLT-ON |
| UNITS | EACH |
| RIDING STYLE | STREET |
