DRAG SPECIALTIES Smooth-Top Single-Cap Style Extended Gas Tank - XL '82-'03 - 11586-BX46
FREE Shipping Over $99*
- FREE Shipping on orders over $99 -Excludes Bulky Items
- All prices are in Australian Dollars
- See delivery info below

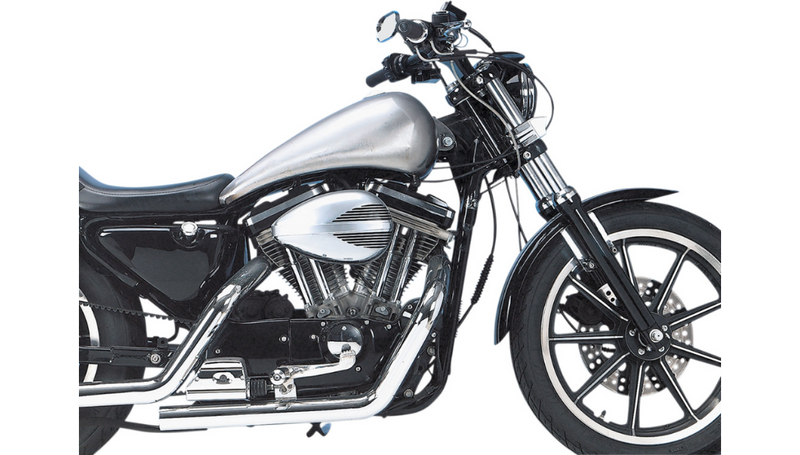

- Extended design of these tanks allows the lines of the tank to flow into the lines of the seat for a great custom look
- Tanks have cutout in rear for seat nose (some seats may need to be shortened)
- 2" longer than a standard QuickBob tank

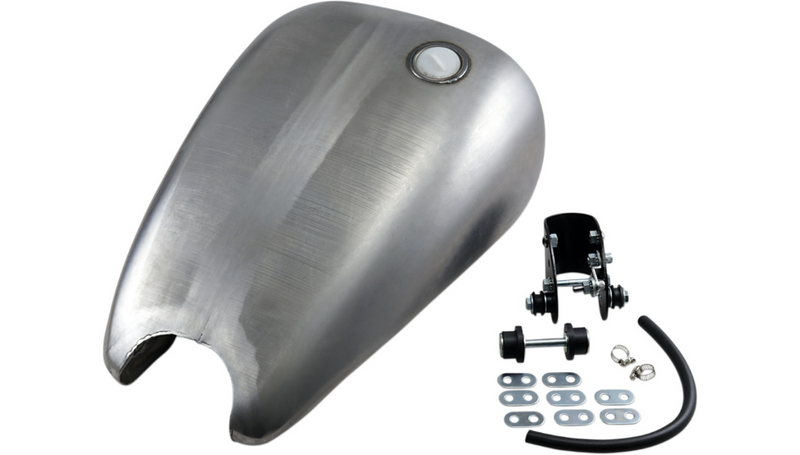

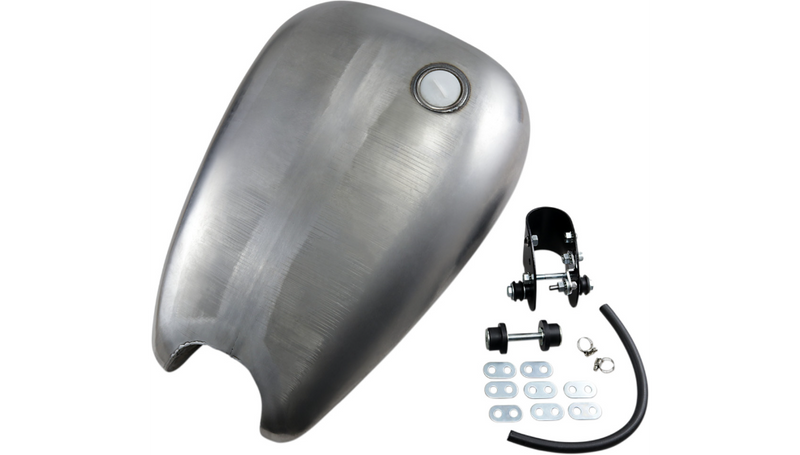

- Includes necessary mounting brackets
- 3.9-gallon capacity
- Utilizes a 22 mm petcock
- When installed on '92 and later models and the OEM continuous venting system is eliminated or disconnected, do NOT reuse your stock vented cap. Stock vented cap should be replaced with earlier version of the screw-type caps.
NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.
NOTE: Requires part # DS-390077 ignition coil relocation kit.
All tanks are shipped unpainted. All gas tanks should be fitted, pressure-tested and sealed BEFORE being painted to eliminate potential problems.
Fitment Guide
| 2002-2003 | Harley-Davidson | 883 Roadster XLR | - | - |
| 1999-2003 | Harley-Davidson | 883 Custom XLC | - | - |
| 1996-2003 | Harley-Davidson | 1200 Sport XLS | - | - |
| 1996-2003 | Harley-Davidson | 1200 Custom XLC | - | - |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 1987-2003 | Harley-Davidson | 883 Hugger XLH | - | - |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 1986-1995 | Harley-Davidson | 883 Deluxe XLH | - | - |
| 1986-1987 | Harley-Davidson | Sportster 1100 XLH | - | - |
| 1983-1985 | Harley-Davidson | Sportster 1000 XLX | - | - |
| 1983-1984 | Harley-Davidson | Sportster 1000 XR | - | - |
| 1982-1985 | Harley-Davidson | Sportster 1000 XLH | - | - |
| 1982-1985 | Harley-Davidson | Roadster 1000 XLS | - | - |
Specs
| Product Name | Gas Tank |
| Type | QuickBob® / Extended |
| Style | Smooth Top |
| Application | Carbureted |
| Color/Finish | Raw |
| Base Color | Silver |
| Material | Steel |
| Tank Capacity | 3.9 US gal. / 14.8 liter |
| Cap Style | Single |
| Fuel Tank Outlet Size | 22 mm |
| Fuel Tank Outlet Side | Left |
| Units | Each |
| Riding Style | Street |
