FAT BAGGERS INC. 1-1/2" EZ Install Flat Top Handlebar - 14" - Black - FLTRX '23-'25 - 649914-B
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Wired for your handlebar controls, new replacement wiring harness wired through the bars
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- CNC Mandrel Bent from 1 1/2″ Dia x .120″ wall heavy tube
- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and is easy to ship
- Made in the U.S.A.
- Accepts OEM heated grips.

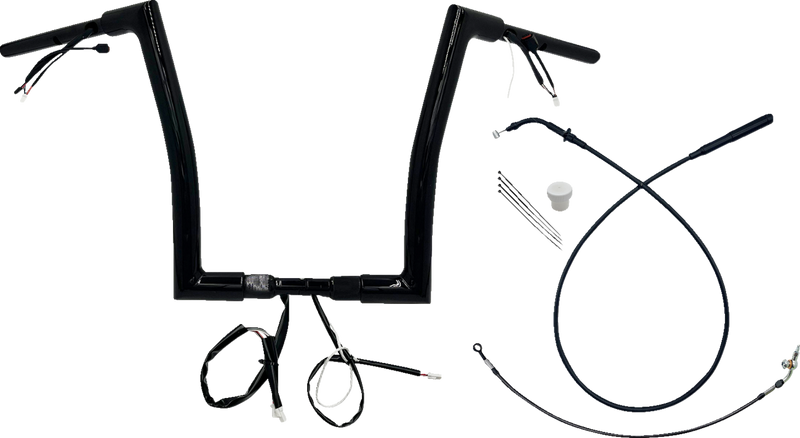

Items Included:
- Black Flat Top Handlebars, 1 1/2″, with a 14″ rise
- These handlebars are pre-installed with a can bus wire harness for controls
- EZ install upper clutch cable (Plus 4″) (Black Vinyl)
- EZ install brake line extension (Black Vinyl)
- Zip ties
FITMENT:
- 2023-2024 CVO Road Glide FLTRXSE
- 2024 Road Glide FLTRX
Fitment Guide
| 2024-2025 | Harley Davidson | Road Glide FLTR | - | - |
| 2023-2025 | Harley Davidson | CVO Road Glide FLTRXSE | - | - |
Specs
| Features | Wired / Knurled Center / Accepts Heated Grips / Internal Wiring / Notched for Throttle-By-Wire |
| Material | Steel |
| Product Name | Handlebar |
| Pullback/Sweep | 8" |
| Center Width | 10-1/4" |
| Base Color | Black |
| Type/Bend | Ape Hanger |
| Units | Each |
| Clamping Diameter | 1-1/4" |
| Controls Diameter | 1" |
| Rise | 14" |
| Style | Sharknose |
| Handlebar Diameter | 1-1/2" |
| Color/Finish | Black |
| Riding Style | Street |
| Width | 35" |
