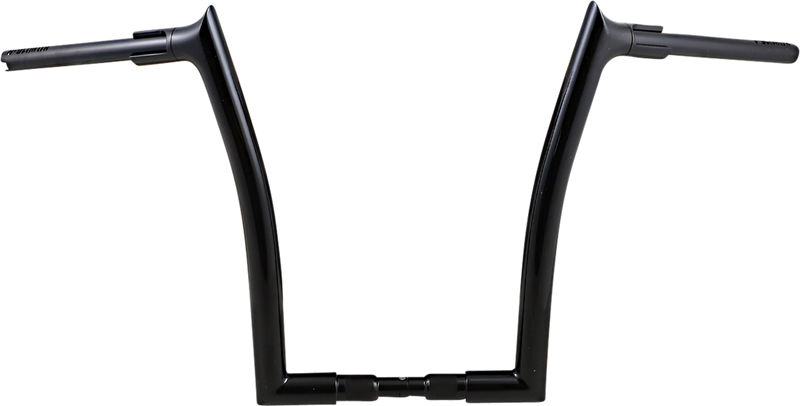

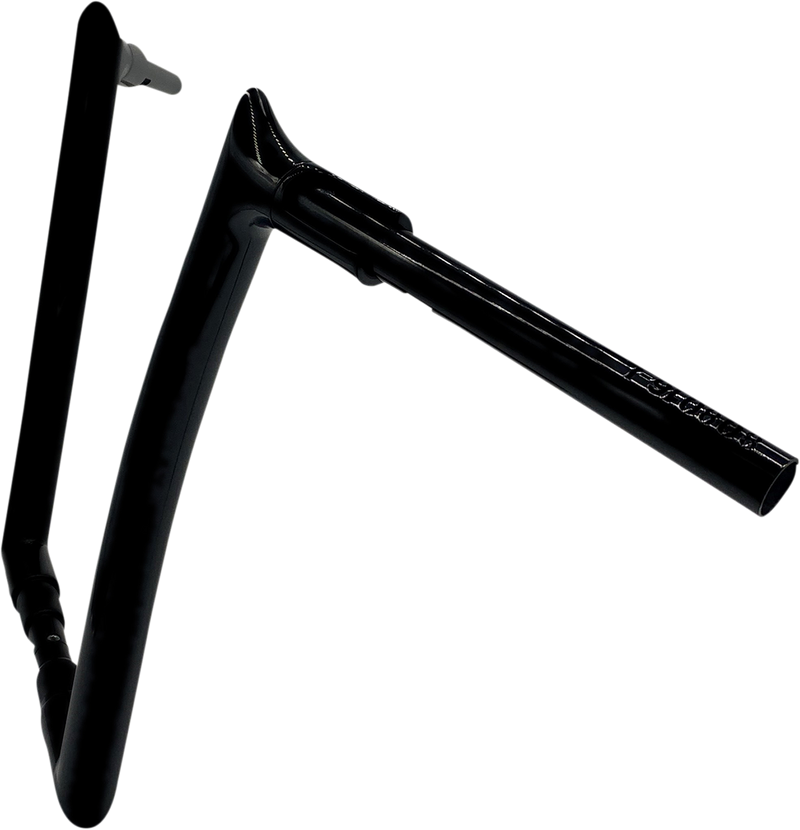

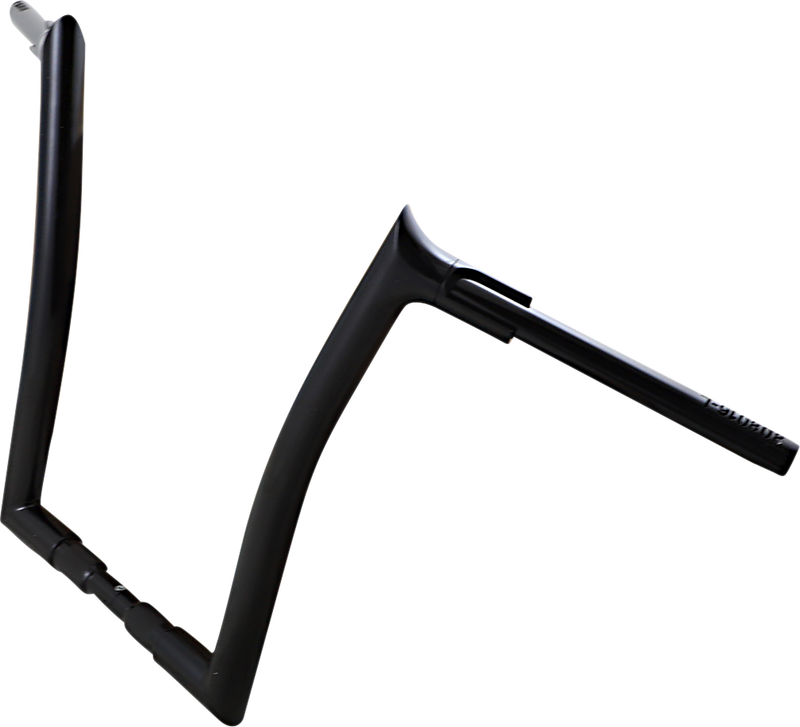

FAT BAGGERS INC. 1-1/2" EZ Install Pointed Top Handlebar - 16" - Black - FLHR '18-'20 - 808016-B
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Adjustable 1 1/2″ collar next to handlebar controls for custom finished look
- EZ Install: No more need to fight internal wiring with our handlebars. You can install wiring in minutes!
- Large internal radius that allows for EZ Pulling on wiring (Non welded top corner)
- CNC Mandrel Bent from 1 1/2″ Dia x .120″ wall heavy tube

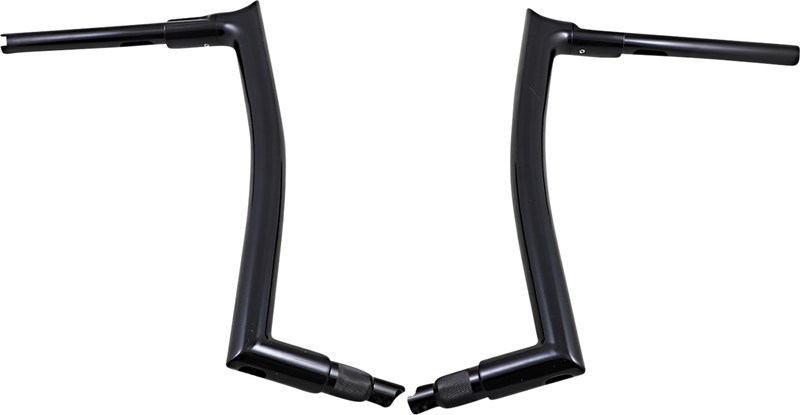

- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and easy to ship
- Made in the USA
NOTE: This item does not fit 2021 models.
NOTE: For models with hydraulic clutch.
Fitment Guide
| 2018-2020 | Harley Davidson | Road King Special FLHRXS |
| 2008 | Harley Davidson | CVO Road King FLHRSE |
Specs
| Riding Style | Street |
| Features | Notched for Throttle-By-Wire / Accepts Heated Grips / For Hydraulic Clutch / Knurled Center |
| Rise | 16" |
| Color/Finish | Black |
| Material | Steel |
| Type/Bend | Ape Hanger |
| Units | Each |
| Product Name | Handlebar |
| Base Color | Black |
| Clamping Diameter | 1-1/4" |
| Controls Diameter | 1" |
| Handlebar Diameter | 1-1/2" |
| Width | 35" |
| Center Width | 10-1/4" |
| Pullback/Sweep | 8" |
| Style | Batwing |
Delivery Info
Please Note - Warehouse Locations For This Part -
FAT BAGGERS INC. 1-1/2" EZ Install Pointed Top Handlebar - 16" - Black - FLHR '18-'20 - 808016-B
Gold Coast Warehouse- If your parts are in stock at our Gold Coast warehouse at the time of order, they will be shipped within 24hrs.
Supplier Warehouse - 2-3 Week Delivery- If your parts are located at our Supplier Warehouse, Delivery ETA is approx 2-3 weeks, as the parts are likely coming from our USA supplier warehouse. We will notify you once we receive it in Gold Coast warehouse and its on its way to you.
