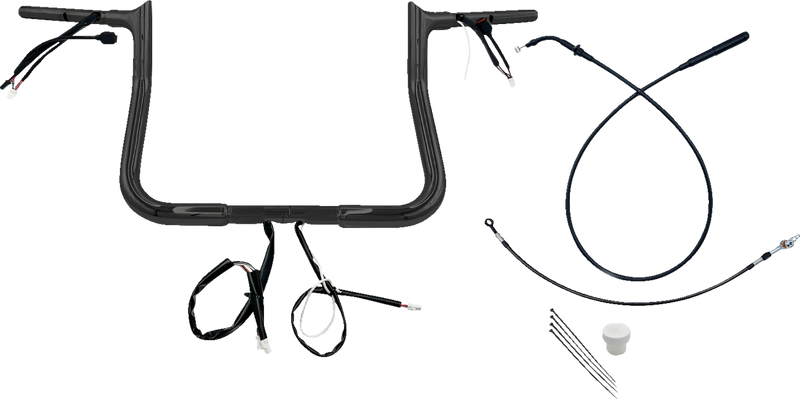

FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - 11" - Black - FLHX '23-'25 - 949011-B
🚚 Estimated Delivery: 09 Jul - 16 Jul
Our 11″ handlebars are “Reduced Reach” with 3 inches of additional pullback from our traditional handlebars. Recommended for shorter arm drivers that are shorter in height. If you are 5′ 9″ and below we would recommend our 11″ reduced reach handlebars. These handlebars will give you more of a bent arm reach, without feeling like you have too much of a bend at your elbows. These handlebars have lot of adjustment (approx. 4-5 inches of adjustment).
Features:
- Wired for your handlebar controls, new replacement wiring harness wired through the bars
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- CNC Mandrel Bent from 1 1/4″ Dia x .120″ wall heavy tube
- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and is easy to ship
- Made in the U.S.A.
- Accepts OEM heated grips.
Items included in this kit:
- EZ Install Wired Handlebars 1-1/4″ Pointed Top 11″ Black
- These handlebars are pre-installed with a can bus wire harness for controls
- EZ install upper clutch cable (Plus 2″) (Black Vinyl)
- EZ install brake line extension (Black Vinyl)
- Zip ties
Fitment:
- 2023 – 2024 FLHXSE (CVO Street Glide)
- 2024 FLHX (Street Glide)
Fitment Guide
| 2025 | Harley Davidson | Street Glide Ultra FLHXU |
| 2024-2025 | Harley Davidson | Street Glide FLHX |
| 2023-2025 | Harley Davidson | CVO Street Glide FLHXSE |
Specs
| Finish | Gloss |
| Center Width | 15-1/2" |
| Features | Accepts Heated Grips / Internal Wiring / Notched for Throttle-By-Wire / Wired / Knurled Center |
| Color/Finish | Gloss / Black |
| Controls Diameter | 1" |
| Width | 34" |
| Handlebar Diameter | 1-1/4" |
| Pullback/Sweep | 12" |
| Riding Style | Street |
| Base Color | Black |
| Material | Steel |
| Clamping Diameter | 1" |
| End Rise | 11" |
| Product Name | Handlebar |
| Type/Bend | Ape Hanger |
| Units | Each |
