FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - 12" - Chrome - FLHX '23-'25 - 949012
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Wired for your handlebar controls, new replacement wiring harness wired through the bars
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- CNC Mandrel Bent from 1 1/4″ Dia x .120″ wall heavy tube
- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and is easy to ship
- Made in the U.S.A.
- Accepts OEM heated grips.

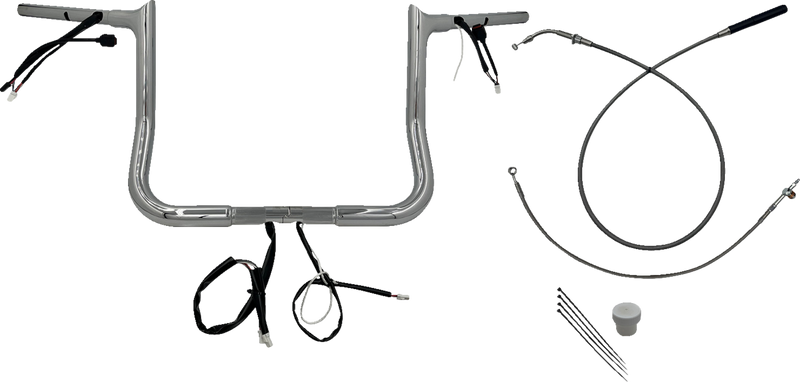

Items included in this kit:
- EZ Install Wired Handlebars 1-1/4″ Pointed Top 12″ Chrome
- These handlebars are pre-installed with a can bus wire harness for controls
- EZ install upper clutch cable (Plus 4″) (Stainless Braided)
- EZ install brake line extension (Stainless Braided)
- Zip ties
Fitment:
- 2023 – 2024 FLHXSE (CVO Street Glide)
- 2024 FLHX (Street Glide)
Fitment Guide
| 2025 | Harley Davidson | Street Glide Ultra FLHXU |
| 2024-2025 | Harley Davidson | Street Glide FLHX |
| 2023-2025 | Harley Davidson | CVO Street Glide FLHXSE |
Specs
| Features | Internal Wiring / Notched for Throttle-By-Wire / Wired / Knurled Center / Accepts Heated Grips |
| Material | Steel |
| Clamping Diameter | 1" |
| Controls Diameter | 1" |
| Product Name | Handlebar |
| Base Color | Silver |
| End Rise | 12" |
| Color/Finish | Chrome |
| Handlebar Diameter | 1-1/4" |
| Riding Style | Street |
| Finish | Chrome |
| Type/Bend | Ape Hanger |
| Units | Each |
| Center Width | 15-1/2" |
| Pullback/Sweep | 9" |
| Width | 36" |
Delivery Info
Please Note - Warehouse Locations For This Part -
FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - 12" - Chrome - FLHX '23-'25 - 949012
Gold Coast Warehouse- If your parts are in stock at our Gold Coast warehouse at the time of order, they will be shipped within 24hrs.
Supplier Warehouse - 2-3 Week Delivery- If your parts are located at our Supplier Warehouse, Delivery ETA is approx 2-3 weeks, as the parts are likely coming from our USA supplier warehouse. We will notify you once we receive it in Gold Coast warehouse and its on its way to you.
