FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - 14" - Chrome 949014

FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - 14" - Chrome - FLHX '23-'25 - 949014

by FAT BAGGERS INC.
SKU 0601-6832
Sold out
$1,632.95 - $1,632.95
$1,632.95
$1,632.95 - $1,632.95
$1,632.95

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
  • Wired for your handlebar controls, new replacement wiring harness wired through the bars
  • Remove the bars from the box and plug them into your motorcycle
  • No more need to fight internal wiring
  • Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
  • CNC Mandrel Bent from 1 1/4″ Dia x .120″ wall heavy tube
  • Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and is easy to ship
  • Made in the U.S.A.
  • Accepts OEM heated grips.

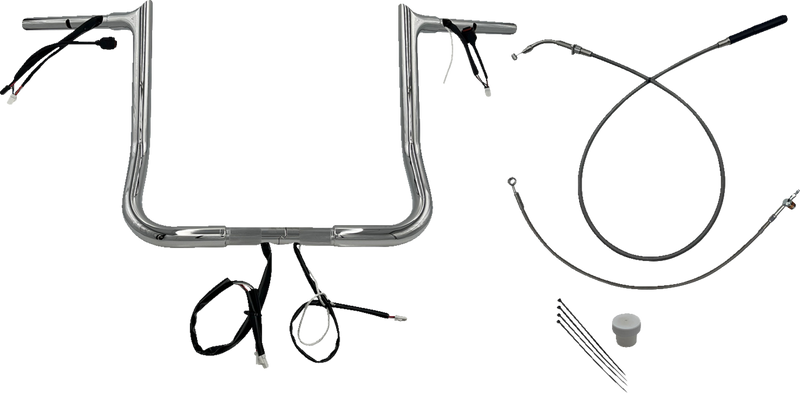

Items included in this kit:

  • EZ Install Wired Handlebars 1-1/4″ Pointed Top 14″ Chrome
  • These handlebars are pre-installed with a can bus wire harness for controls
  • EZ install upper clutch cable (Plus 6″) (Stainless Braided)
  • EZ install brake line extension (Stainless Braided)
  • Zip ties

Fitment:

  • 2023 – 2024 FLHXSE (CVO Street Glide)
  • 2024 FLHX (Street Glide)
Specs
Product Name Handlebar
Pullback/Sweep 9"
Controls Diameter 1"
End Rise 14"
Features Internal Wiring / Notched for Throttle-By-Wire / Wired / Accepts Heated Grips / Knurled Center
Finish Chrome
Clamping Diameter 1"
Material Steel
Center Width 15-1/2"
Width 36"
Color/Finish Chrome
Handlebar Diameter 1-1/4"
Riding Style Street
Type/Bend Ape Hanger
Units Each
Base Color Silver
