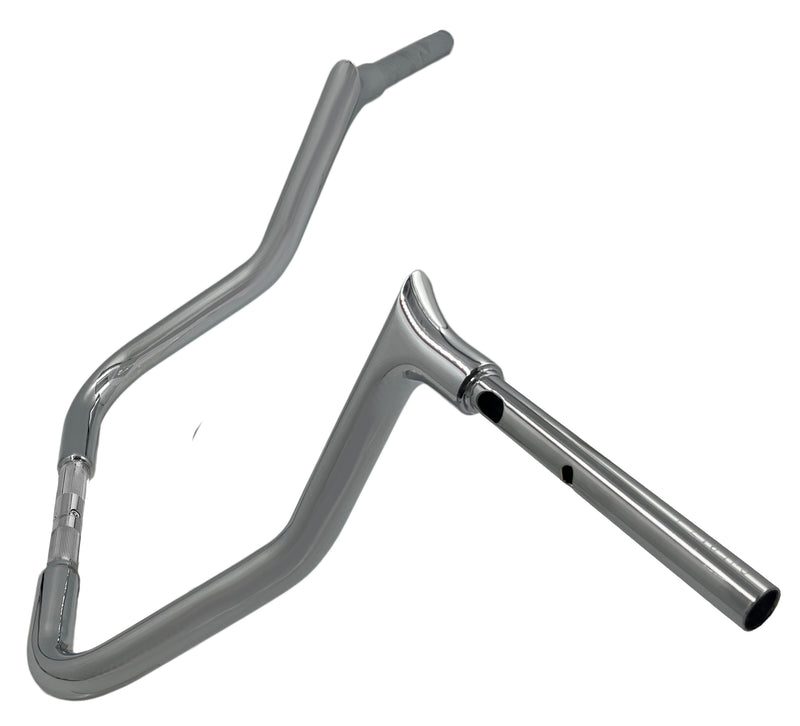

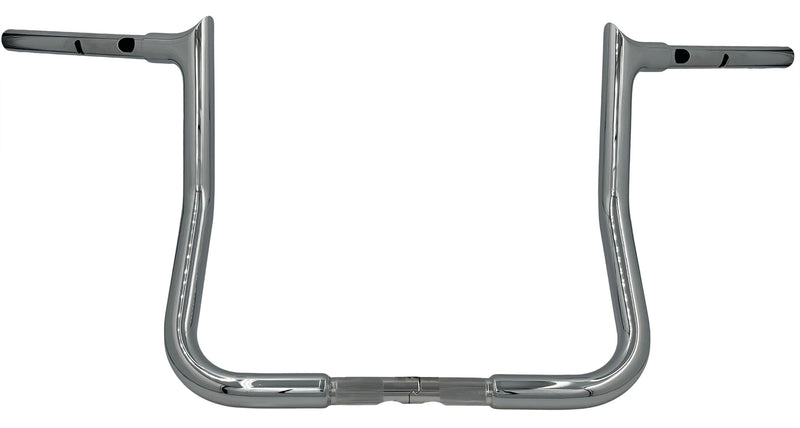

FAT BAGGERS INC. 1-1/4" EZ Install Pointed Top Handlebar - Reduced Reach - 13" - Chrome - FLHX '23-'25 - 945013
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- The NEW 13″ Reduced Reach handlebar provides 3 inches of additional pullback from our traditional handlebars, for a total of 12 inches of pullback.
- Designed to provide more of a bent arm reach for increased comfort while riding.
- Unique bend geometry allows handlebars to be adjusted 4-5 inches without sacrificing clearance with the gas tank or fairing.
- EZ Install: No more need to fight internal wiring with our handlebars. You can install wiring in minutes!
- Large internal radius that allows for EZ Pulling on wiring (Non welded top corner)
- CNC Mandrel Bent from 1 1/4″ Dia x .120″ wall heavy tube
- Available in chrome or gloss black powder-coated finishes
- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and easy to ship
-
Made in the USA
Fitment Guide
| 2025 | Harley Davidson | Street Glide Ultra FLHXU |
| 2024-2025 | Harley Davidson | Street Glide FLHX |
| 2023-2025 | Harley Davidson | CVO Street Glide FLHXSE |
Specs
| Features | Internal Wiring / Notched for Throttle-By-Wire / Accepts Heated Grips / Knurled Center |
| Riding Style | Street |
| Material | Steel |
| Width | 34" |
| Finish | Chrome |
| Controls Diameter | 1" |
| Handlebar Diameter | 1-1/4" |
| Type/Bend | Ape Hanger |
| Units | Each |
| Center Width | 15-1/2" |
| Clamping Diameter | 1" |
| End Rise | 13" |
| Pullback/Sweep | 12" |
| Color/Finish | Chrome |
| Product Name | Handlebar |
| Base Color | Silver |
