FAT BAGGERS INC. EZ Install Wired 1-1/2" Flat Top Handlebar Kit - 12" - Black - FLTR '16-'20 - 602312-B
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Wired for your handlebar controls, including a throttle-by-wire sensor installed
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring with our handlebars
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- Adjustable 1-1/2″ collar next to handlebar controls for a custom finished look
- CNC mandrel bent from 1-1/2″ Dia. x .095″ wall heavy tube
- Bolt-together, 2-piece handlebar takes up half the shelf space
- Made in the U.S.A.
- Does not replace existing lines and cables, but extends them.
- Accepts OEM heated grips.
- Heated Grip Extension sold separately.

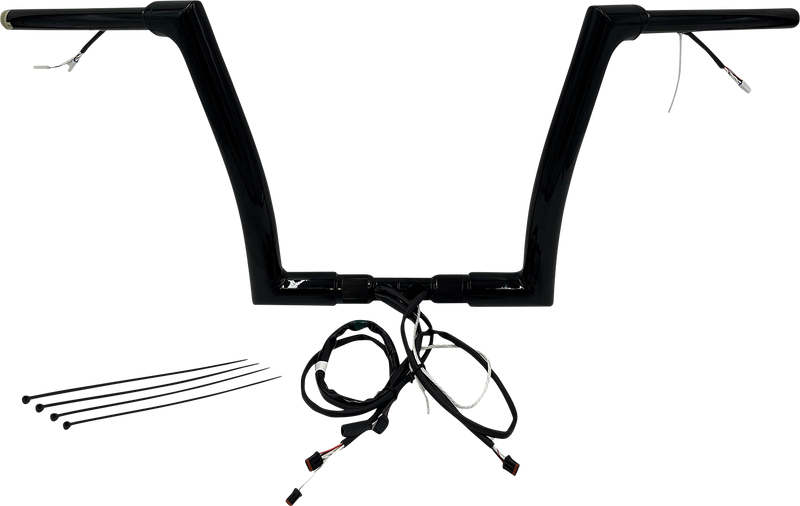

Items included in this kit:
- EZ Install Wired Handlebars 1-1/2″ Flat Top 12″ Black
- These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
- Zip ties
Fitment:
- FOR 16-20 FLTRX/S, 16-20 FLTRU
Part Notices:
- Heated grip extension sold separately
- Our handlebar kits do not replace existing lines and cables, we extend them.
- Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.
Fitment Guide
| 2020 | Harley Davidson | Road Glide Limited FLTRK |
| 2018-2020 | Harley Davidson | CVO Road Glide FLTRXSE |
| 2016-2020 | Harley Davidson | Road Glide FLTR |
| 2016-2020 | Harley Davidson | Road Glide Special FLTRXS |
| 2016-2019 | Harley Davidson | Road Glide Ultra FLTRU |
| 2016 | Harley Davidson | CVO Road Glide Ultra FLTRUSE |
Specs
| Color/Finish | Black |
| End Rise | 12" |
| Features | Wired / Accepts Heated Grips / Internal Wiring |
| Type/Bend | Ape Hanger |
| Units | Kit |
| Style | Throttle-By-Wire |
| Product Name | Handlebar |
| Center Width | 10-1/4" |
| Width | 35" |
| Base Color | Black |
| Controls Diameter | 1" |
| Handlebar Diameter | 1-1/2" |
| Rise | 12" |
| Pullback/Sweep | 8" |
| Riding Style | Street |
| Clamping Diameter | 1-1/4" |
| Material | Steel |
Delivery Info
Please Note - Warehouse Locations For This Part -
FAT BAGGERS INC. EZ Install Wired 1-1/2" Flat Top Handlebar Kit - 12" - Black - FLTR '16-'20 - 602312-B
Gold Coast Warehouse- If your parts are in stock at our Gold Coast warehouse at the time of order, they will be shipped within 24hrs.
Supplier Warehouse - 2-3 Week Delivery- If your parts are located at our Supplier Warehouse, Delivery ETA is approx 2-3 weeks, as the parts are likely coming from our USA supplier warehouse. We will notify you once we receive it in Gold Coast warehouse and its on its way to you.
