FAT BAGGERS INC. EZ Install Wired 1-1/2" Pointed Top Handlebar Kit - 12" - Black 802312-B

FAT BAGGERS INC. EZ Install Wired 1-1/2" Pointed Top Handlebar Kit - 12" - Black - FLTR '16-'20 - 802312-B

by FAT BAGGERS INC.
SKU 0601-6194
$1,629.95 - $1,629.95
$1,629.95
$1,629.95 - $1,629.95
$1,629.95

🚚 Estimated Delivery: 09 Jul - 16 Jul

  • Wired for your handlebar controls, including a throttle-by-wire sensor installed
  • Remove the bars from the box and plug them into your motorcycle
  • No more need to fight internal wiring with our handlebars
  • Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
  • Adjustable 1-1/2″ collar next to handlebar controls for a custom finished look
  • CNC mandrel bent from 1-1/2″ Dia. x .095″ wall heavy tube
  • Bolt-together, 2-piece handlebar takes up half the shelf space
  • Made in the U.S.A.
  • Does not replace existing lines and cables, but extends them.
  • Accepts OEM heated grips.
  • Heated Grip Extension sold separately.

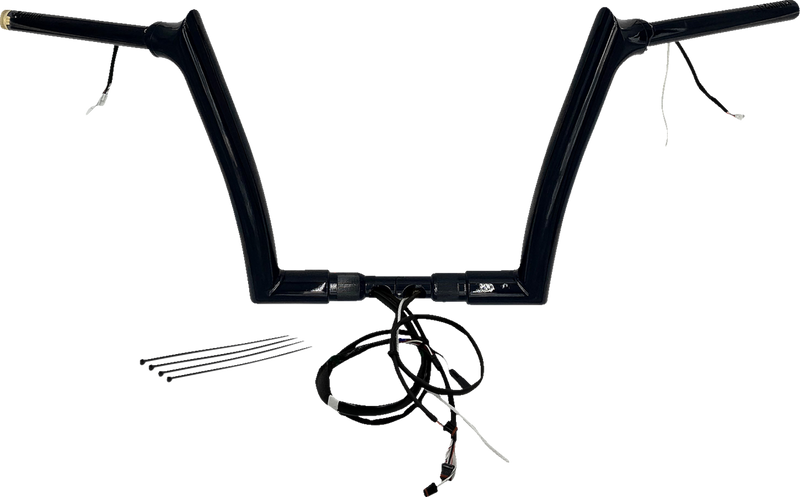

Items included in this kit:

  • EZ Install Wired Handlebars 1-1/2″ Pointed Top 12″ Black
  • These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
  • Zip ties

Fitment:

  • FOR 16-20 FLTRX/S, 16-20 FLTRU

Part Notices:

  • Heated grip extension sold separately
  • Our handlebar kits do not replace existing lines and cables, we extend them.
  • Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.

Fitment Guide
2020 Harley Davidson Road Glide Limited FLTRK
2018-2020 Harley Davidson CVO Road Glide FLTRXSE
2016-2020 Harley Davidson Road Glide FLTR
2016-2020 Harley Davidson Road Glide Special FLTRXS
2016-2019 Harley Davidson Road Glide Ultra FLTRU
2016 Harley Davidson CVO Road Glide Ultra FLTRUSE
Specs
Color/Finish Black
End Rise 12"
Type/Bend Ape Hanger
Material Steel
Features Wired / Internal Wiring / Accepts Heated Grips
Pullback/Sweep 8"
Center Width 10-1/4"
Riding Style Street
Base Color Black
Handlebar Diameter 1-1/2"
Rise 12"
Style Throttle-By-Wire
Width 35"
Controls Diameter 1"
Product Name Handlebar
Clamping Diameter 1-1/4"
Units Kit

Delivery Info

Please Note - Warehouse Locations For This Part -

FAT BAGGERS INC. EZ Install Wired 1-1/2" Pointed Top Handlebar Kit - 12" - Black - FLTR '16-'20 - 802312-B

Gold Coast Warehouse- If your parts are in stock at our Gold Coast warehouse at the time of order, they will be shipped within 24hrs.

Supplier Warehouse - 2-3 Week Delivery- If your parts are located at our Supplier Warehouse, Delivery ETA is approx 2-3 weeks, as the parts are likely coming from our USA supplier warehouse. We will notify you once we receive it in Gold Coast warehouse and its on its way to you.
