FAT BAGGERS INC. EZ Install Wired 1-1/4" Pointed Top Handlebar Kit - 14" - Black 902914-B

FAT BAGGERS INC. EZ Install Wired 1-1/4" Pointed Top Handlebar Kit - 14" - Black - FLTR '16-'20 - 902914-B

by FAT BAGGERS INC.
SKU 0601-6161
$1,847.95 - $1,847.95
$1,847.95
$1,847.95 - $1,847.95
$1,847.95

🚚 Estimated Delivery: 09 Jul - 16 Jul

  • Wired for your handlebar controls, including a throttle-by-wire sensor installed
  • Remove the bars from the box and plug them into your motorcycle
  • No more need to fight internal wiring with our handlebars
  • Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
  • CNC mandrel bent from 1-1/4″ Dia. x .120″ wall heavy tube
  • Bolt-together, 2-piece handlebar takes up half the shelf space
  • Made in the U.S.A.
  • Does not replace existing lines and cables, but extends them.
  • Accepts OEM heated grips.
  • Heated Grip Extension sold separately.
  • All ’21-’23 kits will include black brake lines and black clutch extensions.

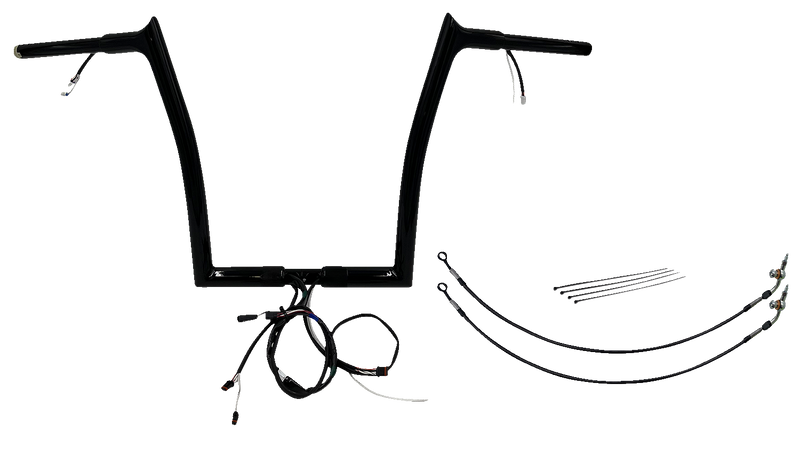

Items included in this kit:

  • EZ Install Wired Handlebars 1-1/4″ Pointed Top 14″ Black
  • These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
  • Black hydraulic clutch extension
  • Black brake line extension
  • Zip ties

Fitment:

  • FOR 16-20 FLTRX/S

Part Notices:

  • Heated grip extension sold separately
  • Our handlebar kits do not replace existing lines and cables, we extend them.
  • Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.

Fitment Guide
2020 Harley Davidson Road Glide Limited FLTRK
2018-2020 Harley Davidson CVO Road Glide FLTRXSE
2016-2020 Harley Davidson Road Glide FLTR
2016-2020 Harley Davidson Road Glide Special FLTRXS
2016-2019 Harley Davidson Road Glide Ultra FLTRU
2016 Harley Davidson CVO Road Glide Ultra FLTRUSE
Specs
Center Width 10-1/4"
Clamping Diameter 1-1/4"
Riding Style Street
Product Name Handlebar
Pullback/Sweep 8"
Rise 14"
End Rise 14"
Material Steel
Controls Diameter 1"
Handlebar Diameter 1-1/4"
Units Kit
Color/Finish Black
Features Internal Wiring / Wired / Accepts Heated Grips
Style Throttle-By-Wire
Width 35"
Base Color Black
Type/Bend Ape Hanger
