FAT BAGGERS INC. EZ Install Wired Handlebar Kit - 1-1/2" - Flat Top - 16" - Black - FLHX '23-'25 - 649016-B
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
- Wired for your handlebar controls, new replacement wiring harness wired through the bars
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- CNC Mandrel Bent from 1 1/2″ Dia x .120″ wall heavy tube
- Revolutionary bolt together, 2-piece handlebar that takes up half the shelf space and is easy to ship
- Made in the U.S.A.
- Accepts OEM heated grips.

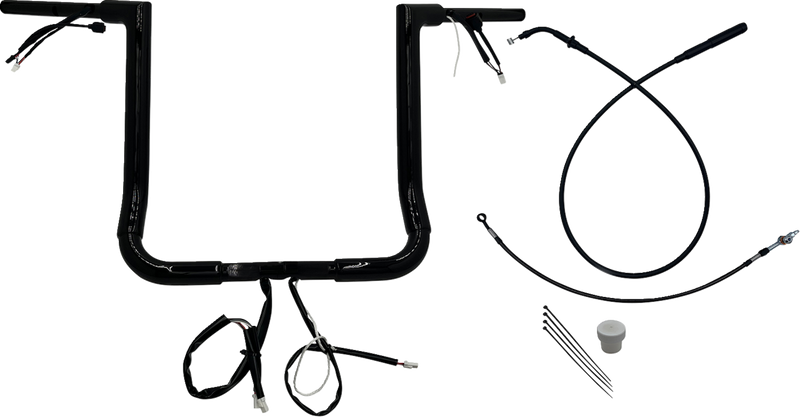

Items included in this kit:
- EZ Install Wired Handlebars 1-1/2″ Flat Top 16″ Black
- These handlebars are pre-installed with a can bus wire harness for controls
- EZ install upper clutch cable (Plus 8″) (Black Vinyl)
- EZ install brake line extension (Black Vinyl)
- Zip ties
Fitment:
- 2023 – 2024 FLHXSE (CVO Street Glide)
- 2024 FLHX (Street Glide)
Part Notices:
- Heated grip extension sold separately (Item #2120-0917)
- Our handlebar kits do not replace existing lines and cables, we extend them.
Fitment Guide
| 2025 | Harley Davidson | Street Glide Ultra FLHXU |
| 2024-2025 | Harley Davidson | Street Glide FLHX |
| 2023-2025 | Harley Davidson | CVO Street Glide FLHXSE |
Specs
| Base Color | Black |
| Center Width | 15" |
| Color/Finish | Powder-Coated / Black |
| Features | Wired / Accepts Heated Grips / Notched for Throttle-By-Wire / Internal Wiring |
| Height | 16" |
| Material | Steel |
| Product Name | Handlebar |
| Finish | Powder-Coated |
| End Rise | 16" |
| Clamping Diameter | 1" |
| Rise | 16" |
| Pullback/Sweep | 9" |
| Riding Style | Street |
| Style | Batwing |
| Units | Kit |
| Controls Diameter | 1" |
| Handlebar Diameter | 1-1/2" |
| Type/Bend | Flat |
| Width | 36" |
