FEULING PARTS Beehive Valve Spring Kit - Harley-Davidson '17-'24 - M8 1108
🚚 Estimated Delivery: 09 Jul - 16 Jul
W/Ti Retainers
FEULING ENDURANCE BEEHIVE valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required. Endurance springs are machined from a premium grade
Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed
thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life
to exceed the high demands of engines from stock to performance.
FEULING BEEHIVE valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable steel retainers.
FEULING BEEHIVE valve springs are packaged as a matched set and must be installed at the correct OPEN HEIGHT. Matching max cam lift to the open height spec of the valve springs is essential for optimal valvetrain operation and spring life. See included spring spec chart.
FEULING ENDURANCE SPRINGS are a direct bolt-in replacement up to 565 cam lift with no machining or rocker box clearancing required.
FEULING HIGH LOAD SPRINGS are good up to .650 lift machining may be REQUIRED depending on cam lift.

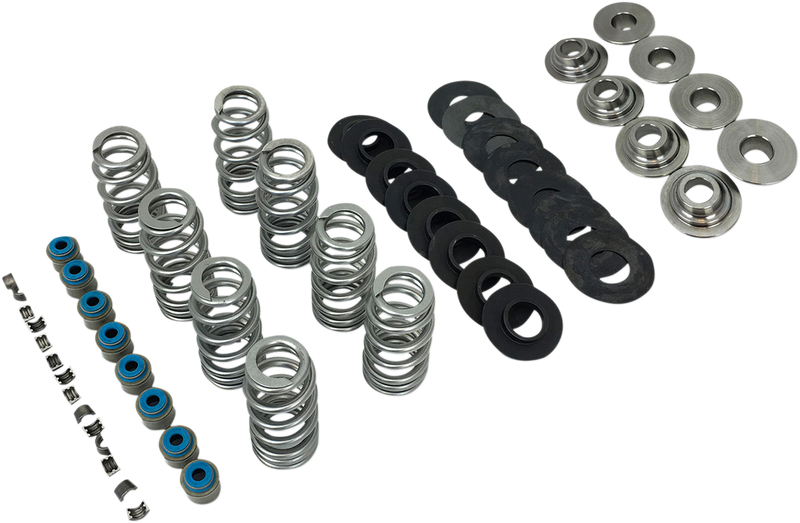

Kits include: matched set of FEULING ENDURACE BEEHIVE valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.
Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 565 lift for M8
MILWAUKEE EIGHT
- SEAT Lbs. / INSTALLED HEIGHT
- 134 Lbs. @ 1.375 (0.405 Lift)
- 127 Lbs. @ 1.405 (0.435 Lift)
- 125 Lbs. @ 1.415 (0.445 Lift)
- 121 Lbs. @ 1.435 (0.465 Lift)
- 116 Lbs. @ 1.455 (0.485 Lift)
- 113 Lbs. @ 1.470 (0.500 Lift)
- 109 Lbs. @ 1.490 (0.520 Lift)
- 103 Lbs. @ 1.520 (0.550 Lift)
- 226 Lbs @ 0.970 OPEN HEIGHT
- Coil Bind @ .920
- Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio
FITS: M-Eight 17-22, stock 6mm valve stems with triple groove, this kit includes Ti Retainers, Stock & SE heads
Fitment Guide
| 2024 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST | - | - |
| 2024 | Harley-Davidson | FLI Hydra-Glide Revival | - | - |
| 2024 | Harley-Davidson | Road Glide Police FLTRXP | - | - |
| 2023-2024 | Harley-Davidson | FXBR Breakout 117 | - | - |
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King | - | - |
| 2022-2024 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022-2024 | Harley-Davidson | FXLRST Low Rider ST 117 | - | - |
| 2022-2023 | Harley-Davidson | FLHXST Street Glide ST | - | - |
| 2022-2023 | Harley-Davidson | FLTRKSE CVO Road Glide Limited | - | - |
| 2022-2023 | Harley-Davidson | FLTRXST Road Glide ST | - | - |
| 2022 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 | - | - |
| 2021-2024 | Harley-Davidson | FXBBS Street Bob 114 | - | - |
| 2021 | Harley-Davidson | FLH Electra Glide Revival | - | - |
| 2020-2024 | Harley-Davidson | FLTRK Road Glide Limited | - | - |
| 2020-2024 | Harley-Davidson | FXST Softail Standard 107 | - | - |
| 2020-2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2019-2022 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 | - | - |
| 2018-2024 | Harley-Davidson | FLHCS Heritage Classic 114 | - | - |
| 2018-2024 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2024 | Harley-Davidson | FLTRXSE CVO Road Glide | - | - |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 | - | - |
| 2018-2021 | Harley-Davidson | FLHC Heritage Classic 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSB Sport Glide 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSL Softail Slim 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBB Street Bob 107 | - | - |
| 2018-2020 | Harley-Davidson | FXLR Low Rider 107 | - | - |
| 2018-2020 | Harley-Davidson | FLDE Deluxe 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2018-2019 | Harley-Davidson | FXFB Fat Bob 107 | - | - |
| 2018-2019 | Harley-Davidson | FLFB Fat Boy 107 | - | - |
| 2018-2019 | Harley-Davidson | FXBR Breakout 107 | - | - |
| 2017-2024 | Harley-Davidson | FLHRXS Road King Special | - | - |
| 2017-2024 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | - | - |
| 2017-2024 | Harley-Davidson | FLHTK Ultra Limited | - | - |
| 2017-2024 | Harley-Davidson | FLRT Freewheeler | - | - |
| 2017-2024 | Harley-Davidson | FLHX Street Glide | - | - |
| 2017-2024 | Harley-Davidson | FLHXSE CVO Street Glide | - | - |
| 2017-2024 | Harley-Davidson | FLTRX Road Glide | - | - |
| 2017-2024 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 2017-2024 | Harley-Davidson | Road King Police FLHP | - | - |
| 2017-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2017-2022 | Harley-Davidson | FLHR Road King | - | - |
| 2017-2021 | Harley-Davidson | FLHTKSE CVO Limited | - | - |
| 2017-2019 | Harley-Davidson | FLHTKL Ultra Limited Low | - | - |
| 2017-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic | - | - |
| 2017-2019 | Harley-Davidson | FLTRU Road Glide Ultra | - | - |
Specs
| PRODUCT NAME | SPRING |
| TYPE | VALVE |
| STYLE | OVATE WIRE BEEHIVE |
| MODEL | ENDURANCE BEEHIVE |
| MATERIAL | CHROME-SILICON / TITANIUM |
| UNITS | KIT |
| RIDING STYLE | STREET |
