FEULING PARTS Beehive Valve Springs - Harley-Davidson '84-'04 - 1100
🚚 Estimated Delivery: 26 Aug - 02 Sep
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
FEULING ENDURANCE BEEHIVE valve springs are a direct bolt in replacement up to 650 lift camshafts no spring seat machining required. Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.
FEULING BEEHIVE valve springs use a much smaller and lighter weight retainer which drastically reduces the valve weight creating a much quicker revving and smoother motion than comparable dual valve springs.
FEULING endurance springs are a direct bolt-in replacement up to 650 cam lift no machining or rocker box clearancing required.
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
Available for 5/16 and 7mm valves
FEULING BEEHIVE valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs

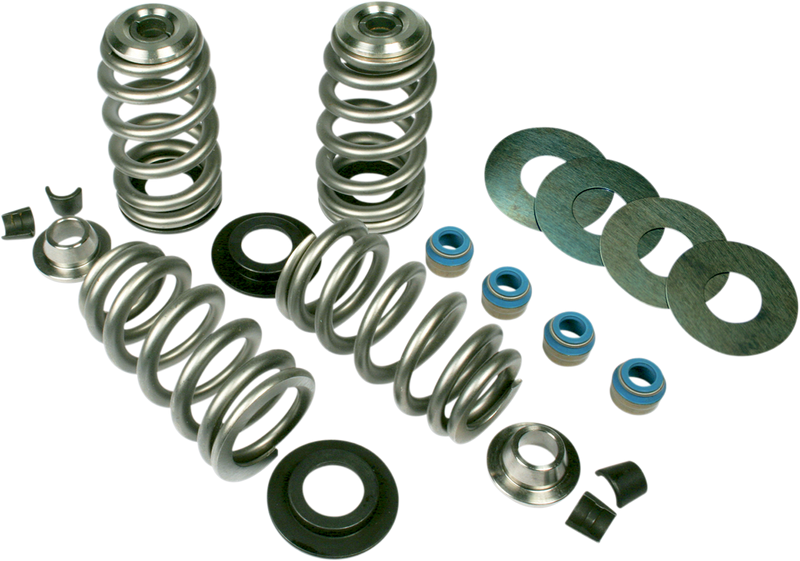

Kits include: FEULING ENDURACE BEEHIVE valve springs, lightweight 7 Degree Titanium heat treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.
Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 650 Lift
- SEAT Lbs. / INSTALLED HEIGHT
- 198 Lbs. @ 1.685 (0.535 Lift)
- 194 Lbs. @ 1.703 (0.553 Lift)
- 190 Lbs. @ 1.724 (0.574 Lift)
- 187 Lbs. @ 1.754 (0.604 Lift)
- 185 Lbs. @ 1.780 (0.630 Lift)
- 160 Lbs @ 1.800 (0.650 Lift)
- 375 Lbs @ 1.150 OPEN HEIGHT
- Coil Bind @ 1.100
FITS: EVO/Twin Cam Big Twin 84-04, XL 86-03, Buell 95-02, 10 Degree Std. 5/16 valve stem & keeper groove - Includes Springs, Ti Retainers, Seats, Seals, Keepers, seat shims
Fitment Guide
| 2004 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2004 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2004 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2004 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2004 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2003-2004 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2002-2004 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2001-2004 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2001-2004 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2001-2004 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2001-2004 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2001-2004 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI | - | - |
| 2000-2004 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2000 | Harley-Davidson | FXR 4 | - | - |
| 1999-2004 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1999-2004 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 1999 | Harley-Davidson | FXR 3 | - | - |
| 1999 | Harley-Davidson | FXR 2 | - | - |
| 1998-2004 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 1998-2004 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 1998-2002 | Harley-Davidson | Road Glide FLTR | - | - |
| 1997-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 1996-2004 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1996-2003 | Harley-Davidson | 1200 Sport XLS | - | - |
| 1996-2003 | Harley-Davidson | 1200 Custom XLC | - | - |
| 1996 | Harley-Davidson | Tour Glide Ultra Classic EFI FLTCU | - | - |
| 1995-2004 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
| 1995-2004 | Harley-Davidson | Super Glide FXD | - | - |
| 1995-2004 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 1995-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
| 1995-1997 | Harley-Davidson | Softail Bad Boy FXSTSB | - | - |
| 1994-2004 | Harley-Davidson | Road King FLHR | - | - |
| 1994-1996 | Harley-Davidson | Softail Heritage Special FLSTN | - | - |
| 1993-2004 | Harley-Davidson | Low Rider FXDL | - | - |
| 1993-2004 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1993 | Harley-Davidson | Softail Nostalgia FLSTN | - | - |
| 1992 | Harley-Davidson | Dyna Glide Custom FXDC | - | - |
| 1990-2004 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 1990-1993 | Harley-Davidson | Low Rider Convertible FXRS-CONV | - | - |
| 1989-1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
| 1989-1996 | Harley-Davidson | Tour Glide Ultra Classic FLTCU | - | - |
| 1988-2004 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 1988-1993 | Harley-Davidson | Low Rider Sport FXRS-SP | - | - |
| 1987-2004 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 1987-2003 | Harley-Davidson | 883 Hugger XLH | - | - |
| 1987-1994 | Harley-Davidson | Low Rider Custom FXLR | - | - |
| 1987-1993 | Harley-Davidson | Low Rider FXRS | - | - |
| 1987-1993 | Harley-Davidson | Electra Glide Sport FLHS | - | - |
| 1987 | Harley-Davidson | Low Rider Chrome FXRC | - | - |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 1986-1999 | Harley-Davidson | Softail Custom FXSTC | - | - |
| 1986-1995 | Harley-Davidson | 883 Deluxe XLH | - | - |
| 1986-1994 | Harley-Davidson | Super Glide FXR | - | - |
| 1986-1990 | Harley-Davidson | Softail Heritage FLST | - | - |
| 1986-1987 | Harley-Davidson | Sportster 1100 XLH | - | - |
| 1986 | Harley-Davidson | Sport Glide Grand Touring FXRD | - | - |
| 1985-1987, 1995-2004 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1985-1986 | Harley-Davidson | Wide Glide FXWG | - | - |
| 1985 | Harley-Davidson | Low Rider FXSB | - | - |
| 1985 | Harley-Davidson | Low Glide Custom FXRC | - | - |
| 1985 | Harley-Davidson | Fat Bob FXEF | - | - |
| 1984-2004 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 1984-1994 | Harley-Davidson | Tour Glide Classic FLTC | - | - |
| 1984-1993 | Harley-Davidson | Softail Standard FXST | - | - |
| 1984-1993 | Harley-Davidson | Sport Glide FXRT | - | - |
| 1984-1985 | Harley-Davidson | Low Glide FXRS | - | - |
| 1984 | Harley-Davidson | Disc Glide FXRDG | - | - |
Specs
| PRODUCT NAME | SPRING KIT |
| TYPE | VALVE |
| APPLICATION | INTAKE / EXHAUST |
| STYLE | OVATE WIRE BEEHIVE |
| MODEL | ENDURANCE BEEHIVE |
| COLLAR MATERIAL | TITANIUM |
| MATERIAL | STEEL |
| STEM DIAMETER | 7.056 MM |
| SPRING LIFT | 0.650" / 0,650" |
| UNITS | KIT |
| RIDING STYLE | STREET |
