FEULING OIL PUMP CORP. Beehive Valve Springs - Harley-Davidson '02-'20 - 1105

FEULING ENDURANCE BEEHIVE valve springs are a direct bolt in replacement up to 650 lift camshafts no spring seat machining required. Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.

FEULING BEEHIVE valve springs use a much smaller and lighter weight retainer which drastically reduces the valve weight creating a much quicker revving and smoother motion than comparable dual valve springs.
FEULING endurance springs are a direct bolt-in replacement up to 650 cam lift no machining or rocker box clearancing required.
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
Available for 5/16 and 7mm valves
FEULING BEEHIVE valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs

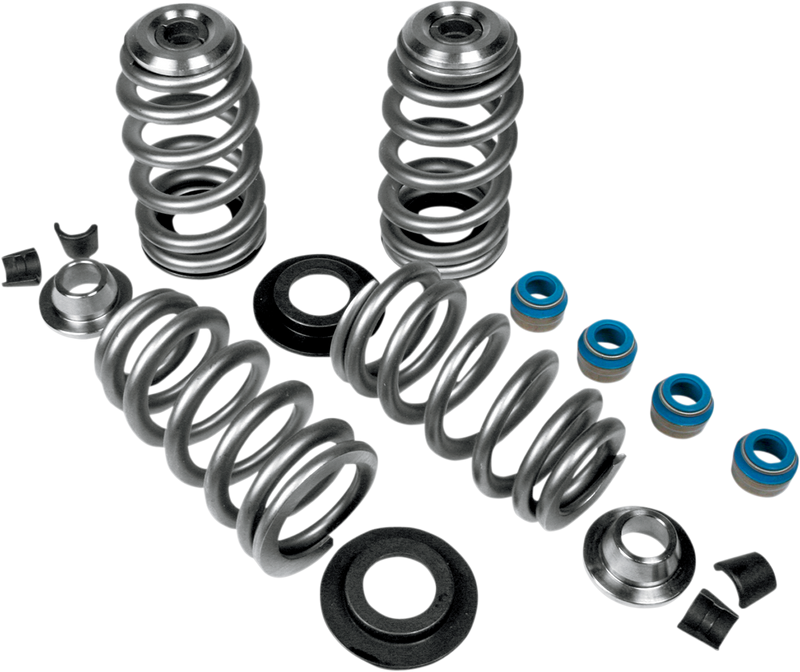

Kits include: FEULING ENDURACE BEEHIVE valve springs, lightweight 7 Degree Titanium heat treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.

Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 650 Lift

• SEAT Lbs. / INSTALLED HEIGHT
• 198 Lbs. @ 1.685 (0.535 Lift)
• 194 Lbs. @ 1.703 (0.553 Lift)
• 190 Lbs. @ 1.724 (0.574 Lift)
• 187 Lbs. @ 1.754 (0.604 Lift)
• 185 Lbs. @ 1.780 (0.630 Lift)
• 160 Lbs @ 1.800 (0.650 Lift)
• 375 Lbs @ 1.150 OPEN HEIGHT
• Coil Bind @ 1.100

Feuling does not recommend tuning beyond stock emissions standards.

FITS: Twin Cam 05-17, XL 04-17, XR 1200 09-17, 7 Degree, 7mm valve stem with stock triple keeper groove - Includes Springs, Ti Retainers, Seats, Seals, Keepers, seat shims
