FEULING PARTS 472 Cam Kit - HP+ - Harley-Davidson '17-'24 - M8 1450
🚚 Estimated Delivery: 09 Jul - 16 Jul

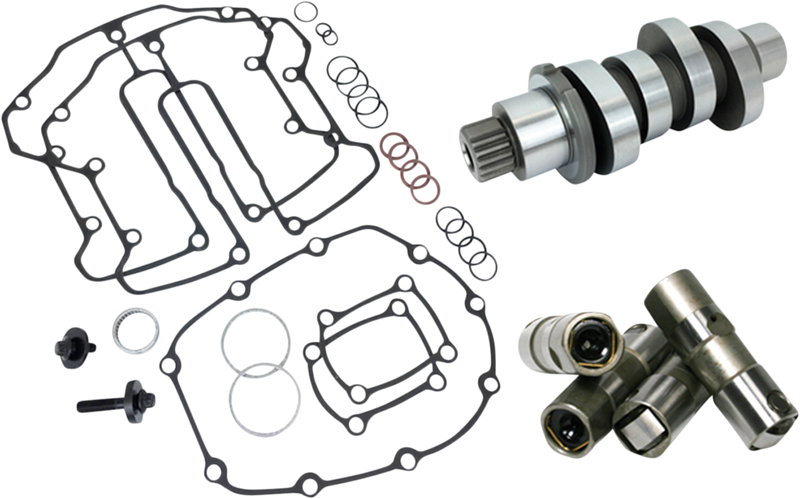

FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087
Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.
HP+ kits come with HP+ lifters
472 CAM - The 472 Reaper is a great all-around camshaft and Feulings go to for 4 1/2 stroke 114 - 117 looking for a little more than our 465 grind and wanting a bolt-in. The 472 has a great bottom end with substantial gains above 2,900 RPM when compared to stock. Responds very well to increased bore and or compression, exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107 or #1108..
Cam Part # 1350
Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .468 8 BTDC 25 ABDC 213 .117 98.5
Exhaust .472 50.7 BBDC 7.75 ATDC 238 .110 111.5
RPM range: 1,900 - 5,900 Grind: 472 Overlap: 16
Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio
- Include camshafts, lifters and a cam installation kit that includes the cam bearing, cam/crank hardware
- Kit also includes gasket/O-ring kit that allows installation of Feuling Heavy-Duty HP+ .0165" wall one-piece pushrods or factory one-piece pushrods
- Due to the unstable nature of this 4-valve engine design with one rocker arm activating two valve springs, Feuling highly recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
NOTE:
Includes:
• Reaper Series 472 Camshaft
• HP+Series Lifters
• Cam Installation Kit
Fitment Guide
| 2024 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST | - | - |
| 2024 | Harley-Davidson | FLI Hydra-Glide Revival | - | - |
| 2024 | Harley-Davidson | Road Glide Police FLTRXP | - | - |
| 2023-2024 | Harley-Davidson | FXBR Breakout 117 | - | - |
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King | - | - |
| 2022-2024 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022-2024 | Harley-Davidson | FXLRST Low Rider ST 117 | - | - |
| 2022-2023 | Harley-Davidson | FLHXST Street Glide ST | - | - |
| 2022-2023 | Harley-Davidson | FLTRXST Road Glide ST | - | - |
| 2022 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2022 | Harley-Davidson | FLTRKSE CVO Road Glide Limited | - | - |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 | - | - |
| 2021-2024 | Harley-Davidson | FXBBS Street Bob 114 | - | - |
| 2021 | Harley-Davidson | FLH Electra Glide Revival | - | - |
| 2020-2024 | Harley-Davidson | FLTRK Road Glide Limited | - | - |
| 2020-2024 | Harley-Davidson | FXST Softail Standard 107 | - | - |
| 2020-2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2019-2022 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 | - | - |
| 2018-2024 | Harley-Davidson | FLHCS Heritage Classic 114 | - | - |
| 2018-2024 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2022 | Harley-Davidson | FLTRXSE CVO Road Glide | - | - |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 | - | - |
| 2018-2021 | Harley-Davidson | FLHC Heritage Classic 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSB Sport Glide 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSL Softail Slim 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBB Street Bob 107 | - | - |
| 2018-2020 | Harley-Davidson | FXLR Low Rider 107 | - | - |
| 2018-2020 | Harley-Davidson | FLDE Deluxe 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2018-2019 | Harley-Davidson | FXFB Fat Bob 107 | - | - |
| 2018-2019 | Harley-Davidson | FLFB Fat Boy 107 | - | - |
| 2018-2019 | Harley-Davidson | FXBR Breakout 107 | - | - |
| 2017-2024 | Harley-Davidson | FLHRXS Road King Special | - | - |
| 2017-2024 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | - | - |
| 2017-2024 | Harley-Davidson | FLHTK Ultra Limited | - | - |
| 2017-2024 | Harley-Davidson | FLRT Freewheeler | - | - |
| 2017-2024 | Harley-Davidson | FLHX Street Glide | - | - |
| 2017-2024 | Harley-Davidson | FLTRX Road Glide | - | - |
| 2017-2024 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 2017-2024 | Harley-Davidson | Road King Police FLHP | - | - |
| 2017-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2017-2022 | Harley-Davidson | FLHR Road King | - | - |
| 2017-2022 | Harley-Davidson | FLHXSE CVO Street Glide | - | - |
| 2017-2021 | Harley-Davidson | FLHTKSE CVO Limited | - | - |
| 2017-2019 | Harley-Davidson | FLHTKL Ultra Limited Low | - | - |
| 2017-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic | - | - |
| 2017-2019 | Harley-Davidson | FLTRU Road Glide Ultra | - | - |
Specs
| PRODUCT NAME | CAMCHEST KIT |
| TYPE | CHAIN |
| APPLICATION | INTAKE / EXHAUST |
| MODEL | HP+® |
| GRIND | 472 SERIES |
| UNITS | KIT |
| RIDING STYLE | STREET |
