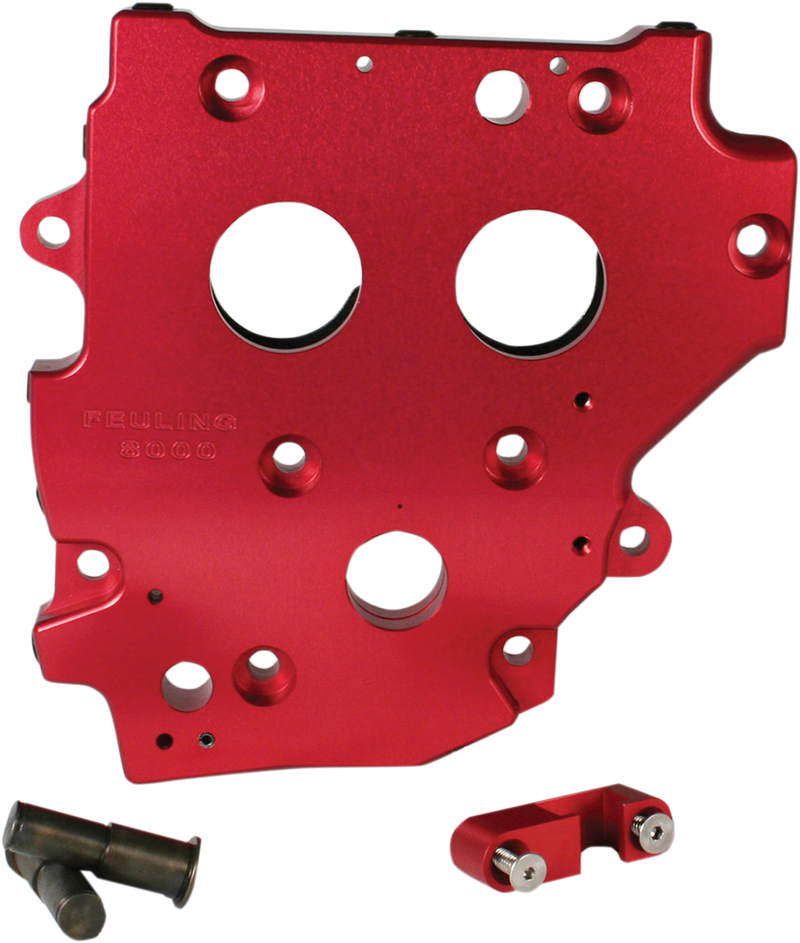

FEULING PARTS Cam Plate - Chain Drive - Twin cam '99-'06 - 8010

• FEULING HIGH FLOW camplates for TC engines increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings resulting in 25-35 degree cooler engine temperatures.
• Made from 7075 billet aluminum which 50% harder and stronger than the factory, SE and other aftermarket camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.
• FEULING camplates are blue printed and matched to the Feuling oil pumps, which allow the Twin Cam engine to take full advantage of the increased volume from the high flow oil pumps resulting in cooler quieter engine operation.
• Tighter cam bearing bore tolerance for improved press fit
• Camplates are pressure tested & pressure relief valve and spring are pre-set and designed for the increased volume and pressure, eliminating the need to stretch the spring or use a shim.
• When matched with the Feuling Race Series Oil Pump rear wheel power gains of 3 Horsepower and 4 ft/lbs of Torque are achieved.
• For use ONLY with the Feuling oil pumps
• Bolts into stock location
• Made in the U.S.A.

  NOTE : This camplate is designed for the original fitment mechanical spring tensioners. For hydraulic conversion camplate see part #s 8011, 8032

  NOTE: Includes tensioner pins and guide hardware
  NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.

  NOTE: Camplates for '99-'06 Twin Cam (except 06 Dyna) have tighter cam bearing bore tolerances for improved press fit.
  Requires the use of '99-'06 style Feuling HP+ or Race Series oil pump.
  Includes tensioner pins and guide hardware.
  Camplate is designed to use factory tensioner system with original '99-'06 Twin Cam style camshafts.
  Not for '06 Dyna.
