FEULING PARTS Camchest Kit - 525 Cam - HP+ - Twin Cam '99-'06 - 7220

BULLETPROOF CAMCHEST KIT!
FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE

FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

HP+ Complete Conversion Camchest Kits include: FEULING HP+ high volume Oil pump, high flow Camplate, REAPER Series Conversion Camshafts, HP+ hydraulic roller Lifters, QUICK install adjustable Pushrods, Chrome pushrod tubes, hydraulic tensioners, sprockets, roller chains, cam sprocket spacers, Timken Cam Bearings, Gaskets, O-rings, Exhaust gaskets, ARP fasteners, washers, moly paste, Loctite and hardware.

Camchest kits are available in FEULING HP+ and RACE SERIES combinations and with gear drive or chain drive REAPER camshafts. Fitments available for 99-17 Twin Cam engines. 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners.

UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

Conversion camshafts for 99-06 Twin Cam engines. These camshafts utilize the 99-06 inner cam journals with the 07-16 outer cam journals allowing the use of the 07-1 camplates, oil pump, hydraulic chain tensioners and chain drive system.

525 CAMS - A real workhorse, designed to increase torque band width and increase fuel economy. Great bolt in camshaft upgrade for stock 88 & 96 engines also performs very well in 103 strokers. Produces strong low and mid range power with a linear horsepower and torque curve. Can be used with factory valve springs, pushrods and lifters. Increases throttle response and eases starting. Will also respond well to increased compression and cylinder head work. RPM 1,750 - 5,500

• All necessary components from top-to-bottom of the camchest
• Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
• Quieter and smoother engine operation
• Increase oil pressure, scavenge volume and engine oil flow
• 25°-35° cooler engine temperatures
• 15°-30° cooler oil temperatures
• 15-30 more PSI of oil pressure
• Eliminate wet sumping, blow by and oily air cleaners
• Includes Feuling® HP+® high-volume oil pump, high-flow billet cam plate, REAPER® Series camshafts, HP+® hydraulic roller lifters, Fast Install® pushrods, Timken®/Koyo® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
• Installation of gear drive cams will require separate purchase of S&S or Andrews 4-gear drive kit.


  NOTE:Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation).

  NOTE:
  1750 - 5500 rpm power range.

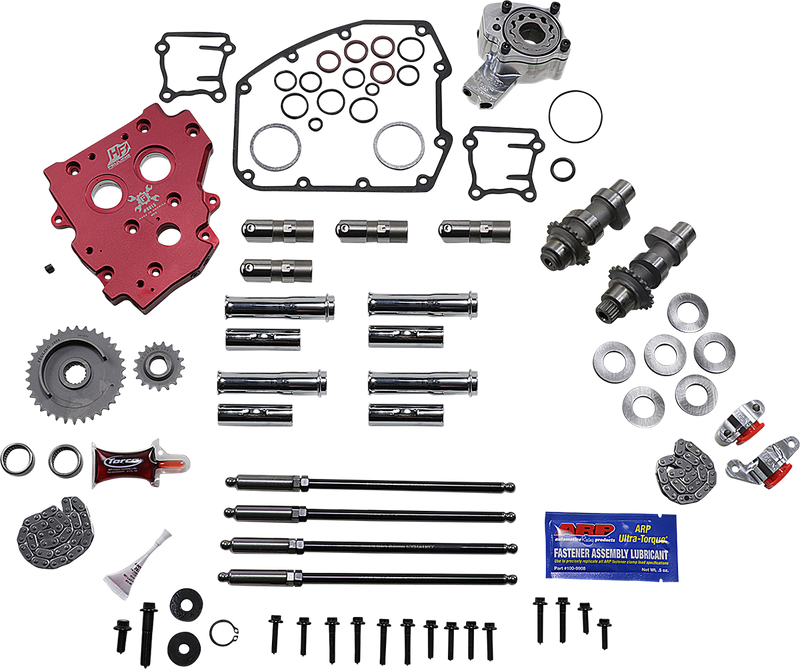

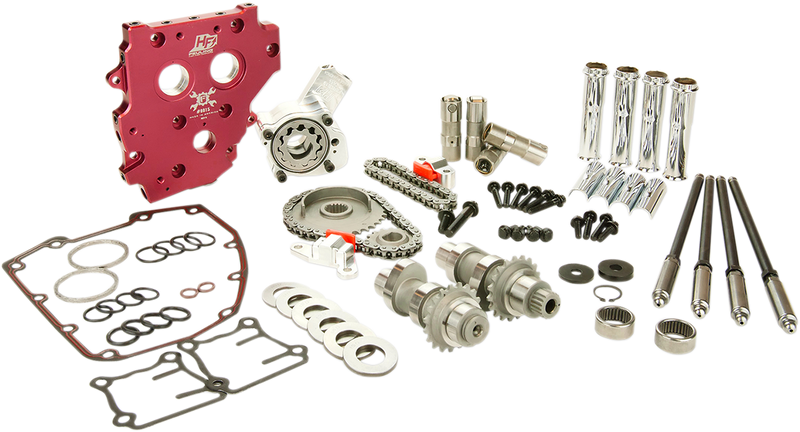

  Includes:
  • HP+ High Volume Oil Pump
  • High Flow Camplate
  • Reaper Series Conversion Camshafts
  • HP+ Hydraulic Roller Lifters
  • Quick Install Adjustable Pushrods
  • Chrome Pushrod Tubes
  • Hydraulic Tensioners
  • Sprockets
  • Roller Chains
  • Cam Sprockets Spacers
  • Timken Cam Bearings
  • Gaskets
  • O-Rings
  • Exhaust Gaskets
  • ARP Fasteners
  • Washers
  • Moly Paste
  • Loctite
  • Hardware


Specs
