FEULING PARTS Chain Conversion Kit - Twin Cam '99-'01 - 8083

These kits allow engine builders to install or replace the hydraulic cam chain tensioners on stock 07-17 Twin Cams (including 06 Dyna), 99-06 Feuling camchest kits using conversion cams or conversion camplates. Will also work with a combination of factory, SE, Delkron or S&S oiling systems.

For use with conversion camshafts when updating a 99-01 Magneti Marelli ignition system & 99-00 carbureted engines w/cam position sensor to the hydraulic cam chain tensioner system. Requires an 07-17 style oiling system

• Kit allows engine builders to update early style mechanical cam chain tensioner Twin Cam® engines to the late style hydraulic cam chain tensioner systems while mixing and matching components
• Kit includes cam and crank sprockets, sprocket alignment spacers, inner and outer cam chains, inner and outer hydraulic tensioner assemblies
• Whether using a Feuling camchest kit with conversion camshafts, Feuling conversion camplate oiling system with stock style '99-'06 camshafts and or conversion camshafts with a combination of factory, SE®, Delkron® or S&S® oiling systems, these kits offer endless combinations
• Made in the USA
• Designed to work with camchest kits: 0925-0678, 0925-0679, 0925-0680, 0925-0732, and 0925-0733.
• Designed to work with oiling systems: 0932-0029, 0932-0030, and 0932-0093.
• Requires separate purchase of conversion camshafts part: 0925-0606, 0925-0607, 09250608, 0925-0671, 0925-0672.



  NOTE:
  - For Twin Cam engines with cam position sensor when using conversion style cams.
  - For use with conversion camshafts when updating a '99-'01 Magneti Marelli ignition system model engine with cam position sensor to the hydraulic cam chain tensioner system.

  NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.

  NOTE:
  For use with conversion camshafts when updating '99-'00 Twin Cam, '01 EFI Touring engines with cam position sensor to the hydraulic cam chain tensioner system.
  Requires separate purchase of conversion camshafts.

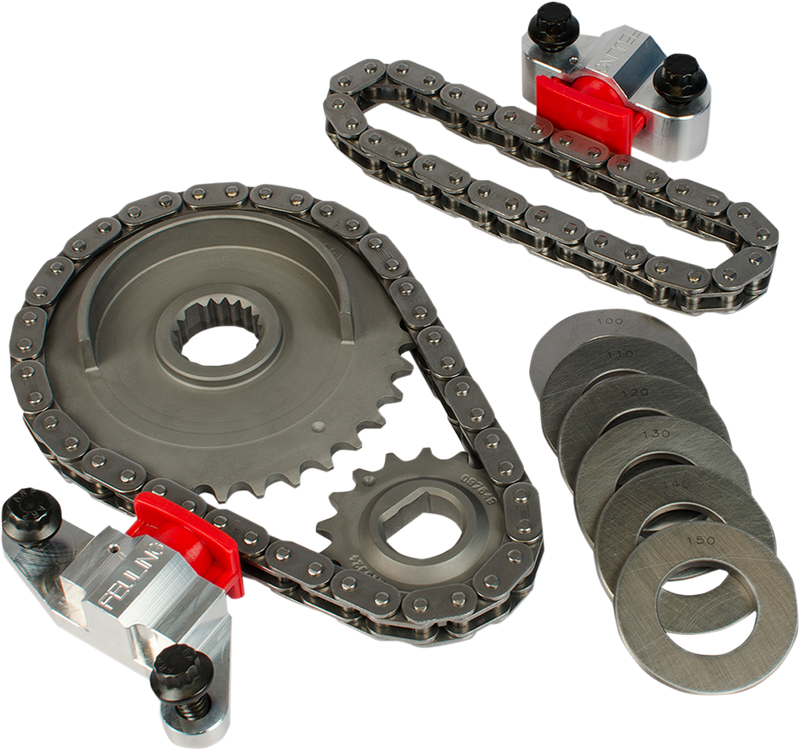

  Includes:
  • 1x Outer Chain
  • 1x Inner Chain
  • 1x Outer Crank Sprocket 17 Tooth
  • 1x Outer Cam Sprocket 34 Tooth (Special Sprocket with Timing Tab)
  • 1x Outer Hydraulic Tensioner Unit
  • 1x Inner Hydraulic Tensioner Unit
  • 1x Spacer Kit Includes:
  • 1x Thrust Washer - Front Cam 0.100"
  • 1x 0.110" Spacer for Cam Alignment (use as required)
  • 1x 0.120" Spacer for Cam Alignment (use as required)
  • 1x 0.130" Spacer for Cam Alignment (use as required)
  • 1x 0.140" Spacer for Cam Alignment (use as required)
  • 1x 0.150" Spacer for Cam Alignment (use as required)
