FEULING PARTS Chain Kit - Twin Cam '99-'01 - 8082

These kits allow engine builders to install or replace the hydraulic cam chain tensioners on stock 07-17 Twin Cams (including 06 Dyna), 99-06 Feuling camchest kits using conversion cams or conversion camplates. Will also work with a combination of factory, SE, Delkron or S&S oiling systems.

For use on 99-01 Magneti Marelli equipped ignition system and 99-00 carbureted Twin Cam engines w/cam position sensor, stock style splined camshafts and Conversion Camplate which allows use of hydraulic tensioner system

• Kits allows engine builders to update early style mechanical cam chain tensioner Twin Cam® engines to the late style hydraulic cam chain tensioner systems while mixing and matching components
• Whether using a Feuling camchest kit with conversion camshafts, Feuling conversion camplate oiling system with stock style '99-'06 camshafts and or conversion camshafts with a combination of factory, SE®, Delkron® or S&S® oiling systems, these kits offer endless combinations
• Kits includes cam and crank sprockets, sprocket alignment spacers, inner and outer cam chains, inner and outer hydraulic tensioner assemblies
• Made in the USA


  NOTE: Designed to work with conversion camplate oiling systems; Will not work on keyway camshafts

  NOTE:
  For use with original '99-'06 cams and conversion camplate on '99-'01 models with cam position sensor.

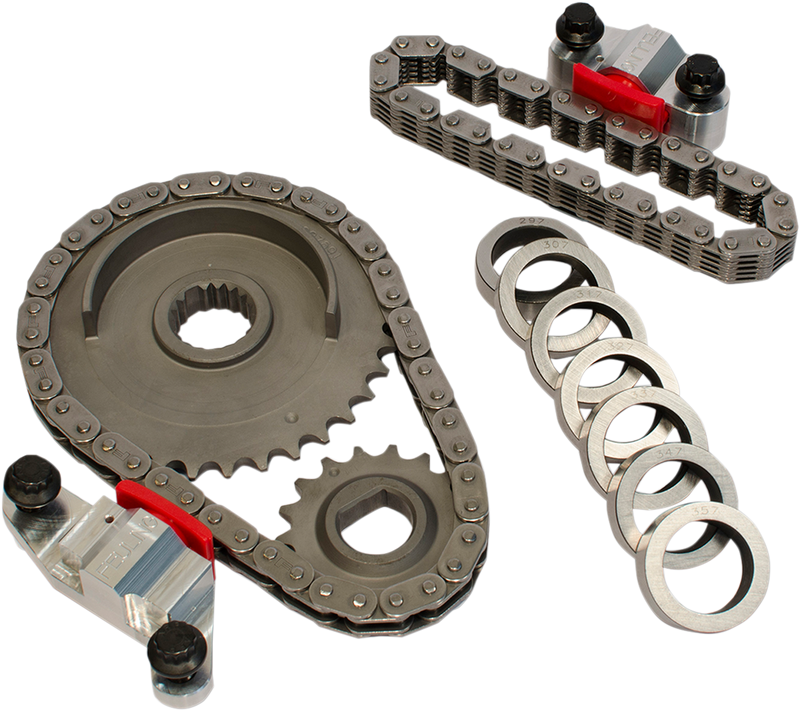

  Includes:
  • 1x Outer Chain
  • 1x Inner Chain
  • 1x Outer Crank Sprocket 17 Tooth
  • 1x Outer Cam Sprocket 34 Tooth (Special Sprocket with Timing Tab)
  • 1x Outer Hydraulic Tensioner Unit
  • 1x Inner Hydraulic Tensioner Unit
  • 1x Spacer Kit Includes:
  • 1x 0.297" Spacer for Cam Alignment (use as required)
  • 1x 0.307" Spacer for Cam Alignment (use as required)
  • 1x 0.317" Spacer for Cam Alignment (use as required)
  • 1x 0.327" Spacer for Cam Alignment (use as required)
  • 1x 0.337" Spacer for Cam Alignment (use as required)
  • 1x 0.347" Spacer for Cam Alignment (use as required)
  • 1x 0.357" Spacer for Cam Alignment (use as required)
