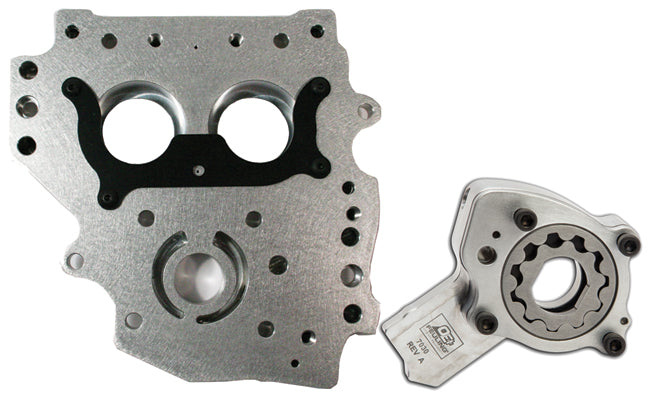

FEULING OIL PUMP CORP. Conversion Oil System - OE+ - Harley-Davidson '99-'06 - 7086

FEULING OE+ oil pump and camplate kits are an upgrade to the stock oiling system, delivering increased oil pressure and return scavenge volumes from an OE+ billet oil pump and matched OE+ billet camplate. The OE+ billet camplates have increased rigidity and are machined to tighter tolerances compared to stock. The OE+ camplate pressure relief valve and spring are seated and pre-set with a 50-60 psi pop off.

The competitively priced OE+ product line is an upgraded alternative to stock and as with all FEULING products, the OE+ engine components are designed and manufactured to the highest standard of quality with proven FEULING performance.

The OE+ oil pumps assemble without O-rings on the pump housings, similar to the Factory and SE oil pumps.
TC 99-06 EXCEPT 06 DYNA

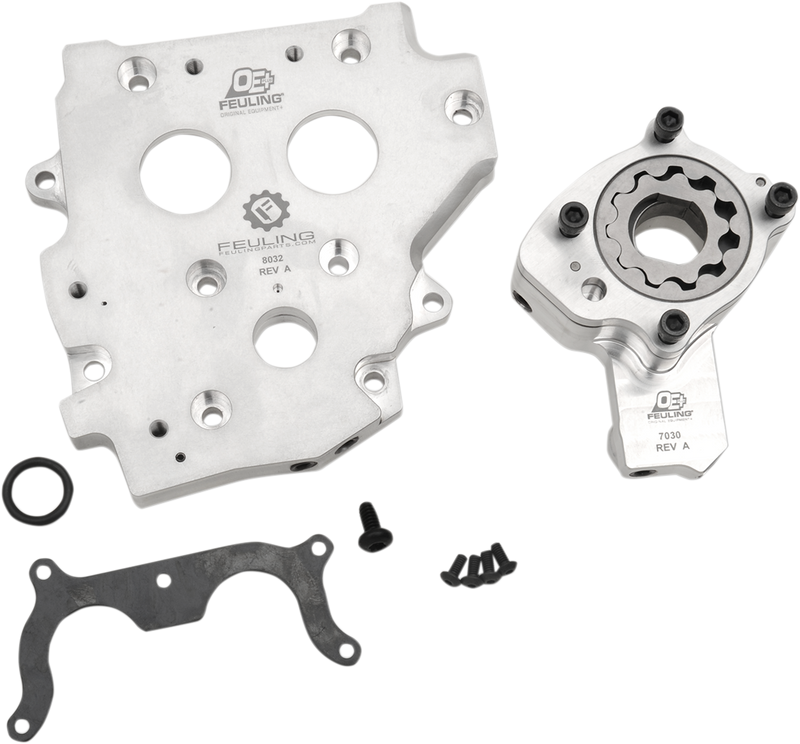

#7086¹ ³ 99-06 Except 06 Dyna, OE + Series - Conversion Camplate (Part #s: 7030, 8032)
¹ Conversion camplate uses 99-06 chain drive camshafts with late style 07-17 hydraulic chain tensioner system, purchased separately - See #8081 & #8082 or complete kits #7087, 7088, 7089, 7090
³ Includes bearing retainer plate & hardware

FITS:

TC 99-06 Except 06 Dyna, Conversion Camplate System - Uses the original style 99 - 06 Twin Cam cam bearing bores for use with the press in bearings. This camplate is designed to use the new style 07 - 17 Factory hydraulic chain tensioner system with the original 99 -06 Twin Cam style camshafts. Includes #7030 oil pump, #8032 camplate, #8001 bearing retainer plate

• Kits are an upgrade to the stock oiling system, delivering increased oil pressure and return scavenge volumes from an OE+ billet oil pump and matched OE+ billet cam plate (see OE+ oil pumps for complete specs)
• OE+ billet cam plates have increased rigidity and are machined to tighter tolerances compared to stock
• OE+ cam plate pressure relief valve and spring are pre-set, matched and seated by FEULING® with a full pop-off pressure of 50-60 psi.
• Made in the U.S.A.


  NOTE: Requires hydraulic cam chain drive system


  NOTE: This part requires additional parts in order to function properly. Please add all additional required parts to your order as needed.

  NOTE:
  Requires hydraulic cam chain drive system (tensioners, chains, sprockets
  and hardware),see Feuling tensioner kit PART #s 0925-1069 or 0925-1070.
  Hydraulic tensioner conversion camplate for stock chain drive cams.
  Conversion camplate system uses the original style '99- '06 Twin Cam® cam bearing bores for use with the press in bearings and this camplate is designed to use the new style '07-'17 Factory hydraulic chain tensioner system with the original '99-'06 Twin Cam® style camshafts.
  Conversion camplate uses '99-'06 chain drive camshafts with late style '07-'17 hydraulic chain tensioner system, purchased separately - See Part #0925-1069 and Part # 0925-1070 or complete kit Part # 0925-1060, Part # 0925-1061, Part # 0925-1062, Part # 0925-1063.
