FEULING PARTS Gear Alignment Tool - Oil Pump - Harley-Davidson '99-'23 - 9017
SKU 3801-0428
Original price
$92.95
-
Original price
$92.95
Original price
$92.95
$92.95
-
$92.95
Current price
$92.95
🚚 Estimated Delivery: 12 Oct - 19 Oct
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

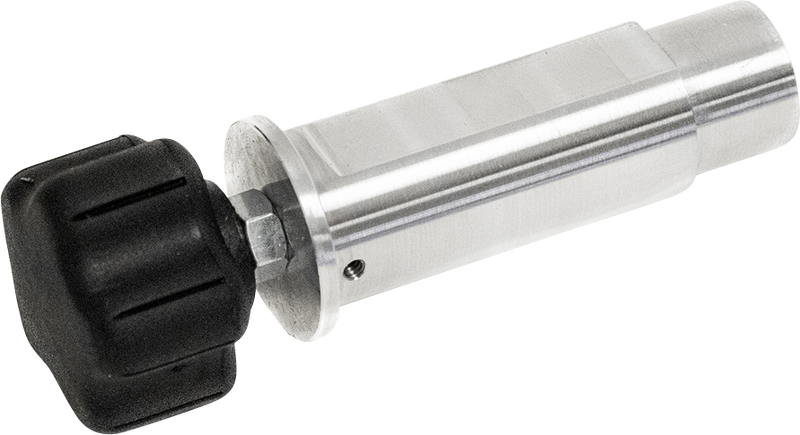

OIL PUMP GEAR ALIGNMENT TOOL
Align the oil pump gear flats with the flats of the crankshaft
M-Eight:
Rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
FITS:
OIL PUMP GEAR ALIGNMENT TOOL

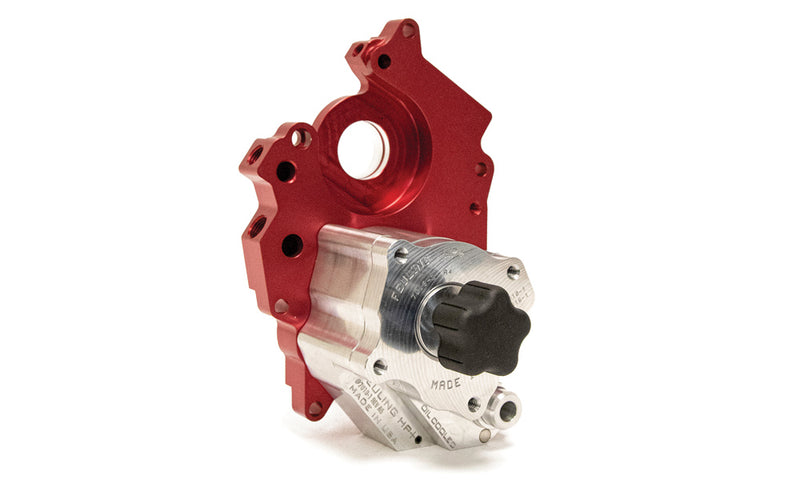

- Feuling recommends assembling the cam plate, oil pump, cam shaft etc together on the bench, lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit
- This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port
- Twin Cam engines: rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match
- M8 engines: rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match
- Align the oil pump gear flats with the flats of the crankshaft
Specs
| PRODUCT NAME | OIL PUMP GEAR ALIGNMENT TOOL |
| TYPE | CRANKSHAFT |
| COLOR/FINISH | BLACK / SILVER |
| UNITS | EACH |
| RIDING STYLE | STREET |
