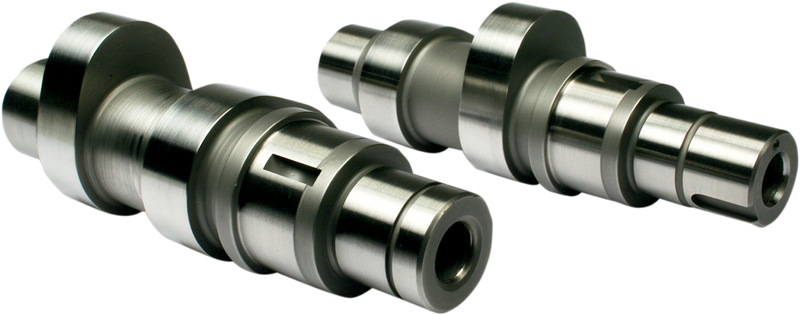

FEULING PARTS Gear Drive Reaper Cam - 574 Series - Harley-Davidson '99-'06 - 1007

SKU 0925-0428
Original price $681.95 - Original price $681.95
Original price
$681.95
$681.95 - $681.95
Current price $681.95

🚚 Estimated Delivery: 12 Oct - 19 Oct

CONFIRM FITMENT BEFORE ORDERING

Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

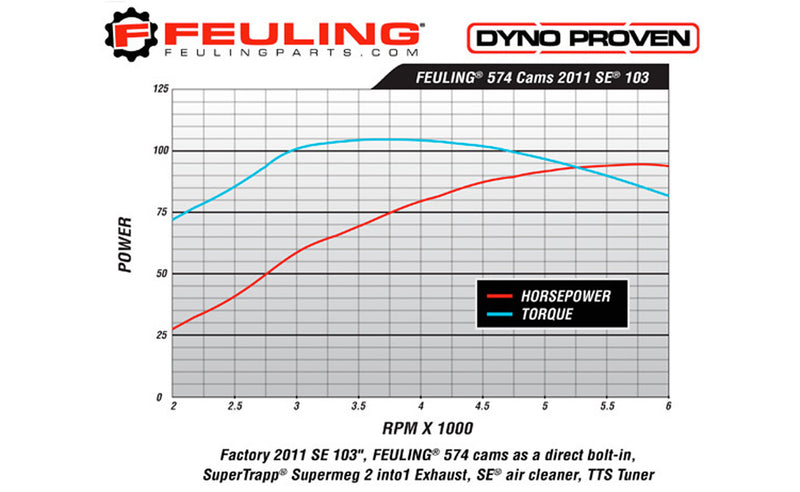

574 CAMS - Wicked power band for modified engines and an excellent bolt in for stock 96, 103 & 110 engines. This is a great all around camshaft with solid low end performance and mind blowing mid and top end power. Extremely smooth cam lobe design creates a very smooth valve-train motion. Responds very well to modified cylinder heads, increased compression ratio, performance exhaust and intake systems. Performance valve springs are required on 99-04 engines and performance pushrods, lifters and clutch are recommended. RPM 2,100 - 6,500.

NOTE: Gear drive camshaft kits MUST purchase cam gear kit separately - see Drag #DS199532

FITS:

TC 99 - 06, Except 06 Dyna models, 574 Intake, 574 Exhaust, Performance valve springs are required and performance pushrods and lifters are recommended. RPM 2,000 - 6,800

  • Power band for modified engines and an excellent bolt-in for stock 96", 103" and 110" engines
  • Responds well to modified cylinder heads increased compression ratio, performance exhaust and intake systems
  • Extremely smooth cam-lobe design creates a smooth and quiet valvetrain
  • 2100-6500 RPM power range
  • Performance valve springs required on '99-'04 engines and performance pushrods and lifers recommended.

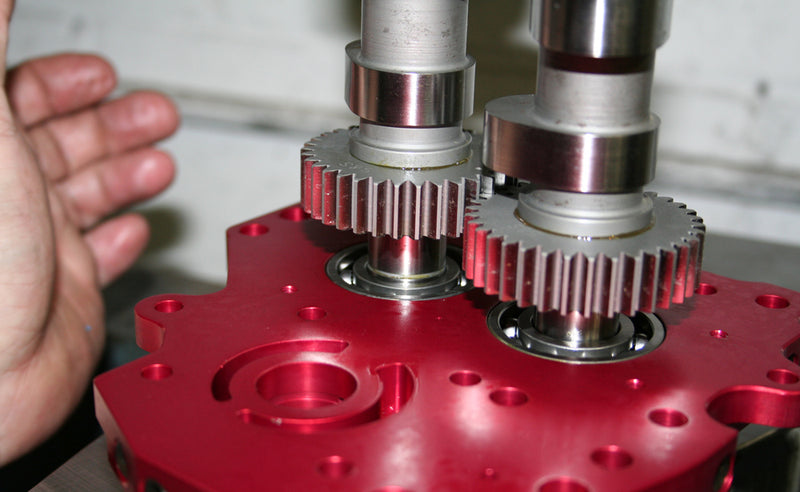

    NOTE: Gear drive camshaft require a cam gear kit.
    Rpm range 2000-6800.
    Not for '06 Dyna.



Specs
PRODUCT NAME CAMSHAFT
TYPE GEAR
APPLICATION EXHAUST / INTAKE
MODEL REAPER
GRIND 574 SERIES
INTAKE OPEN 15°
INTAKE CLOSE 45°
INTAKE LIFT 0.574"
INTAKE DURATION 240°
EXHAUST LIFT 0.574"
EXHAUST DURATION 255°
EXHAUST OPEN 61°
EXHAUST CLOSE 14°
UNITS PAIR
RIDING STYLE STREET
