FEULING OIL PUMP CORP. Hi Volume Oil Pump - Twin Cam '06-'17 - 7060

• Increase oil pressure, oil volume, engine oil flow and return oil scavenging
• Quieter and smoother engine operation
• Engine temperatures run 15°-25° cooler
• Oil temperatures run 15°-30° cooler
• 10-30 (EU: 0,69 - 2,06 Bar) more psi of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Test results show 2 horsepower gain and 2 ft/lbs (EU: 2,71 Nm) of torque gain to the rear wheel on M-Eight
• Feuling test results show as much as 50% reduction of engine sump oil level

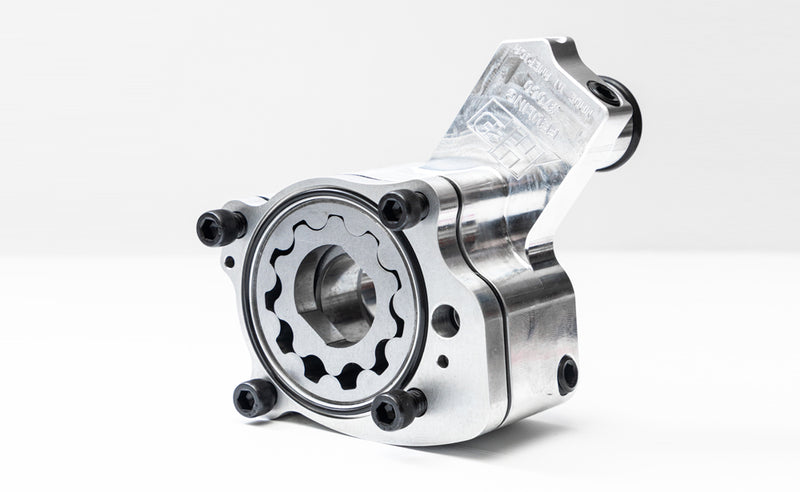

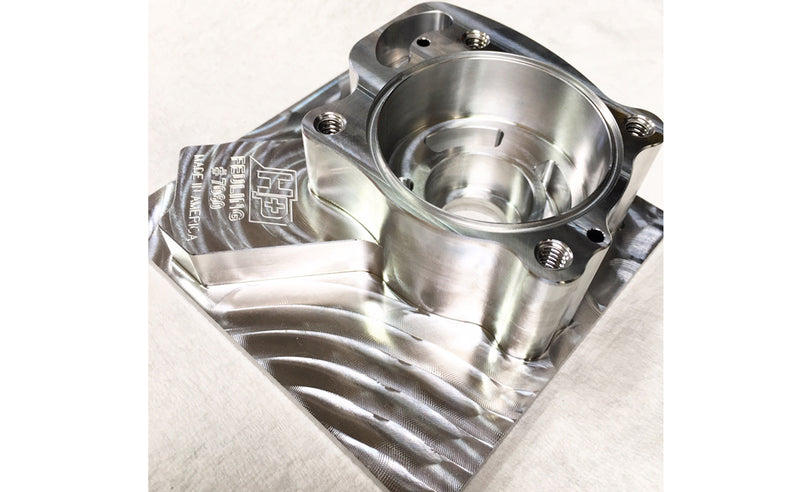

• Includes a billet 6061 aluminum high-volume oil pump and Feulings® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
• Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
• Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi (EU: 2,06 bar) with full pop-off at 55-60 psi (EU: 3,79 bar - 4,13 bar)
• Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
• Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
• 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case
• Made in the U.S.A.

FITS:

TC 07- 17, Includes 06 Dyna models, High volume HP+ oil pump, 20%+ more pressure and 30%+ more return volume, 6061 billet aluminum with natural finish

NOTE: Generates 32% more pressure volume over stock, 16%+ more
than SE, 38% more scavenge volume over stock and 9%+ more than SE.

Replacement Part for OEM Number(s)

• 2603706
