FEULING OIL PUMP CORP. Race Series Camshaft Kit - 594 Series - Harley-Davidson '00-'17 - 7235ST
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.
BULLETPROOF CAMCHESTS!
FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.
Complete Camchest Kits include: FEULING high volume Oil pump, high flow Camplate, REAPER Series Camshafts, short travel hydraulic roller Lifters, Quick install adjustable pushrods with .134 wall thickness, chrome pushrod tubes, Timken Bearings, Gaskets, O-rings, Exhaust gaskets, ARP fasteners, washers, moly paste, Loctite, and hardware.
Camchest kits are available in FEULING HP+ and RACE SERIES combinations and with gear drive or chain drive REAPER camshafts. Fitments available for 99-17 Twin Cam engines. 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners.
594 CAMS - Fiercely performing camshaft for an array of engines sizes, large displacement 103, 110 & 124 engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200 - 6,250.) Smaller high revving displacement 95 style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500 - 6,800). Large displacements respond well to increased compression ratio and smaller displacements will require it. 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch.
- Includes camshafts, lifters and a cam installation kit that includes the cam bearing, cam/crank hardware
- Includes Race SeriesĀ® lifters
- Made in the U.S.A.
NOTE:
Fits '06 Dyna.

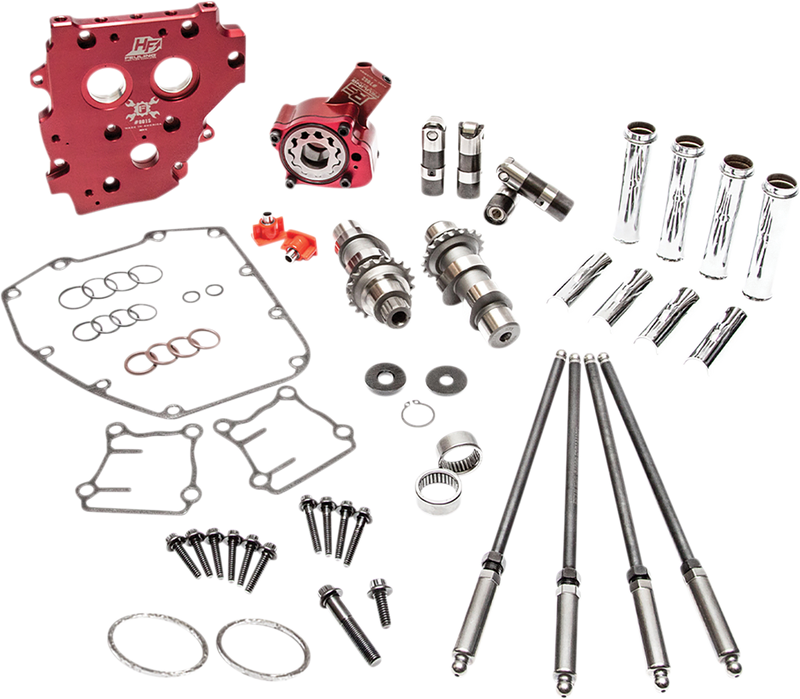

Includes:
ā¢ Race SeriesĀ® Billet Oil Pump
ā¢ High Flow Camplate
ā¢ Reaper SeriesĀ® 594 Camshaft
ā¢ Race SeriesĀ® Short-Travel Hydraulic Lifters
ā¢ Quick Install Adjustable Pushrods
ā¢ Chrome Pushrod Tubes
ā¢ Cam Install Kit
ā¢ Gaskets
ā¢ O-Rings
ā¢ Timken/Koyo Cam Bearings
ā¢ ARP Cam/Crank/Pump/Plate Fasteners
ā¢ Moly Paste
ā¢ Loctite
ā¢ Hardware
Specs
| PRODUCT NAME | CAMSHAFT KIT |
| TYPE | CHAIN |
| MODEL | RACE SERIESĀ® |
| GRIND | 594 SERIES |
| UNITS | KIT |
| RIDING STYLE | STREET |
