FEULING PARTS Lifters - Race Series - Twin Cam '99-'20 - 4050
CONFIRM FITMENT BEFORE ORDERING
Please confirm fitment for your bike below as we do not accept returns on parts ordered incorrectly.

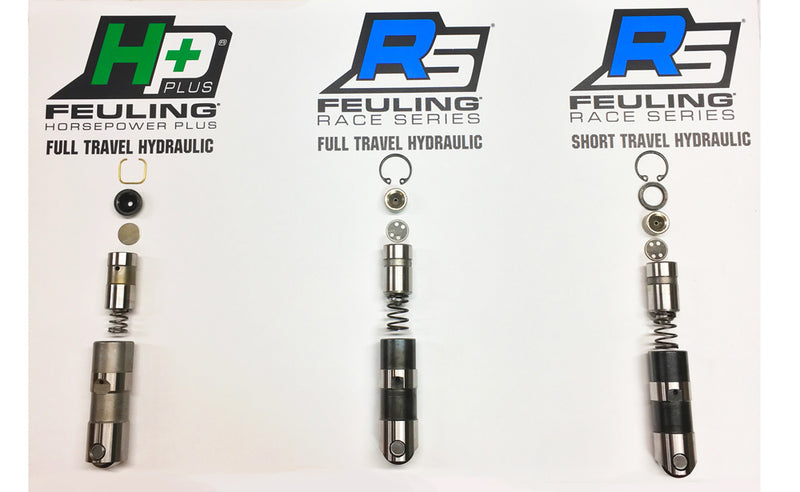

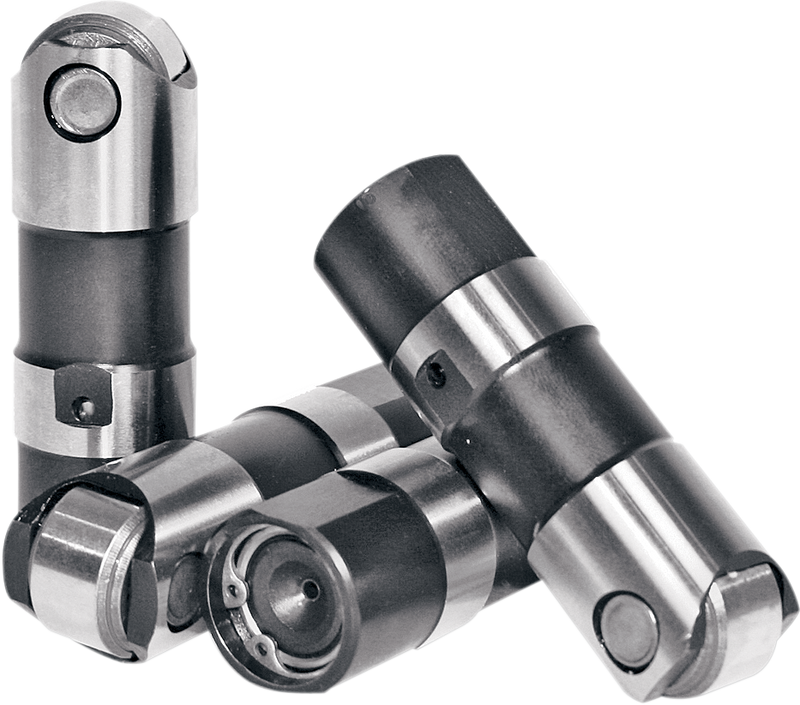

FEULING RACE SERIES full travel hydraulic lifters are machined from a steel body and designed to exceed the needs of large lift camshafts and higher valve spring pressures with a slower bleed down rate. RACE SERIES lifters maintain proper oil flow to the top end, increase engine RPM, valve-train stability, decreasing valve float promoting maximum valve lift.
Feuling recommends Race Series lifters for engines running higher than 185 Lbs. valve spring seat pressure. FEULING recommends the use of a high volume oil pump which will result in quieter, better performing lifters. Race Series lifters are compatible with either FEULING HP+ or Race Series oil pumps and are designed for use with both street and strip engines. Spin-Tron dyno developed and track proven, Made in the USA.
- Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction
- Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up
- High flow disc style quick reacting check valve for better reaction at higher RPM.
- Available in oversized diameters - Case Savers!
- Recommended for both strip and performance street engines
- Sold in sets of 4
- Made in the U.S.A.

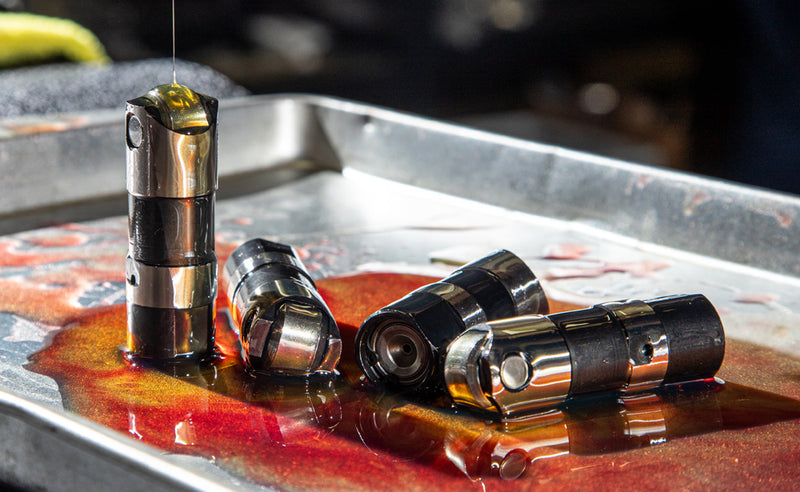

*FEULING RECOMMENDS PUMPING UP EACH LIFTER BY HAND PRIOR TO INSTALLATION, TO REMOVE ALL AIR AND PROVIDE A FULLY PUMPED UP LIFTER. USE OF A THIN WEIGHT OIL LIKE ATF IN A SQUIRT CAN WORKS WELL.
FITS:
T/C 99 - 17, XL And Buell 00 - 17
Fitment Guide
| 2018-2020 | Harley-Davidson | Iron 1200 XLNS | - | - |
| 2018-2019 | Harley-Davidson | Forty-Eight Special XLXS | - | - |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX | - | - |
| 2016 | Harley-Davidson | Fat Boy S FLSTFBS | - | - |
| 2016 | Harley-Davidson | Softail Slim S FLSS | - | - |
| 2016 | Harley-Davidson | Low Rider S FXDLS | - | - |
| 2015-2016 | Harley-Davidson | Electra Glide Ultra Classic Low FLHTCUL | - | - |
| 2015-2016 | Harley-Davidson | Road Glide Special FLTRXS | - | - |
| 2015-2016 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL | - | - |
| 2015-2016 | Harley-Davidson | Freewheeler FLRT | - | - |
| 2014-2017 | Harley-Davidson | SuperLow 1200 XLT | - | - |
| 2014-2016 | Harley-Davidson | Street Glide Special FLHXS | - | - |
| 2013-2016 | Harley-Davidson | Breakout FXSB | - | - |
| 2012-2016 | Harley-Davidson | Switchback FLD | - | - |
| 2012-2016 | Harley-Davidson | Softail Slim FLS | - | - |
| 2012-2016 | Harley-Davidson | Seventy-Two XLV | - | - |
| 2011-2019 | Harley-Davidson | 883 SuperLow XLL | - | - |
| 2011-2013, 2016 | Harley-Davidson | Road Glide Ultra FLTRU | - | - |
| 2011-2013 | Harley-Davidson | Blackline FXS | - | - |
| 2010-2020 | Harley-Davidson | Forty-Eight XLX | - | - |
| 2010-2016 | Harley-Davidson | Fat Boy Lo FLSTFB | - | - |
| 2010-2016 | Harley-Davidson | Electra Glide Ultra Limited FLHTK | - | - |
| 2010-2013, 2015-2016 | Harley-Davidson | Road Glide Custom FLTRX | - | - |
| 2010-2011 | Harley-Davidson | Street Glide Trike FLHXXX | - | - |
| 2009-2020 | Harley-Davidson | Iron 883 XLN | - | - |
| 2009-2016 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2008-2016 | Harley-Davidson | Fat Bob FXDF | - | - |
| 2008-2011 | Harley-Davidson | Softail Rocker C FXCWC | - | - |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB | - | - |
| 2008-2009 | Harley-Davidson | Softail Rocker FXCW | - | - |
| 2007-2016 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 2007-2012 | Harley-Davidson | 1200 Nightster XLN | - | - |
| 2007-2010 | Harley-Davidson | Softail Custom EFI FXSTC | - | - |
| 2007-2009, 2015-2016 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2007-2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2007-2008 | Buell | XB12STT Lightning Super TT | - | - |
| 2007 | Harley-Davidson | Sportster 1200 XL 50 | - | - |
| 2006-2016 | Harley-Davidson | Street Glide EFI FLHX | - | - |
| 2006-2016 | Harley-Davidson | Street Bob FXDB | - | - |
| 2006-2011 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006-2010 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006-2009 | Buell | XB12Ss Lightning Long | - | - |
| 2006-2009 | Buell | XB12X Ulysses | - | - |
| 2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI | - | - |
| 2006 | Harley-Davidson | Softail Heritage FLST | - | - |
| 2006 | Harley-Davidson | Street Glide FLHX | - | - |
| 2006 | Harley-Davidson | Super Glide FXD35 | - | - |
| 2005-2016 | Harley-Davidson | Softail Deluxe EFI FLSTNI | - | - |
| 2005-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2005-2008 | Buell | XB9SX Lightning CityX | - | - |
| 2005-2008 | Buell | XB12Scg Lightning Low | - | - |
| 2005-2007 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2004-2010 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004-2009 | Buell | XB12R Firebolt | - | - |
| 2004-2008, 2010-2016 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2004-2008 | Buell | XB12S Lightning | - | - |
| 2004-2007 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2003-2009 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2003-2004 | Buell | XB9S Lightning | - | - |
| 2002-2019 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2002-2007 | Buell | XB9R Firebolt | - | - |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2002 | Buell | X1W White Lightning | - | - |
| 2001-2016 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2001-2016 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2001-2009 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2001-2007 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2001-2007 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2001-2006 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI | - | - |
| 2000-2009 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2000-2006 | Harley-Davidson | 883 Custom XLC | - | - |
| 2000-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 2000-2006 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 2000-2006 | Harley-Davidson | Softail Standard FXST | - | - |
| 2000-2006 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 2000-2006 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 2000-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 2000-2003 | Harley-Davidson | 1200 Sport XLS | - | - |
| 2000-2003 | Harley-Davidson | 883 Hugger XLH | - | - |
| 2000-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 2000-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 2000-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 2000-2002 | Buell | X1 Lightning | - | - |
| 2000 | Buell | M2 Cyclone | - | - |
| 1999-2013 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
| 1999-2009 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1999-2006 | Harley-Davidson | Road King FLHR | - | - |
| 1999-2006 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1999-2005 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 1999-2005 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1999-2005 | Harley-Davidson | Super Glide FXD | - | - |
| 1999-2005 | Harley-Davidson | Low Rider FXDL | - | - |
| 1999-2002 | Harley-Davidson | Road Glide FLTR | - | - |
| 1999-2001, 2007-2016 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1999-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
Specs
| PRODUCT NAME | LIFTER |
| TYPE | HYDRAULIC |
| STYLE | FULL-TRAVEL |
| APPLICATION | INTAKE / EXHAUST |
| MODEL | RACE SERIES® |
| MATERIAL | STEEL |
| SIZE | STANDARD / STANDARD |
| UNITS | SET OF 4 |
| RIDING STYLE | STREET |
