FEULING OIL PUMP CORP. Tensioner Conversion Kit - Harley-Davidson '99-'01 - 7089

FEULING OE+ CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, Twin Cam 99-00, Including 01 Touring, W/cam sensor. (Magneti Marelli Ignition Systems or carbureted)

Kit includes the needed components to upgrade early 99-06 style mechanical spring tensioner cam chain drive systems to the late 07-17 hydraulic cam chain drive system using a hybrid camplate. This kit includes a FEULING OE+ billet oil pump and camplate, FEULINGS billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, TIMKEN/FEULING bearings, needed gaskets, O-rings, ARP cam and crank hardware, Loctite and moly lube.

Note: Rocker box gasket kit included so the factory one piece pushrods can be reused

For 99-01 Magneti Marelli equipped ignition system and carbureted engines requiring the timing tab on the 34 tooth rear camshaft sprocket.

Kit is designed to run the factory 00-06 style splined chain drive camshafts with the included Feuling sprockets which converts to the late roller style outer chain. This kit can be used on early 99-00 keyway camshafts however it will require use of existing sprockets and silent outer chain.

This kit is NOT designed to work with conversion camshafts, see part #7088

If looking to upgrade camshafts we highly recommend choosing conversion camshafts See Feuling camchest kits:
OE+: #7320, 7322, 7324
HP+: #7220, 7221, 7222, 7223, 7224, 7225

FITS:

Twin Cam 99-00, Including 01 Touring (Magneti Marelli Ignition or carbureted, w/cam sensor), Kit designed for factory 00-06 style camshafts

• Cam chain tensioner conversion kits include the needed components to upgrade early 99-06 style mechanical cam chain drive systems to the late 07-16 hydraulic cam chain drive systems
• Kits include a Feuling OE+ billet oil pump and camplate, Feuling's billet hydraulic tensioners, cam chains, sprockets, sprocket alignment spacers, Timken®/Feuling bearings, needed gaskets, O-rings, ARP® cam, crank and tensioner hardware, Loctite® and moly lube
• Made in the U.S.A.
• Rocker box gasket kit included so the factory one-piece pushrods can be reused.

  NOTE:
  Fits '99-'00 Twin Cam and '01 EFI Touring with cam position sensor.

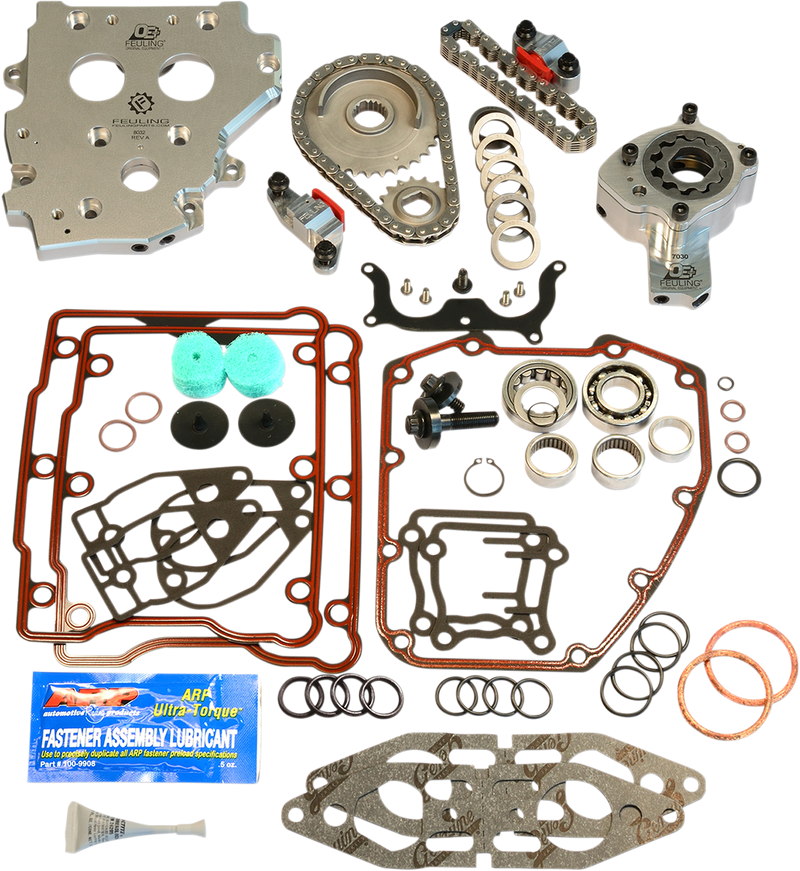

  Includes:
  • OE+ Billet Oil Pump
  • Camplate
  • Billet Hydraulic Tensioner Housings
  • Tensioner Pads
  • Cam Chains
  • Sprockets
  • Sprocket Alignment Spacers
  • Timken/Feuling Bearings
  • Gaskets
  • O-Rings
  • ARP Cam and Crank Hardware
  • Moly Lube
  • Loctite
