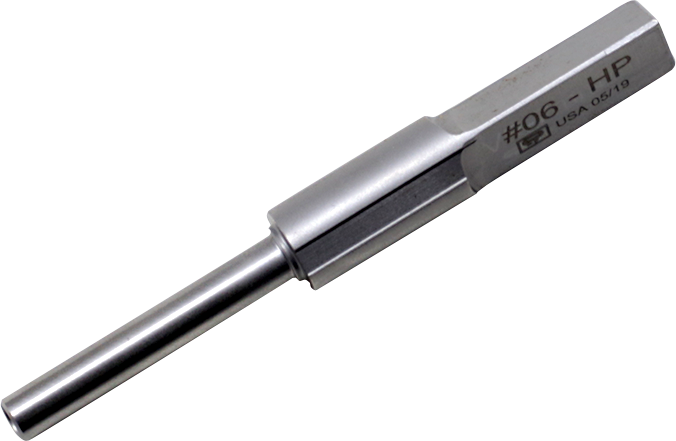

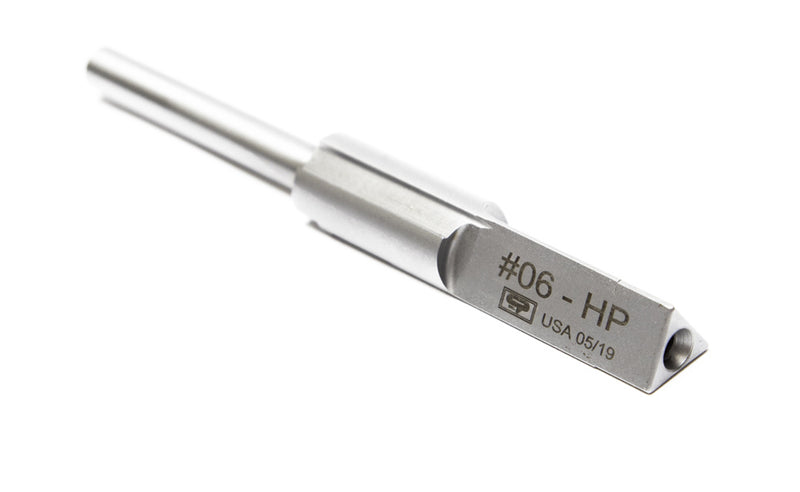

FEULING PARTS Valve Guide Tool - 6 mm - Harley-Davidson '17-'24 - M8 9024
6mm Pilot fits spring seat cutter bodies and valve guide outer diameter cutters, pilots are available for different valve guide IDs

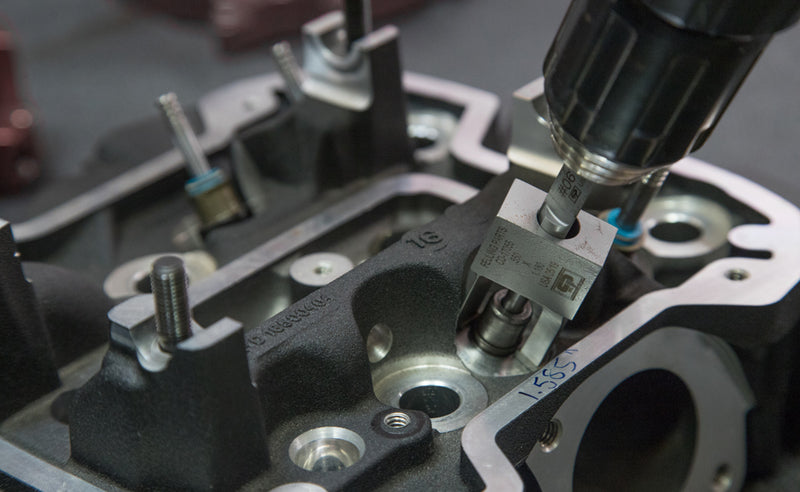

Machine valve spring seats for proper installed spring height and spring cup/seat fitment. Cutter bodies and pilots are interchangeable, Hardened pilots fit all 3/8 and ½ hand drills.
Pilots:
9025: Fits valve guides with 5/16 - 8mm valves, EVO & TC up to 2004, EVO Sportster 86-up
9026: Fits valve guides with 7mm valves, TC 2005 and newer
9027: Fits valve guides with 3/8 valves, Pan & Shovel 1948-1983
9024: Fits valve guides with 6mm valves, M8 17 and newer
9028: Fits valve guides with 11/32 valves
Spring Seat Cutters:
9023: Cutter cuts Spring Seat .550 ID x 1.180 OD - Fits M8 cylinder heads
9020: Cutter cuts Spring Seat .625 ID x 1.570 OD
9021: Cutter cuts Spring Seat .625 ID x 1.635 OD
9022: Cutter cuts Spring Seat .625 ID x 1.750 OD
Valve Guide OD Cutters
9031: Valve guide cutter, cuts guide OD to .420 for use with Feuling valve seals #1075 (EVO, XL, T/C 99-04 with 5/16 valves)
9032: Valve guide cutter, cuts guide OD to .500 for use with Feuling valve seals #1078
9033: Valve guide cutter, cuts guide OD to .530 for use with Feuling valve seals #1077 (SE T/C heads)
FITS:
Pilot Fits valve guides with 6mm valves, M8 17 and newer
- Machine valve spring seats for proper installed spring height and spring cup fitment
- Cutter bodies and pilots are interchangeable
- Hardened pilots fit all 3/8 and hand drills
- For valve guides with 6 mm valves
Fitment Guide
| 2024 | Harley-Davidson | FLI Hydra-Glide Revival | - | - |
| 2023-2024 | Harley-Davidson | FXBR Breakout 117 | - | - |
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King | - | - |
| 2022-2024 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022-2024 | Harley-Davidson | FXLRST Low Rider ST 117 | - | - |
| 2022-2023 | Harley-Davidson | FLHXST Street Glide ST | - | - |
| 2022-2023 | Harley-Davidson | FLTRXST Road Glide ST | - | - |
| 2022 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2022 | Harley-Davidson | FLTRKSE CVO Road Glide Limited | - | - |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 | - | - |
| 2021-2024 | Harley-Davidson | FXBBS Street Bob 114 | - | - |
| 2021 | Harley-Davidson | FLH Electra Glide Revival | - | - |
| 2020-2024 | Harley-Davidson | FLTRK Road Glide Limited | - | - |
| 2020-2024 | Harley-Davidson | FXST Softail Standard 107 | - | - |
| 2020-2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2019-2022 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 | - | - |
| 2018-2024 | Harley-Davidson | FLHCS Heritage Classic 114 | - | - |
| 2018-2024 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2022 | Harley-Davidson | FLTRXSE CVO Road Glide | - | - |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 | - | - |
| 2018-2021 | Harley-Davidson | FLHC Heritage Classic 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSB Sport Glide 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSL Softail Slim 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBB Street Bob 107 | - | - |
| 2018-2020 | Harley-Davidson | FXLR Low Rider 107 | - | - |
| 2018-2020 | Harley-Davidson | FLDE Deluxe 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2018-2019 | Harley-Davidson | FXFB Fat Bob 107 | - | - |
| 2018-2019 | Harley-Davidson | FLFB Fat Boy 107 | - | - |
| 2018-2019 | Harley-Davidson | FXBR Breakout 107 | - | - |
| 2017-2024 | Harley-Davidson | FLHRXS Road King Special | - | - |
| 2017-2024 | Harley-Davidson | FLHTK Ultra Limited | - | - |
| 2017-2024 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 2017-2024 | Harley-Davidson | Road King Police FLHP | - | - |
| 2017-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLHX Street Glide | - | - |
| 2017-2023 | Harley-Davidson | FLTRX Road Glide | - | - |
| 2017-2022 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | - | - |
| 2017-2022 | Harley-Davidson | FLRT Freewheeler | - | - |
| 2017-2022 | Harley-Davidson | FLHR Road King | - | - |
| 2017-2022 | Harley-Davidson | FLHXSE CVO Street Glide | - | - |
| 2017-2021 | Harley-Davidson | FLHTKSE CVO Limited | - | - |
| 2017-2019 | Harley-Davidson | FLHTKL Ultra Limited Low | - | - |
| 2017-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic | - | - |
| 2017-2019 | Harley-Davidson | FLTRU Road Glide Ultra | - | - |
Specs
| PRODUCT NAME | VALVE GUIDE TOOL |
| COLOR/FINISH | SILVER |
| UNITS | EACH |
| RIDING STYLE | STREET |
